Propeller Drive Pin – Fits Johnson Evinrude 10-25 HP (Replaces 307949, 765545)

$9.67

Shipping calculated at checkout.

Propeller Drive Pin – Fits Johnson Evinrude 10-25 HP (Replaces 307949, 765545) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Propeller Drive Pin – Fits Johnson Evinrude 10-25 HP (Replaces 307949, 765545) is designed for Johnson and Evinrude outboard motors in the 10-25 HP range manufactured from 1968 to 1979. The pin connects the propeller to the drive shaft, and is engineered to shear under excessive load to protect the engine and drivetrain from damage.

It serves as a direct replacement for Johnson/Evinrude part numbers 307949, 0307949, 765545, and 0765545.

Engineered for press-fit installation into the propeller hub.
Made of corrosion-resistant stainless steel suitable for saltwater marine environments.
Features higher strength and hardness than many original OEM parts.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Superseded By	Notes
Johnson/Evinrude	765545, 0765545	307949, 0307949	Original part number.
Johnson/Evinrude	307949, 0307949	—	Current replacement part.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This part is compatible with select Johnson & Evinrude outboard motors.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Johnson	10 HP	10	2-Stroke	1968–1979	307949, 765545	765545 superseded by 307949
Johnson	18 HP	18	2-Stroke	1968–1979	307949, 765545	765545 superseded by 307949
Johnson	20 HP	20	2-Stroke	1968–1979	307949, 765545	765545 superseded by 307949
Johnson	25 HP	25	2-Stroke	1968–1979	307949, 765545	765545 superseded by 307949
Johnson	FDL-22A	20	2-Stroke	1968	307949, 765545	765545 superseded by 307949
Johnson	FD-22M	20	2-Stroke	1968	307949, 765545	765545 superseded by 307949
Johnson	18102S, 18103S	18	2-Stroke	1971	307949, 765545	765545 superseded by 307949
Johnson	20RL71S	20	2-Stroke	1971	307949, 765545	765545 superseded by 307949
Johnson	25R71S	25	2-Stroke	1971	307949, 765545	765545 superseded by 307949
Johnson	18202R, 18203R	18	2-Stroke	1972	307949, 765545	765545 superseded by 307949
Johnson	20RL72R	20	2-Stroke	1972	307949, 765545	765545 superseded by 307949
Johnson	25E72R, 25RL72R, 25202R, 25252R	25	2-Stroke	1972	307949, 765545	765545 superseded by 307949
Johnson	25R73A, 25E73A, 25302A, 25303A, 25352A	25	2-Stroke	1973	307949, 765545	765545 superseded by 307949
Johnson	25EL74M, 25R74M, 25402M, 25452M	25	2-Stroke	1974	307949, 765545	765545 superseded by 307949
Johnson	25EL75B, 25502B, 25503B, 25552B, 25553B	25	2-Stroke	1975	307949, 765545	765545 superseded by 307949
Johnson	25E76E, 25EL76E, 25RL76E, 25602E, 25652E	25	2-Stroke	1976	307949, 765545	765545 superseded by 307949

Technical Specs

Product Type: Propeller Drive/Shear Pin
Installation: Press-fit
Connection: Press-fit into propeller hub
Housing Material: Stainless steel
Housing Color: Silver/metallic
Fitting Type: Cylindrical drive pin
Operating Temperature: Marine environment (saltwater compatible)
Warranty: 90 days (aftermarket); OEM warranty varies by manufacturer
Other Attributes: Higher strength and hardness than original parts; corrosion and rust resistant

What’s in the Box

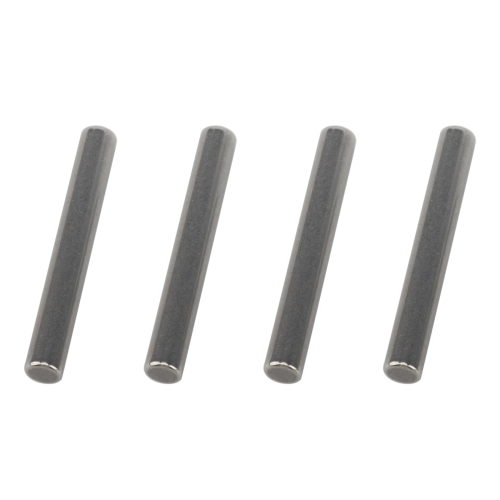

4 x Propeller Drive Pins (Replaces 307949, 765545)

Installation Notes

For safety, disconnect the spark plug wires and ensure the engine is in neutral.
Remove the propeller's cotter pin, then unscrew the propeller nut and washer.
Slide the propeller off the propeller shaft. You may need a prop puller if it is tight.
Remove the old, sheared pin from the propeller shaft.
Clean any debris from the propeller shaft and the inside of the propeller hub.
Slide the new propeller onto the shaft, aligning the pinhole.
Insert the new shear pin through the propeller hub and shaft.
Re-install the propeller washer and nut, tightening to the manufacturer's specified torque.
Secure the nut by inserting a new cotter pin and bending its ends.
Reconnect the spark plug wires. It's always a good practice to carry spare pins on board.

Troubleshooting & FAQ

How do I know if this drive pin will fit my motor?

This pin is designed for Johnson and Evinrude 10-25 HP outboards from 1968–1979. Please check the detailed Engine & Model Compatibility table on this page to confirm your specific model and year are listed before purchasing.

What is the function of a propeller shear pin?

A shear pin is a safety device that connects the propeller to the driveshaft. It is designed to break or "shear" if the propeller strikes an underwater object, protecting the more expensive engine gears and drivetrain components from damage.

Why would a shear pin break during normal operation?

Shear pins typically break from impact with a submerged object like a rock, log, or sandbar. They can also fail due to propeller cavitation, an unbalanced propeller, or metal fatigue from age and corrosion. Using an incorrectly sized or rated pin can also cause premature failure.

How can I tell if my shear pin needs replacing?

If your engine runs but the boat doesn't move (or moves very slowly), the shear pin has likely broken. You should visually inspect the pin if you suspect an impact or notice unusual vibration. Always replace a sheared pin; do not reuse it.

Is this aftermarket pin different from the original OEM part?

This part is engineered to meet or exceed original specifications. It is made from high-quality stainless steel, offering enhanced strength and resistance to corrosion compared to some original parts, ensuring reliable performance in marine conditions.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
