Impeller Repair Kit – Fits Johnson, Jabsco, Indmar, Yanmar (Replace...
Product Details
This aftermarket Impeller Repair Kit – Fits Johnson, Jabsco, Indmar, Yanmar (Replaces 09-812B-1, 17935-0001-P) is designed for a range of V8 marine engines. It is commonly used in Johnson F6B-9 series pumps and Indmar Monsoon, Hammerhead, and Raptor models (320–400HP) found in Supra, Moomba, Mastercraft, and Tige boats from approximately 1986 to the present.
It serves as a direct replacement for multiple OEM and aftermarket part numbers, including Johnson 09-812B-1, Jabsco 17935-0001-P, Sierra 18-3306, Indmar S685007, and Yanmar 119773-42600.
- Engineered for direct-fit installation in raw sea water pumps.
- Constructed from durable neoprene with a solid brass insert.
- Kit includes essential gasket and O-ring for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Johnson | 09-812B-1 / 09-812B |
| Jabsco | 17935-0001-P |
| Sierra | 18-3306 |
| Indmar | S685007 / 685007 |
| Yanmar | 119773-42600 / 119773-42600-01 |
| Pleasurecraft | RP061018 |
| Mallory | 9-45704 |
| Yamaha | 6TA-12457-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Indmar Engines: Fits a wide range of Monsoon, Hammerhead, and Raptor models from 1986 to present, commonly found in Supra, Moomba, Mastercraft, and Tige boats.
Johnson Pumps: Compatible with F6B-9 series raw water pumps and specific derivative models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Indmar | Monsoon | 320 | 4-Stroke | 1986–Present | S685007/685007 | For raw sea water pumps |
| Indmar | Monsoon | 325 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Monsoon | 330 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Monsoon | 335 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Monsoon | 340 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Monsoon | 350 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Hammerhead | 365 (Callaway) | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Hammerhead | 380 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Hammerhead | 383 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Hammerhead | 400 | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | Raptor | 400 | 4-Stroke | 1986–Present | S685007/685007 | Ford-based engine |
| Indmar | Raptor | 450 | 4-Stroke | 1986–Present | S685007/685007 | Ford-based engine |
| Indmar | Raptor | 575 | 4-Stroke | 1986–Present | S685007/685007 | Ford-based engine |
| Indmar | LCR (Carbureted) | Various | 4-Stroke | 1986–Present | S685007/685007 | |
| Indmar | 8.1L | Various | 4-Stroke | 1986–Present | S685007/685007 | |
| Supra | Various w/Indmar | 320-400 | 4-Stroke | 1986–Present | S685007/685007 | All models with Indmar engines |
| Moomba | Various w/Indmar | 320-400 | 4-Stroke | 1986–Present | S685007/685007 | All models with Indmar engines |
| Mastercraft | Various w/Indmar | 320-400 | 4-Stroke | 1986–Present | S685007/685007 | All models with Indmar engines |
| Tige | Various w/Indmar | 320-400 | 4-Stroke | 1986–Present | S685007/685007 | All models with Indmar engines |
| Axis | Various w/Challenger | 5.7L | 4-Stroke | 1986–Present | S685007/685007 | Challenger 5.7L engines |
| Malibu | M-5, M-6 | Various | 4-Stroke | 2019–2022 | S685007/685007 | If impeller housing has been converted to new design |
| Johnson | F6B-9 | N/A | N/A | 1986–Present | 09-812B-1/09-812B | Raw water pump model |
| Johnson | 10-24232-1 | N/A | N/A | 1986–Present | 09-812B-1/09-812B | |
| Johnson | 10-24915-01 | N/A | N/A | 1986–Present | 09-812B-1/09-812B |
Technical Specs
- Product Type
- Raw Sea Water Pump Impeller Kit
- Installation
- Direct replacement
- Material
- Neoprene with Brass Insert
- Shaft Connection
- 12-spline Drive, 5/8" (16mm) Shaft
- Dimensions
- Diameter: 2-1/4" (57.1mm), Width: 1-15/16" (49.2mm)
- Number of Blades
- 12
- Color
- Black
- Warranty
- Varies by manufacturer (typically 1 year)

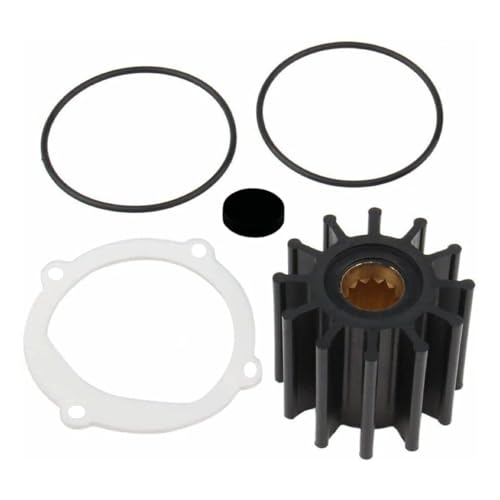

What’s in the Box
- 1 x Impeller (Neoprene + Brass)
- 1 x O-Ring
- 1 x Gasket
Installation Notes
- Disconnect the boat's battery to prevent accidental starts.
- Close the raw water intake seacock.
- Place absorbent pads under the pump to catch any spilled coolant or water.
- Remove the screws from the raw water pump cover plate.
- Carefully pry off the cover. Note the orientation of the impeller blades.
- Remove the old impeller using needle-nose pliers or impeller puller tools.
- Clean the inside of the pump housing, removing any old debris or impeller fragments.
- Lightly lubricate the new impeller and the inside of the housing with a marine-safe lubricant.
- Install the new impeller, bending the blades in the same direction as the old one.
- Install the new gasket or O-ring on the cover plate.
- Re-secure the cover plate with the screws, tightening them in a star pattern.
- Open the seacock, reconnect the battery, and start the engine to check for leaks and proper water flow.
Troubleshooting & FAQ
How do I confirm this impeller fits my specific engine?
The best way to confirm fitment is to match your existing part number to one listed in our Part Number Matrix. Additionally, check your engine model and year against the compatibility table. If you are unsure, inspect your old impeller for dimensions (2-1/4" D x 1-15/16" W) and the 12-spline shaft design.
What are common signs of a failing impeller?
Symptoms of a worn or damaged impeller include engine overheating at idle or low speeds, a reduced stream of water from the exhaust, and visible cracks or missing blades on the impeller itself upon inspection. It is a critical component for engine cooling.
How often should I replace my raw water pump impeller?
As a general rule, impellers should be inspected annually and replaced every 1-2 years or every 100-200 operating hours, whichever comes first. Usage in saltwater or silty/sandy conditions may require more frequent replacement.
My boat is overheating. Could this impeller fix it?
An overheating engine is a classic sign of a failed raw water pump impeller. While other issues can cause overheating (like a clogged intake or thermostat failure), the impeller is a common failure point and a good place to start your diagnosis.
Is this kit difficult to install myself?
For those with basic mechanical skills and tools, replacing an impeller is a straightforward maintenance task that typically takes under an hour. However, pump access can be tight on some boats. If you are not comfortable performing the work, we recommend professional installation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
