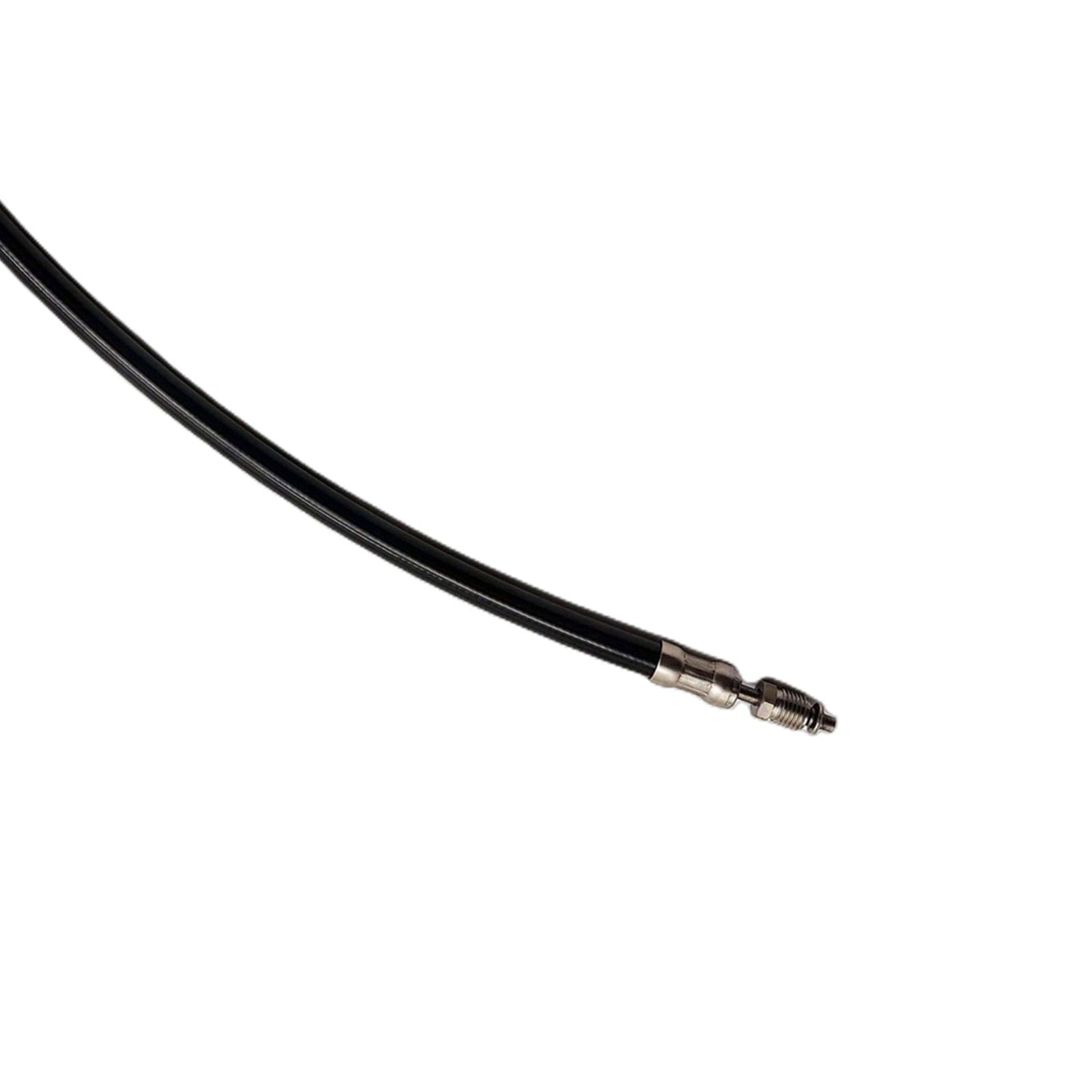

Hydraulic Power Trim Hose – OMC Cobra King Cobra & Volvo Penta SX Starboard Up

Product Details

This aftermarket Hydraulic Power Trim Hose is the starboard-side “up” hose for OMC Cobra and Volvo Penta SX stern drives. It connects the trim manifold to the cylinder and carries hydraulic fluid for raising the drive.

The company catalog identifies this hose for Volvo Penta SX drives and OMC King Cobra applications. Volvo Penta engine combinations listed for the SX application include 3.0L GS and GL, 4.3L GL, GS and GI, 5.0L FL and FI, 5.7L GL and GI, and 5.8L FL, FI and FSI configurations. Confirm the drive model, hose position and original part before ordering.

• Function: Starboard-side “up” trim hose
• Connection: Manifold to trim cylinder
• Application: OMC Cobra and King Cobra stern drives; Volvo Penta SX drives
• Contents: One hydraulic power trim hose

Part Number Matrix

The following manufacturer and aftermarket references are associated with this hose. Match the number and application to your original component before installation.

Drive Compatibility

This is a position-specific hose. It is intended for the starboard “up” circuit on the following stern-drive applications:

Fitment depends on the exact stern-drive assembly and hose position. The application information above does not establish compatibility with every engine year, serial range or drive configuration.

Technical Specifications

Product Type

Hydraulic power trim hose

Function

Starboard-side “up” circuit

Connection

Manifold to trim cylinder

Application

OMC Cobra/King Cobra and Volvo Penta SX stern drives

Quantity

1 hose

Construction

Aftermarket replacement component

What’s in the Box

• 1 x Hydraulic Power Trim Hose

O-rings, seals, fittings and other associated hardware are not listed as included. Reuse or replace hardware only when appropriate for the specific installation.

Installation Notes

1. Disconnect the battery and secure the boat and drive according to the service manual.
2. Relieve hydraulic pressure before loosening any connection.
3. Place absorbent material beneath the manifold and cylinder connections to collect fluid.
4. Photograph or note the original hose routing and identify the starboard “up” connection.
5. Remove the old hose carefully and inspect the mating ports and sealing surfaces.
6. Install the replacement hose without twisting, kinking or forcing the fittings.
7. Tighten the connections using the stern-drive manufacturer’s service specifications.
8. Top up the hydraulic reservoir with the specified fluid and bleed the system as required.
9. Cycle the trim system slowly and check for leaks before returning the boat to service.

Maintenance & Troubleshooting

Inspect the hose and nearby connections regularly for hydraulic-fluid leakage, abrasion, cracking, blistering, corrosion or damage from improper routing. A slow or spongy trim response, failure to hold the drive position or visible fluid loss may indicate a hose or system problem. Diagnose the complete trim system before replacing parts.

Frequently Asked Questions

Safety & Important Information

• Verify the original hose position, routing, fittings and reference number before purchase.
• Do not rely on engine displacement alone; the exact stern-drive assembly determines fitment.
• Hydraulic trim systems can retain pressure. Relieve pressure and follow the manufacturer’s service procedure.
• Professional installation is recommended when working on hydraulic trim equipment.
• Do not operate the boat if the trim system leaks or cannot safely hold the drive position.
