Product Details

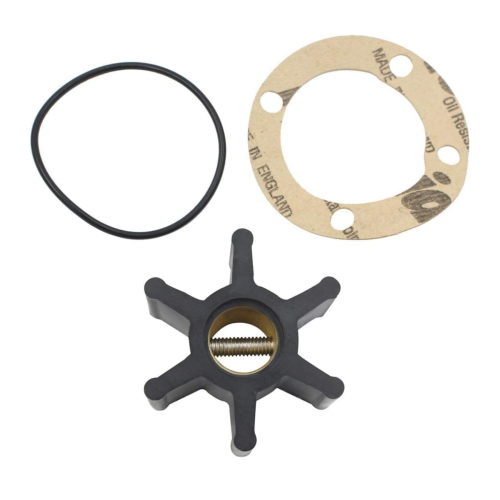

This high-quality Flexible Impeller – Fits JABSCO 22405-0001 Water Pumps is designed for marine engines requiring a neoprene, 6-blade impeller for raw water cooling systems. It is engineered for pumps featuring a 12mm (15/32") shaft diameter with a slotted pin drive configuration, covering a wide range of Jabsco, Johnson, Volvo Penta, Westerbeke, and Onan marine engines and generators from the 1960s through the 2000s.
This part serves as a direct cross-reference for multiple OEM and aftermarket part numbers, including Jabsco 22405-0001-P, Johnson 09-808B, and Volvo Penta 3586496.
- Engineered for direct replacement installation.
- Durable neoprene and brass construction for raw water environments.
- Designed for reliable performance in marine cooling systems.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket brands.
| Brand | Part Number | Notes |
|---|---|---|
| Jabsco | 22405-0001-P | |
| Johnson | 09-808B | |
| Johnson | 09-808B-1 | |
| Volvo Penta | 3586496 | |
| Volvo Penta | 875583-7 | |
| Volvo Penta | 833995 | |
| Volvo Penta | 21951342 | |
| Westerbeke | 032620 | |
| Westerbeke | 33032 | |
| Onan | 132-0310 | |
| Sierra Marine | 18-3076 | Aftermarket replacement |
| CEF | 500121 | |
| Mallory | 9-45709 | |
| JMP | 7000-01K | |
| DJ PUMP | 08-31-0601 | |
| Ancor | 50021 |
Engine & Model Compatibility
Confirm your engine model or pump number in the tables below.
For Volvo Penta Engines: This impeller fits a wide range of diesel inboards, saildrives, and transmissions. Please verify your model and original part number.
For Johnson & Jabsco Pumps: This impeller fits several F-series raw water pumps and other models as listed. Verify your pump model to ensure correct fitment.
| Brand | Model / Application | OEM Part No. | Notes |
|---|---|---|---|
| Volvo Penta | 120S-A, 120S-B, 120SC, 120S-D, 120S-E | 3586496, 875583-7 | Saildrive |
| Volvo Penta | 2001, 2001AG, 2001B, 2001BG, 2001R | 875583-7, 3586496 | Small Diesel Inboard |
| Volvo Penta | 2002, 2002AG, 2002B, 2002BG, 2002D | 875583-7, 3586496 | Small Diesel Inboard |
| Volvo Penta | 2003, 2003AG, 2003B, 2003BG, 2003D | 875583-7, 3586496 | Small Diesel Inboard. SOLAS variants included. |
| Volvo Penta | 2003R, 2003T, 2003TB | 875583-7, 3586496 | Small Diesel Inboard. SOLAS variants included. |
| Volvo Penta | AQD2B, MD1B, MD2B, MD3B, MD5A, MD5B, MD5C | 875583-7, 3586496 | Diesel Inboard |
| Volvo Penta | MD6, MD6A, MD6B, MD7, MD7A, MD7B | 875583-7, 3586496 | Diesel Inboard |
| Volvo Penta | MD11, MD11C, MD11D, MD17, MD17C, MD17D | 875583-7, 3586496 | Diesel Inboard |
| Volvo Penta | MB10A | 875583-7, 3586496 | Inboard |
| Volvo Penta | MS2A/B/L/V Series Transmissions | 875583-7, 3586496 | Transmission Models |
| Volvo Penta | Pump Model 840557 | 875583-7, 3586496 | Various Applications |
| Johnson | F35B (New Version) | 09-808B, 09-808B-1, 09-45589 | Raw Water Pump, 3/8" ports |
| Johnson | F35B-8007 | 09-808B, 10-35038-5E | Raw Water Pump, 3/8" ports, 12mm shaft |
| Johnson | F35B-8007 | 09-808B, 10-35038-4 | Variant with 3/8" shaft |
| Johnson | F35B-8027, K34A, K34M | 09-808B | Raw Water Pump |
| Jabsco | 52010-2001 / 52010-2051 | 22405-0001, 22405-0001-P | Raw Water Pump |
| Jabsco | 29300-2201C | 22405-0001, 22405-0001-P | Raw Water Pump |
Technical Specs
- Product Type
- Flexible Water Pump Impeller
- Installation
- Direct Replacement
- Material
- Neoprene with Brass Insert
- Drive Type
- Slotted Shaft Pin Drive
- Number of Blades
- 6
- Shaft Diameter
- 12mm (15/32")
- External Diameter
- 40mm (1-9/16")
- Height/Width
- 19mm (15/32")
- Color
- Black
- Warranty
- 1 Year (Candy Marine)
What’s in the Box
- 1 x Flexible Water Pump Impeller with Brass Insert
Installation Notes
- Shut off the engine and allow it to cool completely. Disconnect the boat's battery.
- Close the raw water intake seacock to prevent water from entering the vessel.
- Place an absorbent towel under the pump to catch any spilled coolant or water.
- Remove the screws holding the pump's cover plate. Keep them safe.
- Carefully pry off the cover plate. If it’s stuck, tap it gently; avoid using a screwdriver, which can damage the sealing surfaces.
- Note the rotational direction of the existing impeller blades before removal. Use impeller pullers or two screwdrivers to carefully lever the old impeller out.
- Clean the inside of the pump housing and the cover plate, removing any old gasket material or debris.
- Lubricate the new impeller and the inside of the pump housing with water-resistant grease or liquid soap.
- Install the new impeller by pushing it into the housing while twisting it in the direction of engine rotation to correctly bend the blades.
- Install a new gasket (not included) if required, and securely fasten the cover plate.
- Re-open the raw water seacock. Reconnect the battery.
- Start the engine and immediately check the pump and exhaust for proper water flow and any leaks.
Troubleshooting & FAQ
How do I know if this impeller fits my engine?
First, check if your existing part number is listed in our Part Number Matrix. Second, find your engine or pump model in the compatibility tables. Finally, you must verify that the physical specifications match your old part: a 12mm (15/32") shaft diameter and a slotted pin drive.
What are the signs of a failing impeller?
Common signs of a worn or damaged impeller include engine temperatures rising above normal, a noticeable reduction in water flow from the exhaust outlet, or visible cracks, stiffness, or missing blades during a visual inspection.
How often should I replace my impeller?
As a general rule, impellers should be inspected annually and replaced every 1-2 years as preventative maintenance. However, replacement frequency depends on hours of use, water conditions (sandy or silty water causes faster wear), and whether the pump has been run dry.
Does this impeller include a gasket or O-ring?
This product listing is for the impeller only. Gaskets, O-rings, and pump cover screws are not included and must be purchased separately if needed for your specific pump model.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it is batch-inspected for consistency and quality.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options will appear at checkout where available.
Warranty & returns
This part is covered by a 1-year warranty against manufacturing defects under normal use. If any issues arise, contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
