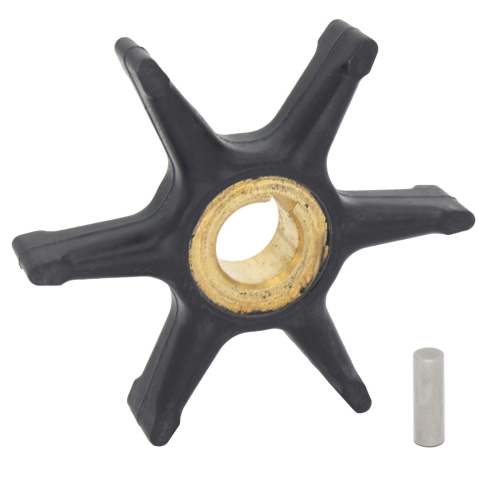

Water Pump Impeller – Fits Johnson/Evinrude 10-35 HP (Replaces 375638, 775518)

Product Details

This Water Pump Impeller – Fits Johnson/Evinrude 10-35 HP (Replaces 375638, 775518) is a direct replacement component engineered for reliable performance in a wide range of Johnson and Evinrude 2-stroke outboard engines from 10 HP to 35 HP, covering models made between 1949 and 1978.

It directly interchanges with Johnson/Evinrude parts 375638, 775518, and 777829, as well as Sierra 18-3002, GLM 89650, and Mallory 9-45215. Note: Mercury 802315 is a cross-reference only; fit on Mercury models is not guaranteed.

• Engineered for direct, hassle-free installation.
• Constructed with a durable brass hub and marine-grade neoprene for longevity.
• Includes one water pump impeller for a complete replacement.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller fits a wide variety of 2-stroke Johnson and Evinrude outboards from 10 HP to 35 HP, manufactured between 1949 and 1978. Please check your specific model and year in this list to ensure proper fitment.

Technical Specs

Product Type

Water Pump Impeller

Installation

Direct Replacement

Material

Marine-Grade Neoprene with Brass Hub

Number of Blades

6

External Diameter

69.0–69.37 mm (2.72–2.73")

Internal Shaft Diameter

12.68–12.8 mm (0.5")

Height

13.08–13.30 mm (0.515–0.52")

Weight

37–42 g (1.3–1.48 oz)

What’s in the Box

• 1 x Water Pump Impeller (Replaces 375638, 775518)

Installation Notes

Follow your outboard's service manual for detailed instructions. A general replacement guide is below:

1. Disconnect the spark plug wires and shift the engine into neutral.
2. Place a drain pan under the lower unit and remove the gear case drain and vent screws to drain the gear lube.
3. Remove the bolts connecting the lower unit (gear case) to the engine's upper section.
4. Carefully lower and remove the gear case assembly. The driveshaft will disengage from the powerhead.
5. Unscrew and remove the water pump housing cover.
6. Note the rotational direction of the existing impeller blades before sliding it off the driveshaft. Remove the drive key.
7. Clean the housing and wear plate surfaces of any old gasket material or debris.
8. Install the new gasket, wear plate, and drive key. Lightly grease the driveshaft.
9. Slide the new impeller onto the shaft while turning it in the correct rotational direction (typically clockwise) to seat the blades.
10. Apply a thin layer of marine grease or soap to the inside of the pump housing and reinstall it.
11. Reattach the gear case to the upper unit, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
12. Reinstall all bolts, refill the gear case with fresh lube, and reconnect spark plug wires before testing.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
