Water Pump Impeller – Fits Johnson/Evinrude 2–4 HP (Replaces 043393...
Product Details

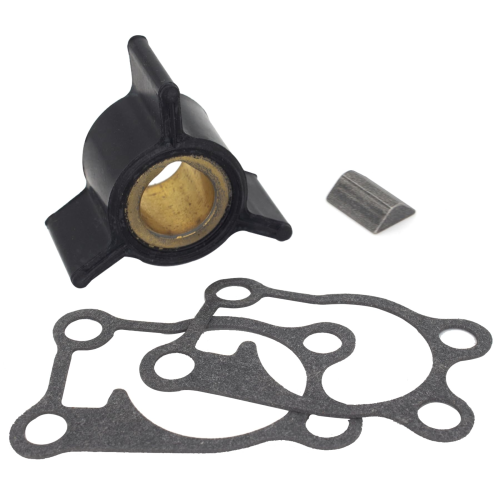

This high-performance Water Pump Impeller is designed for Johnson/Evinrude 2–4 HP, 2-Stroke outboards manufactured between 1987 and 2006. It is compatible with a range of engines including 2 HP (2001), 2.5 HP (1987–1988), 3 HP (1989–1997), 3.5 HP (2002–2006), and 4 HP (1987–2006).
This part serves as a direct aftermarket replacement for Johnson/Evinrude part numbers 0433935, 0396852, and 0767407, and interchanges with Sierra Marine 18-3015.
- Engineered for direct OEM replacement fitment.
- Constructed from durable neoprene rubber with a metal alloy hub for marine environments.
- Installs via a direct shaft fit using a woodruff key.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Johnson/Evinrude | 0433935 / 0396852 / 0767407 |
| Sierra Marine | 18-3015 |
Engine & Model Compatibility
Confirm your engine model and year in the table below to ensure correct fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Johnson/Evinrude | E3RCUA, J3RCUA | 2.5 | 2-Stroke | 1987 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3RCCM, J3RCCM | 2.5 | 2-Stroke | 1988 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E4BRHCCS, E4BRHLCCS | 4 | 2-Stroke | 1988 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3BRCEC, J3BRCEC | 3 | 2-Stroke | 1989 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3BRESR, J3BRESR | 3 | 2-Stroke | 1990 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3REIA, J3REIA | 3 | 2-Stroke | 1991 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3RENM, J3RENM | 3 | 2-Stroke | 1992 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3RETB, J3RETB | 3 | 2-Stroke | 1993 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3RERE, J3RERE | 3 | 2-Stroke | 1994 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3REOD, J3REOD | 3 | 2-Stroke | 1995 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | BE3REDS, BJ3REDS, SJ3REDS | 3 | 2-Stroke | 1996 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | BE4BREDS, BE4BRLEDS, BE4RDHEDS, BE4RDHLEDS, BE4REDS, BE4RLEDS, BJ4BREDS, BJ4BRLEDS, BJ4RDHEDS, BJ4RDHLEDS, BJ4REDS, BJ4RLEDS | 4 | 2-Stroke | 1996 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3REUC, J3REUC | 3 | 2-Stroke | 1997 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | BE4BREUC, BE4BRLEUC, BJ4BREUC, BJ4BRLEUC | 4 | 2-Stroke | 1997 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E4BRECRJ, E4BRLECRJ | 4 | 2-Stroke | 1998 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E2WRSIR, J2RTSIA, J2RTVSIA, J2WRSIR | 2 | 2-Stroke | 2001 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | E3ROSIA, E3WRSIR, J3RTLSIA, J3RTSIA, J3RTVSIA, J3WRSIR | 3 | 2-Stroke | 2001 | 0433935/0396852/0767407 | |
| Johnson/Evinrude | J3RSNF, J3RSTB, J3RSTF, J3RSRE, J3RSOD, J3RSDE | 3.5 | 2-Stroke | 2002–2006 | 0433935/0396852/0767407 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM replacement
- Fuel Type
- 2-Stroke marine
- Housing Material
- Neoprene rubber with metal alloy hub
- Dimensions
- Shaft Diameter: 11.1–11.2 mm (0.44 in), Overall Diameter: 34.2–34.5 mm (1.36 in), Height: 17.7–17.8 mm (0.70 in)
- Weight
- 24 g (0.7 oz)
- Fitting Type
- Direct shaft fit with key
- Number of Blades
- 3
- Other Technical Attributes
- Requires use of woodruff key (sometimes included, verify with specific product)
What’s in the Box
- 1 x Water Pump Impeller
- 1 x Impeller Key (Note: package contents may vary)
Installation Notes
A safe, generic, model-agnostic installation sequence is as follows:
- Disconnect the spark plug leads and the battery to prevent accidental starting.
- Place the outboard gear shift into neutral.
- Locate and remove the bolts securing the lower unit (gearcase) to the engine leg.
- Carefully separate the lower unit from the driveshaft housing. The driveshaft will come out with it.
- Unbolt and lift the water pump housing to expose the old impeller.
- Remove the old impeller and the woodruff key from the driveshaft. Clean any debris from the housing.
- Install the new woodruff key and slide the new impeller onto the shaft, rotating it in the direction of engine operation to seat the blades.
- Re-install the water pump housing, ensuring a proper seal.
- Re-attach the lower unit to the engine, aligning the driveshaft splines and water tube. Secure with bolts.
- Reconnect the battery and spark plugs, and test operation in water, ensuring a steady stream from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if my impeller needs replacing?
Common signs of a failing impeller include the engine overheating, a weak or intermittent water stream from the "tell-tale" outlet, or finding broken rubber blades in the cooling passages. Visual inspection may also reveal cracked, stiff, or permanently bent blades.
What is the recommended replacement interval?
For optimal performance and to prevent overheating, it is recommended to replace the water pump impeller every 100 hours of operation or at least once per boating season, particularly when de-winterizing your engine.
Does this impeller come with the woodruff key?
Package contents can vary between suppliers. While the impeller key is often included, it is not guaranteed. Please verify the contents of your specific order upon arrival.
How can I be sure this fits my exact engine model?
Refer to the comprehensive "Engine & Model Compatibility" table in this listing. Match your engine's brand, model number, horsepower, and year range to a corresponding entry to confirm fitment before purchasing.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
