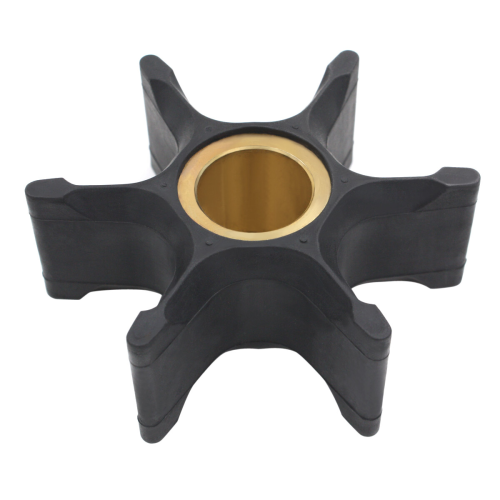

Water Pump Impeller – Fits Johnson/Evinrude 65-300 HP (Replaces 5001593, 395864, 397131)

Product Details

This Water Pump Impeller is a direct-fit replacement for Johnson/Evinrude V4, V6 & V8 outboard engines from 65 to 300 HP, covering models from 1979 through 2001, including many E-TEC models. It's engineered for reliable cooling performance in both saltwater and freshwater environments.

It serves as a direct interchange for several OEM and aftermarket part numbers, including Sierra 18-3059, GLM 89570, Mallory 9-45206, and multiple Johnson/Evinrude references like 5001593.

• Installs as a direct replacement for the original part.
• Constructed from durable neoprene with a solid brass hub for longevity.
• Package includes one impeller and the necessary impeller key.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

This impeller fits a wide range of Johnson/Evinrude V4, V6, and V8 outboard engines. Confirm your engine model and year in the table below to ensure accurate fitment.

Technical Specs

Product Type

Water Pump Impeller

Installation

Direct replacement

Material

Neoprene with Brass Hub

Blade Configuration

6 blades

Dimensions

89 mm × 31.9 mm (3.50 in × 1.25 in)

Hub Shaft Diameter

22.4 mm (0.88 in)

Weight

0.116 kg (0.34 lbs)

Warranty

Limited Lifetime (Sierra)

Manufacturing Origin

Italy

What’s in the Box

• 1 x Impeller (Replaces OMC/Johnson/Evinrude 5001593, 389289, 391538, 395864, 397131, 435821)
• 1 x Impeller Key (Replaces Sierra 18-3299)

Installation Notes

1. Disconnect the negative battery cable for safety.
2. Remove the lower unit (gearcase) from the outboard engine.
3. Unbolt and remove the water pump housing to access the impeller.
4. Take note of the old impeller's blade orientation before removing it.
5. Clean any debris from the pump housing and inspect the housing and wear plate for scoring, cracks, or distortion.
6. Lightly coat the interior of the housing and the new impeller with marine grease.
7. Install the new impeller key into the driveshaft slot. Slide the new impeller onto the shaft while turning it clockwise to correctly orient the blades.
8. Reinstall the water pump housing, ensuring gaskets and seals are properly seated. Tighten bolts to the manufacturer's specified torque.
9. Reattach the lower unit to the engine.
10. Reconnect the battery. Before launching, use a flush attachment to supply water and verify that the engine is cooling properly by checking for a steady stream from the tell-tale outlet.
11. Always refer to your specific engine's official service manual for detailed instructions, diagrams, and torque values.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
