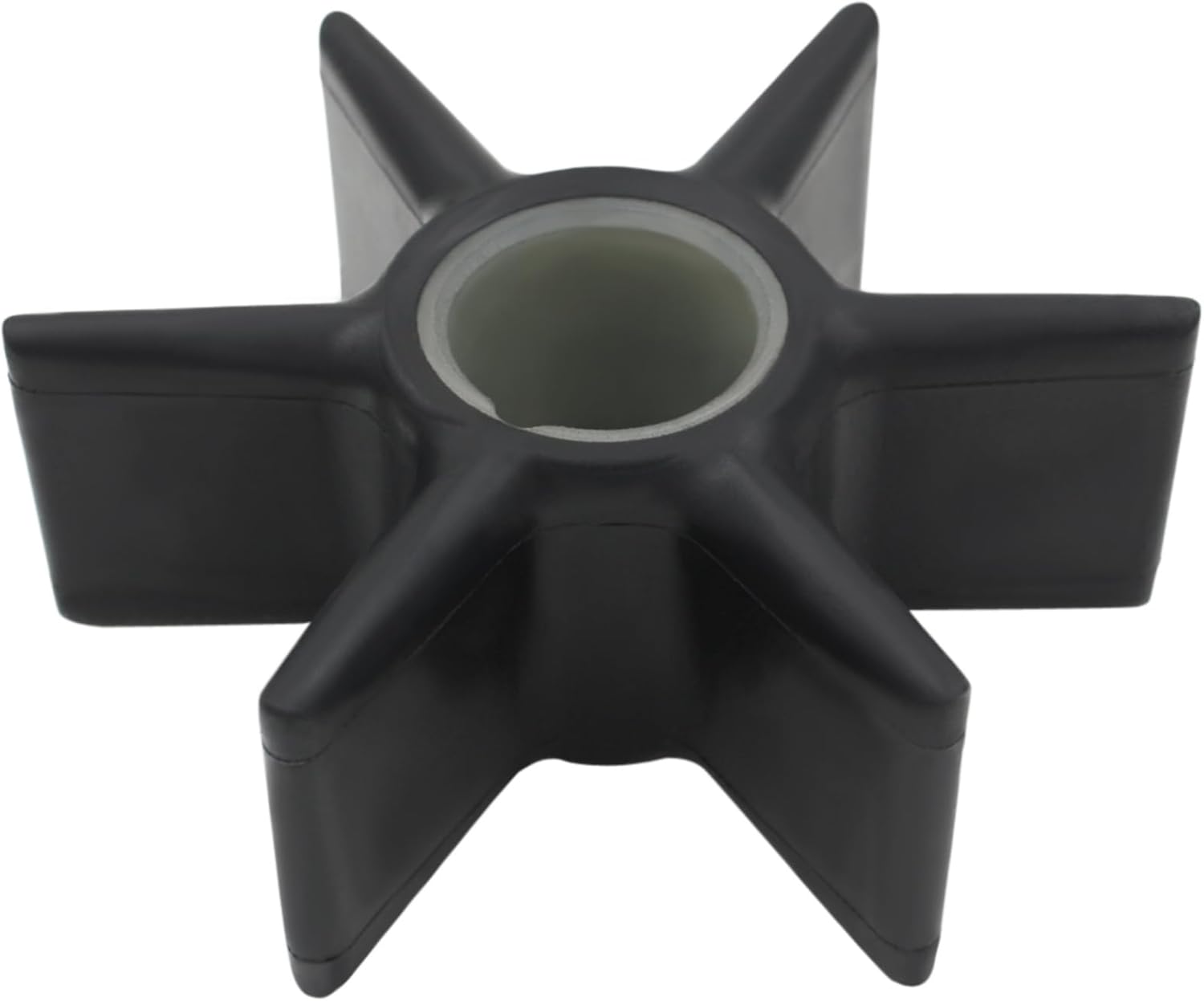

Water Pump Impeller Kit – Fits Honda, Mercury, Johnson/Evinrude 70–235 HP (Replaces 47-43026Q02, 19210-ZW1-003, 399289)

$25.50

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Honda, Mercury, Johnson/Evinrude 70–235 HP (Replaces 47-43026Q02, 19210-ZW1-003, 399289) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit – Fits Honda 70–90 HP Outboard Motors is a direct-fit replacement designed for reliable performance in a range of outboard engines. It is engineered for Honda 4-Stroke models (75–90 HP, 1997–1998), Mercury 2-Stroke outboards from 70–90 HP (serial number 0A996142 and newer), and select Johnson/Evinrude 2-Stroke engines from 90–235 HP (1981–1984).

This part provides a direct interchange for multiple OEM and aftermarket part numbers, including Mercury 47-43026Q02, Honda 19210-ZW1-003, Johnson/Evinrude 399289, and Sierra 18-3056.

Installation: Installs directly into the factory water pump housing.
Material: Made from durable neoprene rubber for longevity in marine environments.
Dimensions: 87.92 mm outer diameter, 22.25 mm hub diameter, 31.31 mm height.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury	47-43026Q02 / 47-430262Q02
Mercury/Chrysler	47-43026T2
Honda	19210-ZW1-003 / 19210-ZW1-303
Johnson/Evinrude	399289 / 391538
Sierra	18-3056
CEF	500301
Mallory	9-45037

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Honda models, this impeller fits select BF75 and BF90 engines from 1997–1998.

For Mercury models, compatibility covers various 70, 75, 80, and 90 HP 2-stroke outboards manufactured from serial number 0A996142 onwards.

For Johnson and Evinrude models, fitment includes a range of 2-stroke outboards from 90 HP up to 235 HP made between 1981 and 1984.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Honda	BF75AT	75	4-Stroke	1997	19210-ZW1-003
Honda	BF75AW	75	4-Stroke	1998	19210-ZW1-003
Honda	BF90AT	90	4-Stroke	1997	19210-ZW1-003
Honda	BF90AW	90	4-Stroke	1998	19210-ZW1-003
Mercury	Various	70	2-Stroke	SN 0A996142 onwards	47-43026Q02
Mercury	Various	75	2-Stroke	SN 0A996142 onwards	47-43026Q02
Mercury	Various	80	2-Stroke	SN 0A996142 onwards	47-43026Q02
Mercury	Various	90	2-Stroke	SN 0A996142 onwards	47-43026Q02
Johnson	J90	90	2-Stroke	1981–1983	399289/391538
Johnson	J115	115	2-Stroke	1981–1983	399289/391538
Johnson	J140	140	2-Stroke	1981–1983	399289/391538
Johnson	J150	150	2-Stroke	1981–1983	399289/391538
Johnson	J175	175	2-Stroke	1982–1983	399289/391538
Johnson	J200	200	2-Stroke	1982–1983	399289/391538
Evinrude	E90	90	2-Stroke	1981–1983	399289/391538
Evinrude	E115	115	2-Stroke	1981–1983	399289/391538
Evinrude	E140	140	2-Stroke	1981–1983	399289/391538
Evinrude	E150	150	2-Stroke	1982–1984	399289/391538
Evinrude	E175	175	2-Stroke	1982–1983	399289/391538
Evinrude	E200	200	2-Stroke	1982–1983	399289/391538
Evinrude	E235	235	2-Stroke	1982–1983	399289/391538

Technical Specs

Product Type: Water Pump Impeller
Installation: Direct replacement in water pump housing
Material: Neoprene rubber
Dimensions: 87.92 mm outer diameter, 22.25 mm hub diameter, 31.31 mm height
Number of Blades: 6
Weight: 63 g
Shaft Insert/Hub Diameter: 22.25 mm

What’s in the Box

1 x Water Pump Impeller (Replaces 47-43026Q02 / 19210-ZW1-003)

Installation Notes

Disconnect the negative battery cable before beginning work.
Remove the lower unit (gearcase) from the outboard motor by unfastening the mounting bolts.
Locate the water pump assembly on top of the lower unit and remove its cover.
Carefully pull the old impeller off the driveshaft, taking note of the original blade orientation.
Clean the inside of the pump housing and inspect the wear plate for scoring or damage. Replace if necessary.
Lightly lubricate the new impeller and the inside of the housing with marine grease.
Slide the new impeller onto the driveshaft while turning the shaft clockwise to correctly seat the blades.
Reassemble the water pump housing, using new gaskets if included in your kit.
Reinstall the lower unit onto the outboard, ensuring the driveshaft and shift shaft align properly.
Once fully assembled, reconnect the battery and test the engine in water to confirm a strong tell-tale stream.

Troubleshooting & FAQ

How do I know if my impeller needs replacing?

Common signs of a failing impeller include a weak or non-existent water stream from the "tell-tale" outlet, an engine temperature alarm, or visible cracks and brittleness on the impeller blades during inspection. We recommend preventative replacement every 1–2 boating seasons.

Can I reuse the old gaskets?

It is strongly recommended to use new gaskets when servicing the water pump to ensure a proper seal and prevent leaks, which could compromise cooling performance.

Do the impeller blades need to be oriented in a specific direction?

Yes. As you install the impeller, turn the driveshaft in its normal direction of rotation (usually clockwise) to bend the blades correctly within the housing. Installing them backwards will result in no water pressure and cause the engine to overheat.

Is this impeller suitable for saltwater use?

Absolutely. The neoprene rubber compound is specifically chosen for its durability and resistance to both saltwater and freshwater environments, as well as chemicals commonly found in marine settings.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it is batch-inspected for consistency and reliability.

Shipping speed & cost

We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options will appear at checkout where available for your location.

Warranty & returns

This part is covered by a 1-year warranty against manufacturing defects under normal use. If any issues arise, contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part before ordering. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component.
Professional installation is highly recommended for safety, proper function, and to prevent engine damage.
