Water Pump Impeller Kit – Fits Johnson/Evinrude 14-28HP (Replaces 395270, 18-3383)

Product Details

This Water Pump Impeller Kit is designed for a range of Johnson/Evinrude outboard engines, including 14HP (1988–1989), 18HP (1997–1998), 25HP (1979–2005), and 28HP (1986–1998) models. It provides a reliable solution for maintaining your engine's cooling system.

This kit serves as a direct replacement for multiple OEM and aftermarket part numbers, including Johnson/Evinrude 395270, Sierra 18-3383, Mallory 9-48212, and GLM 12060, ensuring broad interchangeability.

• Installs in the lower unit of the outboard motor.
• Features a direct OEM replacement fitting type for straightforward installation.
• Includes a complete repair kit with housing, impeller, and all necessary hardware for a full service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

The following table details compatible models primarily for Johnson engines. Evinrude models using the same part numbers are also compatible.

Technical Specs

Product Type

Water Pump Impeller Kit

Installation Location

Lower Unit

Fitting Type

Direct OEM Replacement

Kit Contents

Complete repair kit including housing and all necessary hardware

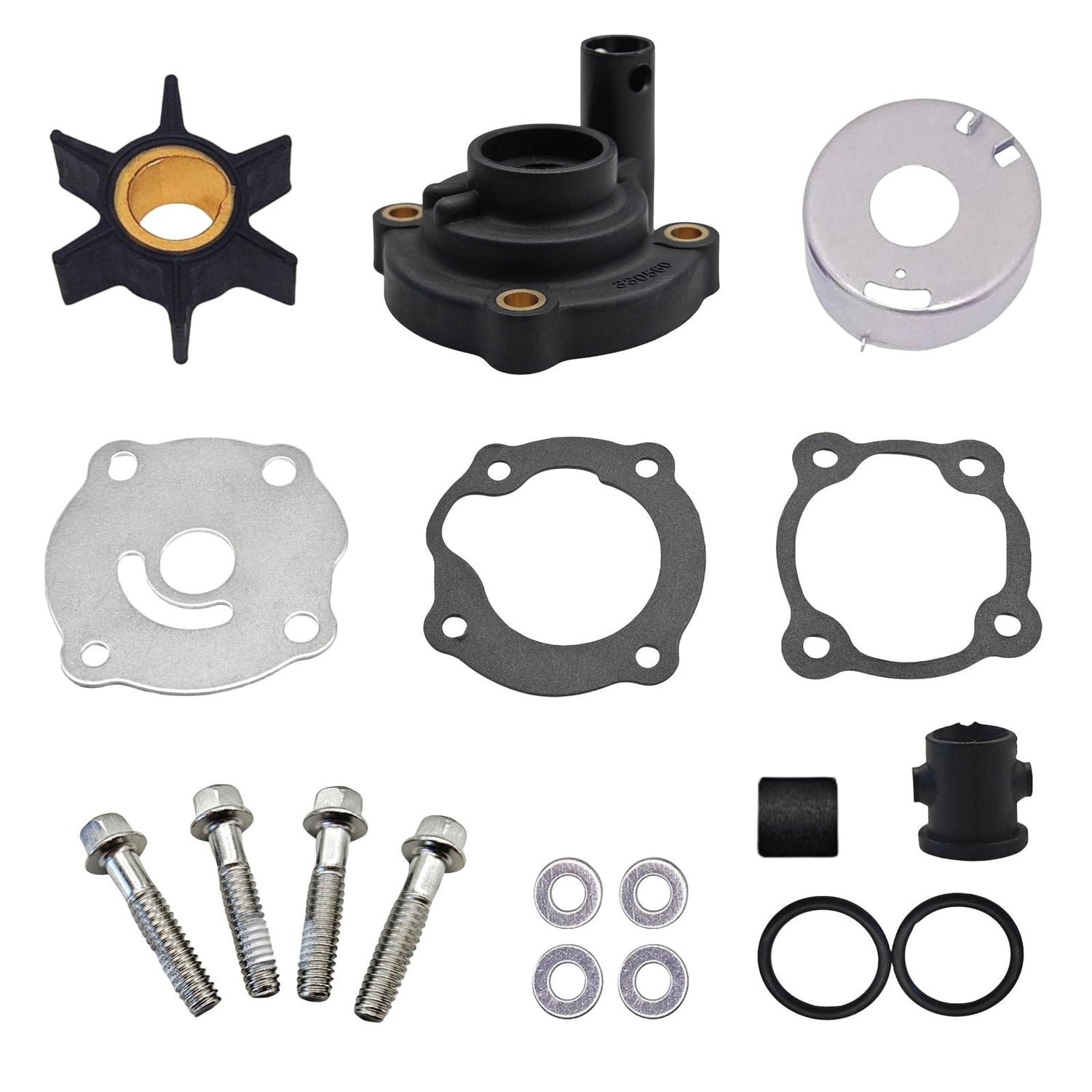

What’s in the Box

• 1 x Water Pump Impeller (Replaces 395289, 18-3051)
• 1 x Impeller Housing (Replaces 330560, 18-3363)
• 1 x Water Pump Cup (Replaces 328751, 18-3358)
• 1 x Impeller Housing Gasket (Replaces 329390, 18-3360)
• 1 x Grommet (Replaces 302497, 18-3329)
• 4 x Bolts (Replaces 331979, 18-3133)

Installation Notes

1. Disconnect the battery and remove the propeller.
2. Drain the gearcase oil from the lower unit.
3. Unbolt and carefully lower the gearcase from the driveshaft housing.
4. Locate and unbolt the existing water pump housing.
5. Remove the old housing, impeller, wear plate, and gaskets. Note the rotational direction of the old impeller's vanes.
6. Clean all mating surfaces thoroughly, removing any old gasket material or sealant.
7. Install the new gaskets, wear plate, pump cup, and impeller. Lightly grease the interior of the housing and ensure the impeller vanes are turned in the correct direction of engine rotation.
8. Secure the new housing with the provided bolts, tightening them to the manufacturer's specified torque in a crossing pattern.
9. Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly.
10. Refill the lower unit with the correct gearcase oil.
11. Reinstall the propeller and reconnect the battery.
12. Before open water use, test the engine in a test tank or with a flusher, verifying a strong, steady water stream from the tell-tale outlet.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
