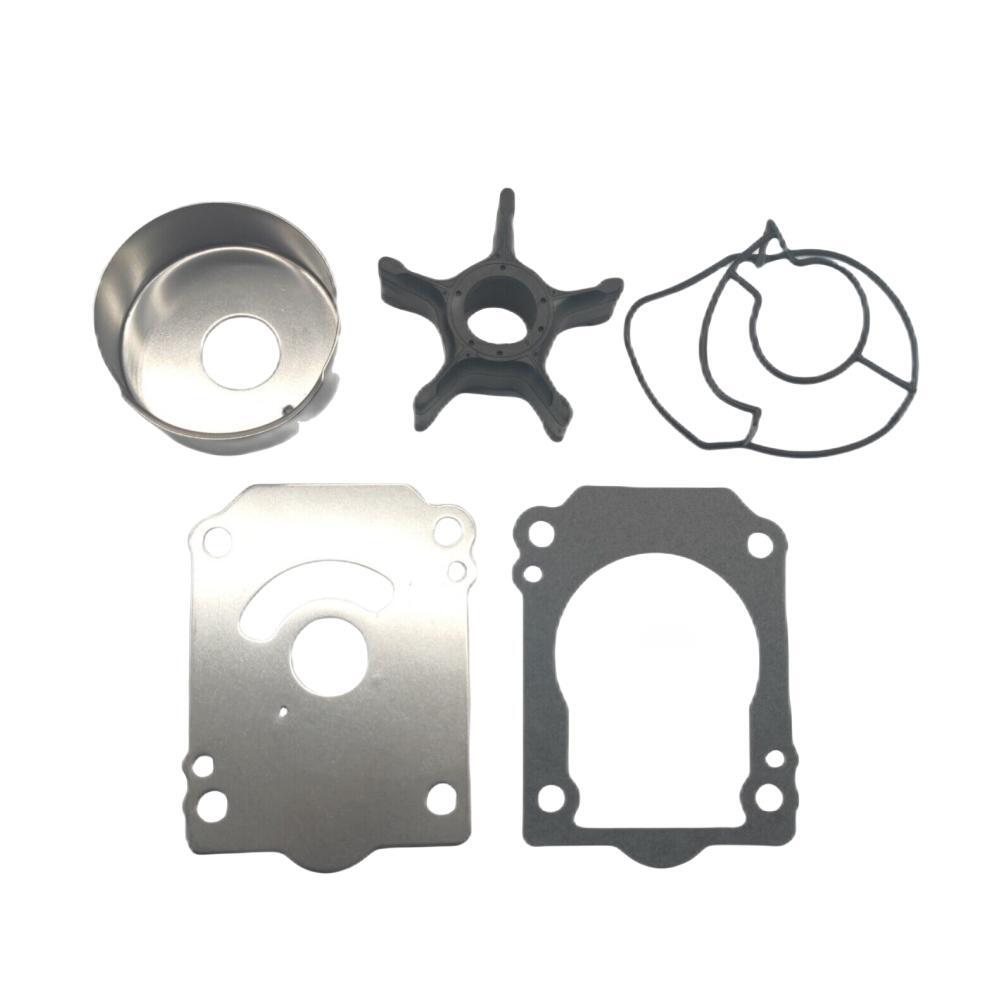

Water Pump Impeller Kit – Fits Suzuki DF200/225/250 & Johnson/Evinrude 200-250HP (Replaces 17400-93J02, 5035036, 18-3264)

$52.50

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Suzuki DF200/225/250 & Johnson/Evinrude 200-250HP (Replaces 17400-93J02, 5035036, 18-3264) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit – Fits Suzuki DF200/225/250 & Johnson/Evinrude 200-250HP provides a reliable solution for maintaining your engine's cooling system. It is engineered for Suzuki DF200, DF225, and DF250 V6 4-stroke engines (2004 and up) and Johnson/Evinrude 200-250HP 4-stroke EFI models (2004–2005).

This kit serves as a direct interchange for Suzuki part numbers 17400-93J00, 17400-93J01, 17400-93J02, 17400-93J03, and 17400-93J04, in addition to Sierra 18-3264 and Johnson/Evinrude 5035036.

Installs in the lower unit of the outboard motor.
Features a durable neoprene rubber impeller designed for longevity.
Engineered for a direct drive connection to ensure a precise fit.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17400-93J00
Suzuki	17400-93J01
Suzuki	17400-93J02
Suzuki	17400-93J03
Suzuki	17400-93J04
Johnson/Evinrude	5035036
Sierra	18-3264

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Suzuki outboards, this kit fits non-"A" models of the DF200, DF225, and DF250 series manufactured from 2004 onwards.

For Johnson/Evinrude outboards, this kit is compatible with specific 4-Stroke EFI models produced between 2004 and 2005.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF200	200	4-Stroke	2004 and up	17400-93J02	Non "A" models
Suzuki	DF225	225	4-Stroke	2004 and up	17400-93J02	Non "A" models
Suzuki	DF250	250	4-Stroke	2004 and up	17400-93J02	Non "A" models
Johnson/Evinrude	E-TEC	200	4-Stroke	2004–2005	5035036	EFI engines
Johnson/Evinrude	E-TEC	225	4-Stroke	2004–2005	5035036	EFI engines
Johnson/Evinrude	E-TEC	250	4-Stroke	2004–2005	5035036	EFI engines

Technical Specs

Product Type: Water Pump Impeller Kit
Installation Location: Lower Unit
Connection: Direct Drive
Impeller Material: Neoprene rubber

What’s in the Box

1 x Water Pump Impeller (17400-93J02)

Installation Notes

Before starting, disconnect the negative battery cable for safety.
Place the outboard in neutral gear and remove the shift linkage cover and connection.
Unbolt and carefully slide the lower unit (gearcase) away from the engine assembly.
Remove the water pump housing bolts and lift the housing to access the impeller.
Note the rotational direction of the old impeller's vanes before removing it, the key, and the wear plate.
Thoroughly clean the housing and plate surfaces, removing any old gasket material or debris.
Install the new gasket and wear plate, followed by the woodruff key and new impeller. Turn the driveshaft clockwise while pushing down to correctly seat the vanes.
Lightly grease the inside of the pump housing with marine-grade lubricant and reinstall it.
Reassemble the lower unit to the engine, ensuring the driveshaft, water tube, and shift shaft are correctly aligned.
Once assembled, reconnect the battery and test the engine with a reliable water source (flushing muffs) to verify a strong telltale stream.

Troubleshooting & FAQ

How do I confirm this kit fits my engine?

This kit is for Suzuki DF200, DF225, & DF250 V6 non-"A" models (2004+) and Johnson/Evinrude 200-250HP 4-Stroke EFI engines (2004–2005). To ensure compatibility, please verify that your engine's original part number matches one of the equivalents listed in our Part Number Matrix.

Will this fit a Suzuki "A" model engine (e.g., DF200A)?

No, this particular kit is specified for the non-"A" models only. The "A" models often use a different water pump assembly. Please confirm your exact engine model before purchasing.

What are the signs of a bad water pump impeller?

Common symptoms include the engine overheating, especially at idle or low speeds; a weak or inconsistent water stream from the "telltale" outlet; and, upon inspection, an impeller with cracked, brittle, or permanently bent vanes.

How often should I replace the impeller?

As a best practice for preventative maintenance, we recommend replacing the water pump impeller every 100-200 operating hours or every 1-2 years, whichever comes first. Saltwater use may require more frequent inspections.

Is this a genuine OEM part?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

How fast is shipping and what are the costs?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

What is the warranty and return policy?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
