Water Pump Impeller Kit – Fits Suzuki DF200/DF225/DF250 4-Stroke V6...
Product Details
This aftermarket Water Pump Impeller Kit – Fits Suzuki DF200/DF225/DF250 4-Stroke V6 is designed for Suzuki 4-Stroke V6 outboards (200–250 HP, 2004–Current) and Johnson/Evinrude 4-Stroke EFI engines (200–225 HP, 2004–2005). It provides everything needed for a complete water pump service to restore cooling performance.
It serves as a direct replacement for Suzuki part numbers 17400-93J00 through 17400-93J05, Johnson/Evinrude equivalents including 5035036 and 5035042, and Sierra 18-3264.
- Installs as a direct OEM-equivalent replacement.
- Features a high-performance, saltwater-resistant neoprene rubber impeller.
- Includes all necessary seals, gaskets, and hardware for a standard rebuild.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17400-93J00 | Superseded by 17400-93J01, J02, J03, J04, and J05 |
| Suzuki | 17400-93J01 | Superseded by 17400-93J02, J03, J04, and J05 |
| Suzuki | 17400-93J02 | Superseded by 17400-93J03, J04, and J05 |
| Suzuki | 17400-93J03 | Superseded by 17400-93J04 and J05 |
| Suzuki | 17400-93J04 | Superseded by 17400-93J05 |
| Suzuki | 17400-93J05 | Current part number in the supersession chain. |
| Johnson/Evinrude | 5035036 / 5035037 / 5035040 / 5035041 / 5035042 | OEM equivalent cross-references. |
| Sierra | 18-3264 | Aftermarket cross-reference. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki outboards, this kit fits non-"A" models of the DF200 from 2004–2014 and all model years of the DF225 and DF250.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF200 | 200 | 4-Stroke | 2004–2014 | 17400-93J00/93J01/93J02/93J03/93J04/93J05 | Non "A" models |
| Suzuki | DF225 | 225 | 4-Stroke | 2004–Current | 17400-93J00/93J01/93J02/93J03/93J04/93J05 | All model years |
| Suzuki | DF250 | 250 | 4-Stroke | 2004–Current | 17400-93J00/93J01/93J02/93J03/93J04/93J05 | All model years |
For Johnson/Evinrude outboards, this kit is compatible with 200 and 225 HP 4-Stroke EFI models from 2004–2005.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Johnson/Evinrude | 4-Stroke EFI | 200 | 4-Stroke | 2004–2005 | 5035036/5035037/5035040/5035041/5035042 | |
| Johnson/Evinrude | 4-Stroke EFI | 225 | 4-Stroke | 2004–2005 | 5035036/5035037/5035040/5035041/5035042 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct OEM replacement
- Housing Material
- Marine-grade alloy
- Housing Color
- Silver/Metallic
- Impeller Material
- High-performance neoprene rubber (saltwater-resistant)
- Warranty
- 1 Year (Aftermarket versions)

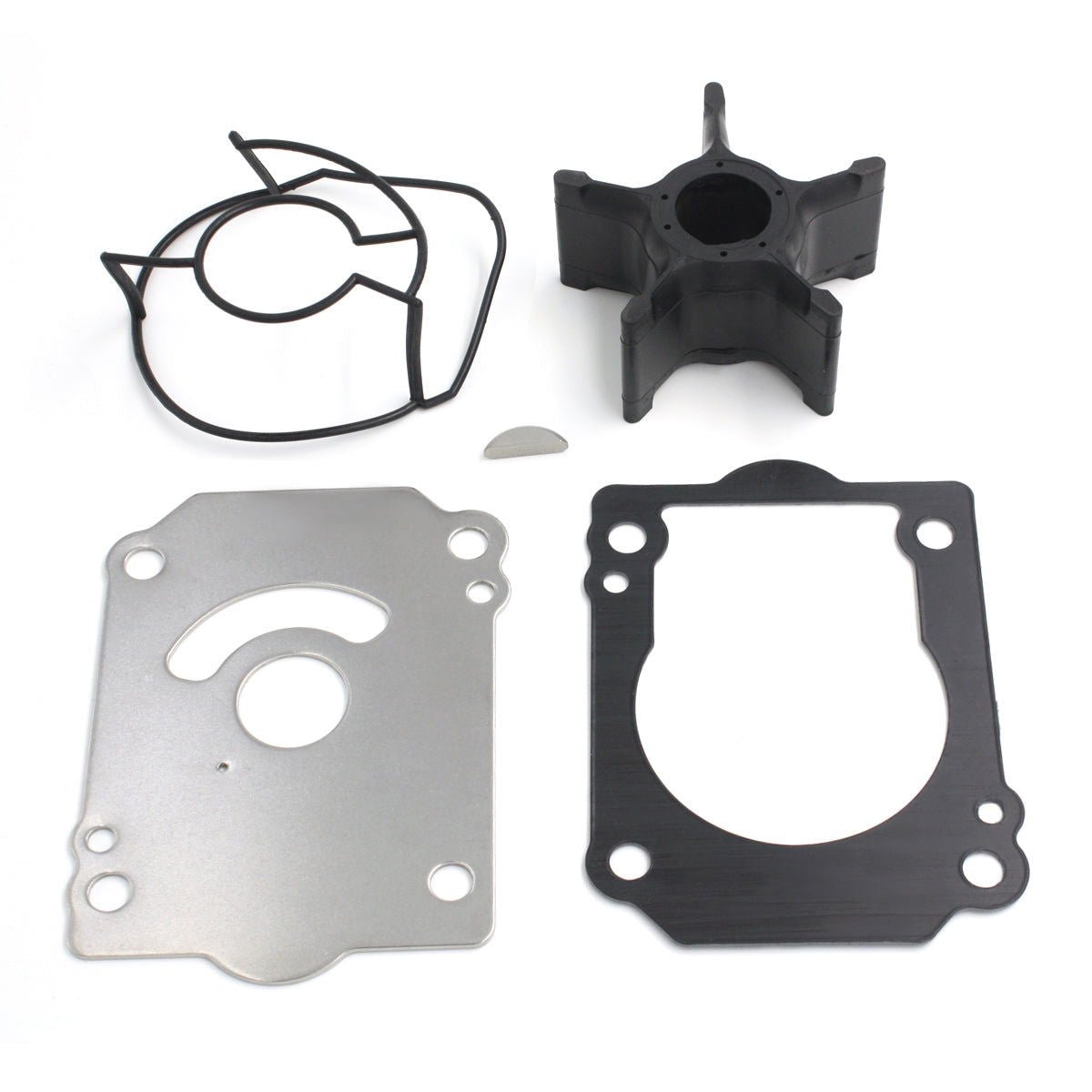

What’s in the Box
- 1 x Water Pump Impeller (Replaces 17461-93J00 / 18-3035 / 5035040)
- 1 x Wear Plate (Replaces 17471-93J02 / 17474-93J01 / 5035041)
- 1 x Drive Key (Replaces 09420-05009 / 5033632)
- 1 x Seal (Replaces 17416-93J00 / 5035039)
- 1 x Gasket (Replaces 17472-93J00 / 18-0778 / 5035042)
Installation Notes
- Disconnect the battery and shift the outboard into neutral.
- Remove the lower unit (gearcase) from the outboard housing.
- Unbolt and remove the water pump housing cover to access the impeller.
- Note the rotational direction of the old impeller's fins before removing it.
- Clean all mating surfaces and inspect the housing for wear or damage.
- Install the new wear plate, gasket, impeller, and drive key from the kit. Ensure the new impeller fins are oriented correctly.
- Lightly lubricate the inside of the housing and reinstall the cover.
- Reattach the lower unit, reconnect all linkages, and test the engine with a water supply.
Troubleshooting & FAQ
Will this kit fit a Suzuki DF200A (AP) model?
No. According to our compatibility data, this kit fits non-"A" models of the DF200 produced between 2004 and 2014. The "A" and "AP" models use a different water pump kit.
What are the signs of a failing water pump impeller?
Common signs include a weak or intermittent water stream from the "tell-tale" port, engine overheating alarms, and reduced engine performance. Visible signs on the old impeller include cracked, brittle, or missing fins.
How often should I replace my water pump impeller?
For preventative maintenance, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. This interval can be shorter if operating frequently in sandy or debris-filled water.
Is the included drive key made of metal or plastic?
The drive key is typically a small, precision-cut metal component designed to lock the impeller to the driveshaft for positive engagement. This kit includes the correct key for the specified models.
What is the difference between this kit and the OEM version?
This aftermarket kit is engineered to meet or exceed OEM specifications for fit, form, and function. It uses comparable materials, like a marine-grade alloy housing and a durable neoprene impeller, to ensure reliable performance at a better value.
Is any special grease required for installation?
While not included, applying a thin coat of marine-grade grease or a soap-and-water solution to the inside of the pump housing and the impeller fins can ease installation and provide initial lubrication.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
