Water Pump Impeller Kit with Housing – Fits Johnson/Evinrude V4 & V6 (Replaces 395073, 388644, 389158, 777813)

Product Details

This Water Pump Impeller Kit with Housing is designed for Johnson and Evinrude 85–235 HP V4 & V6 hydraulic shift outboard engines manufactured between 1976–1978. It provides a complete solution for replacing the entire water pump assembly to restore cooling system performance and prevent engine overheating.

This kit serves as a direct replacement for Johnson/Evinrude part numbers 395073, 388644, 389158, and 777813, as well as several aftermarket equivalents.

• Installs in the outboard's lower unit.
• Engineered specifically for hydraulic shift models.
• Includes the essential half-moon style impeller key for proper fitment.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket brands.

Engine & Model Compatibility

Confirm your engine model and year in the table below.

This kit is specifically for Johnson/Evinrude V4 and V6 outboards with hydraulic shifting systems from 1976 to 1978.

Technical Specs

Product Type

Water Pump Kit with Housing

Installation

Outboard Lower Unit

Housing Color

Silver, Black (components)

Other Technical Attributes

Uses half-moon style impeller key, specific to hydraulic shift models

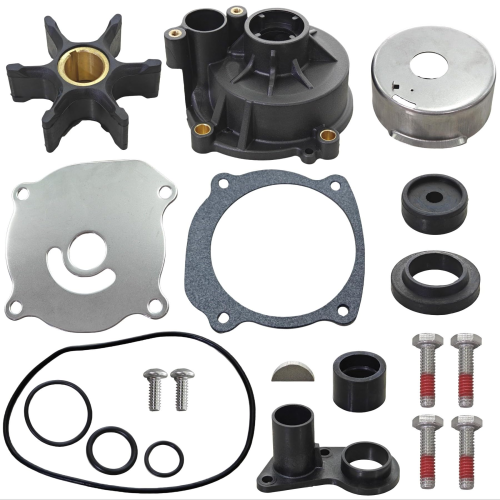

What’s in the Box

• 1 x Cup & Plate Assembly
• 1 x Impeller
• 1 x Impeller Gasket (325537)
• 1 x Pump Housing
• 1 x Wear Plate
• 4 x Install Bolts
• 1 x Key (Half-moon style)
• 1 x Seal
• 3 x O-Rings
• 3 x Gaskets

Installation Notes

1. Disconnect the battery and shift the outboard into neutral.
2. Place a drain pan under the lower unit and remove the gearcase drain/fill screws to empty the oil.
3. Remove the bolts securing the lower unit (gearcase) to the upper leg. Carefully lower and detach it.
4. Unbolt and remove the old water pump housing to access the impeller and wear plate.
5. Clean the mounting surfaces and driveshaft, removing any old gasket material or debris.
6. Install the new components in the reverse order of removal: wear plate, gasket, impeller (with key), housing, seals, and O-rings. Ensure the impeller vanes are oriented correctly.
7. Securely tighten the new housing bolts to the manufacturer's torque specifications.
8. Re-install the lower unit, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
9. Refill the gearcase with the correct type and amount of marine gear lubricant.
10. Once assembled, start the engine using a water supply (flushing muffs) to verify proper water pump operation (check for a steady stream from the tell-tale).

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
