Water Pump Impeller Repair Kit with Plate – Fits Suzuki DT9.9/DT15, DF9.9/DF15/DF20A and Johnson/Evinrude 9.9/15 HP
Water Pump Impeller Repair Kit with Plate – Fits Suzuki DT9.9/DT15, DF9.9/DF15/DF20A and Johnson/Evinrude 9.9/15 HP is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Water Pump Impeller Repair Kit with Plate – Fits Suzuki DT9.9/DT15,...
Water Pump Impeller Repair Kit with Plate – Fits Suzuki DT9.9/DT15, DF9.9/DF15/DF20A and Johnson/Evinrude 9.9/15 HP is backordered and will ship as soon as it is back in stock.
Product Details

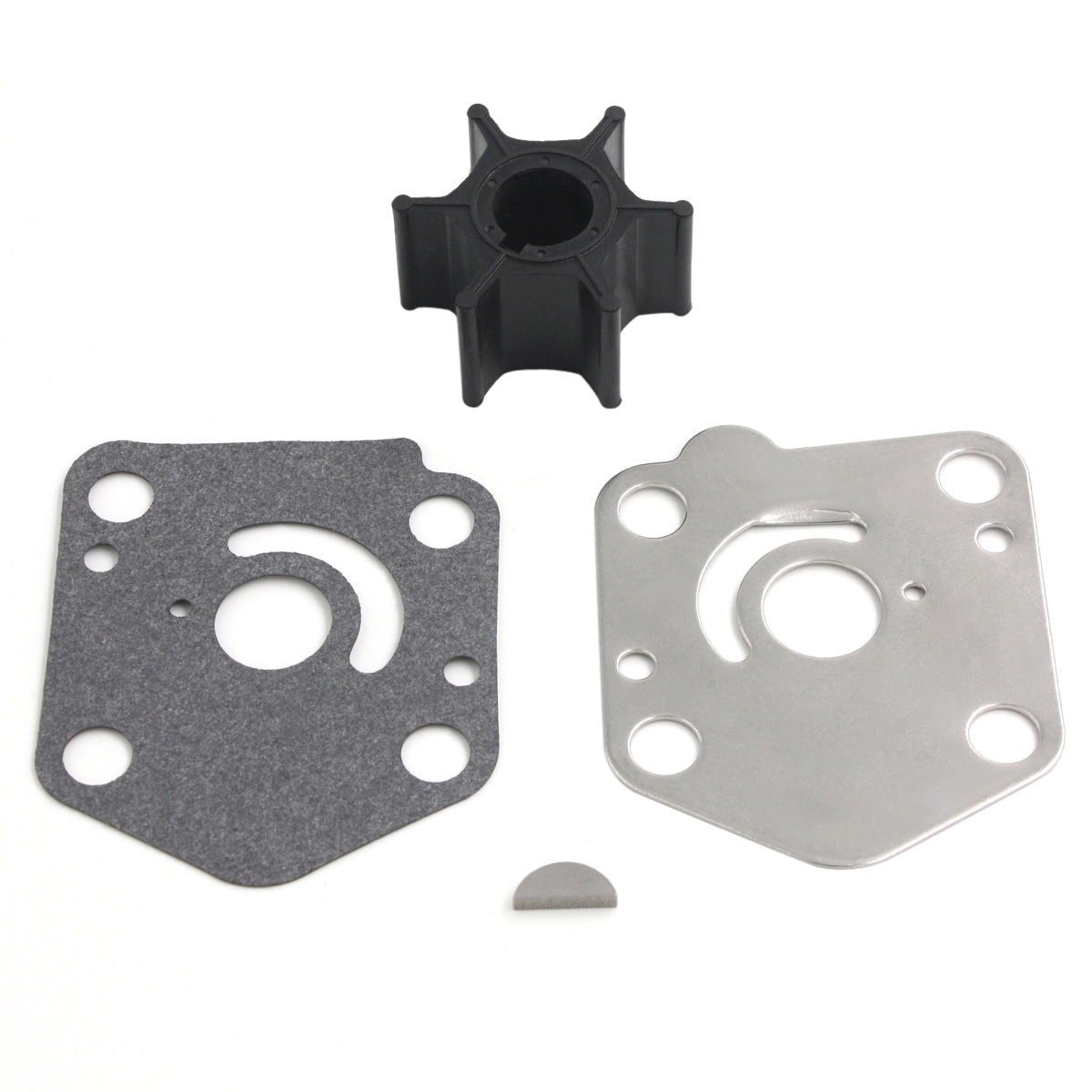

This water pump impeller repair kit with plate is designed for selected Suzuki outboards and selected 4-stroke Johnson/Evinrude outboards. It is intended for routine water pump service and includes the replacement impeller and pump plate specified for the applications listed below.
The kit is listed for Suzuki DT9.9 and DT15 2-stroke outboards from 1986–2012, Suzuki DF9.9, DF9.9B, DF15, DF15A and DF20A 4-stroke outboards from 1997–2006, and selected Johnson/Evinrude 9.9 HP and 15 HP 4-stroke outboards with 302 cc engines from 2002–2006.
- Replacement water pump impeller and plate for a scheduled water pump service.
- Applicable to the Suzuki and Johnson/Evinrude model ranges listed in this description.
- Aftermarket replacement part; verify the engine model, year and reference number before ordering.
Part Number Matrix
The following manufacturer and aftermarket reference numbers are associated with this replacement kit. A reference number alone does not replace checking the complete engine application.
| Brand | Reference Number | Application Note |
|---|---|---|
| Suzuki | 17400-93911 | Water pump kit reference |
| Suzuki | 17400-93912 | Water pump kit reference |
| Suzuki | 17400-93950 | Reference associated with the listed Suzuki applications |
| Suzuki | 17400-93951 | Water pump repair kit reference |
| Suzuki | 17400-93960 | Reference associated with the listed Suzuki applications |
| Johnson/Evinrude/OMC | 5033106 | Reference for selected 9.9 HP and 15 HP 4-stroke applications |
| Johnson/Evinrude/OMC | 0766485 / 766485 | Additional catalog reference |
| Sierra Marine | 18-3256 | Aftermarket cross-reference listed for selected applications |
Engine & Model Compatibility
Fitment depends on the complete model designation and production year. Match your engine against the appropriate row below and compare the reference number with the part being replaced before installation.
| Brand | Model | Rated HP | Stroke | Years | Reference Number | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT9.9 | 9.9 | 2-Stroke | 1986–2012 | 17400-93911/12, 17400-93950/51/60 | Confirm the exact model code and year |
| Suzuki | DT15 | 15 | 2-Stroke | 1986–2012 | 17400-93911/12, 17400-93950/51/60 | Confirm the exact model code and year |
| Suzuki | DF9.9 | 9.9 | 4-Stroke | 1997–2006 | 17400-93911/12, 17400-93950/51/60 | Early-generation DF application |
| Suzuki | DF9.9B | 9.9 | 4-Stroke | 1997–2006 | 17400-93911/12, 17400-93950/51/60 | Confirm the exact model code and year |
| Suzuki | DF15 | 15 | 4-Stroke | 1997–2006 | 17400-93911/12, 17400-93950/51/60 | Confirm the exact model code and year |
| Suzuki | DF15A | 15 | 4-Stroke | 1997–2006 | 17400-93911/12, 17400-93950/51/60 | Confirm the exact model code and year |
| Suzuki | DF20A | 20 | 4-Stroke | 1997–2006 | 17400-93911/12, 17400-93950/51/60 | Listed by the company for the same water pump application |
| Johnson/Evinrude | J10 / 9.9 HP | 9.9–10 | 4-Stroke | 2002–2006 | 5033106 | 302 cc engine applications |
| Johnson/Evinrude | J15 / 15 HP | 15 | 4-Stroke | 2002–2006 | 5033106 | 302 cc engine applications |
Technical Specifications
- Product Type
- Water pump impeller repair kit with plate
- Intended Use
- Outboard water pump service and impeller replacement
- Compatible Engine Brands
- Suzuki; selected Johnson/Evinrude applications
- Compatible Strokes
- Suzuki 2-stroke and 4-stroke applications; selected Johnson/Evinrude 4-stroke applications
- Housing
- Water pump housing is not included unless specifically shown or stated by the seller
What's in the Box
- 1 x Water pump impeller
- 1 x Water pump plate
Not included: water pump housing, unless specifically shown or stated in the order details. Check the received parts against the original components before beginning installation.
Installation Notes
- Disconnect the battery and remove the emergency stop lanyard. Follow the engine manufacturer's safety instructions.
- Place the outboard in a stable service position and remove the lower unit according to the service manual for your exact model.
- Locate the water pump assembly on top of the lower unit and remove the pump cover or housing fasteners.
- Remove the used impeller and plate. Inspect the pump housing, drive key, shaft and mating surfaces for wear, corrosion or damage.
- Clean the mating surfaces and remove all residue without damaging the sealing surfaces.
- Install the replacement plate and impeller in the same orientation as the removed parts. Use only the lubricant and assembly method recommended for your engine.
- Reinstall the pump cover or housing and tighten the fasteners to the manufacturer's specification.
- Reinstall the lower unit, reconnect the shift linkage if applicable, and complete all adjustments required by the service manual.
- Run the engine in an appropriate test tank or in the water and confirm a steady cooling-water discharge before normal operation.
Professional installation is recommended if you are unfamiliar with lower-unit removal or water pump service.
Troubleshooting & FAQ
How do I confirm that this kit fits my engine?
Match the complete engine brand, model designation, stroke, horsepower and year to the compatibility table. Also compare the original water pump kit or impeller reference with the numbers listed in the part number matrix. Do not rely on horsepower alone.
What are the signs of a worn water pump impeller?
Typical symptoms include a weak or intermittent tell-tale stream, overheating, an overheating warning, or reduced cooling-water flow. An impeller that is cracked, brittle, deformed or missing vanes should be replaced.
Does this product include the complete water pump housing?
No. This listing is for the impeller and plate kit. The water pump housing is not included unless it is specifically shown or stated in the order details.
Does this kit fit both 2-stroke and 4-stroke Suzuki outboards?
Yes, the company fitment records list Suzuki DT9.9 and DT15 2-stroke models and Suzuki DF9.9, DF9.9B, DF15, DF15A and DF20A 4-stroke models. The specified year ranges and model designations must still be matched.
Does it fit Johnson or Evinrude engines?
The company records list selected Johnson/Evinrude 9.9 HP and 15 HP 4-stroke engines with 302 cc displacement from 2002–2006, including J10 and J15 applications. Verify the complete model designation and the reference number before ordering.
Is this an OEM part?
No. This is an aftermarket replacement kit. The manufacturer and aftermarket numbers shown are reference numbers used to help confirm application; they do not indicate that the product is manufactured by Suzuki, Johnson, Evinrude, OMC or Sierra Marine.
Safety & Important Information
- Confirm the complete engine model, year, stroke and reference number before purchase.
- Do not operate an outboard with inadequate cooling-water flow.
- Inspect the pump housing, shaft, key and related components during installation; replace damaged parts as required.
- Use the service manual for the correct torque values, lower-unit procedure and testing method.
- Product images may show the impeller and plate only. The water pump housing and other components are not included unless specifically stated.
About Sea Sierra
- Marine Replacement Parts — Practical replacement components for routine outboard maintenance and repair.
- Application-Focused Listings — Model, year, horsepower and reference information are provided to support fitment checks.
- Service Support — Compare your original part and engine details before installation, and contact support if you need help interpreting the listed application.
