Water Pump Impeller Service Kit – Fits Johnson/Evinrude 85-300 HP V4/V6/V8 (Replaces 5001593, 395864)

$23.99

Shipping calculated at checkout.

Water Pump Impeller Service Kit – Fits Johnson/Evinrude 85-300 HP V4/V6/V8 (Replaces 5001593, 395864) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Service Kit – Fits Johnson/Evinrude 85-300 HP V4/V6/V8 is designed for a broad range of Johnson and Evinrude outboard engines, including V4, V6, and V8 models manufactured from 1979 through 2007, covering both 2-Stroke and 4-Stroke variants.

It serves as a direct aftermarket replacement for Johnson/Evinrude OEM part numbers 5001593, 435821, 777816, 397131, 435748, 395864, 394534, 391538, and 389289, as well as Sierra part 18-3059.

Engineered for a direct fit in the lower gear case unit.
Constructed from durable neoprene rubber with a solid brass hub for longevity.
The kit includes necessary seals and O-rings for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Johnson/Evinrude	5001593
Johnson/Evinrude	435821
Johnson/Evinrude	777816
Johnson/Evinrude	397131
Johnson/Evinrude	435748
Johnson/Evinrude	395864
Johnson/Evinrude	394534
Johnson/Evinrude	391538
Johnson/Evinrude	389289
Sierra	18-3059

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is designed for a wide array of Johnson and Evinrude outboard engines.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Johnson/Evinrude	Various	85	2-Stroke	1979–1995	5001593
Johnson/Evinrude	Various	90	2-Stroke	1979 & Up	5001593	Including FICHT 1995 & Up
Johnson/Evinrude	Various	100	2-Stroke	1979 & Up	5001593	Including Commercial 1984 & Up
Johnson/Evinrude	Various	105 Commercial	2-Stroke	1998–2001	5001593
Johnson/Evinrude	Various	115	2-Stroke	1979 & Up	5001593	Including FICHT 1995 & Up
Johnson/Evinrude	Various	120 25"	2-Stroke	1994 & Up	5001593
Johnson/Evinrude	Various	125	2-Stroke	1993–1995	5001593
Johnson/Evinrude	Various	130	2-Stroke	1979 & Up	5001593
Johnson/Evinrude	Various	130 25"	2-Stroke	1994–2000	5001593
Johnson/Evinrude	Various	135 25"	2-Stroke	2001	5001593
Johnson/Evinrude	Various	140	2-Stroke	1979 & Up	5001593
Johnson/Evinrude	Various	140 25" F suffix	2-Stroke	1994–2000	5001593
Johnson/Evinrude	Various	150	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	Various	150/175 20" EL & SL	2-Stroke	1996–1998	5001593
Johnson/Evinrude	Various	175	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	Various	200	2-Stroke	1976–1978	5001593
Johnson/Evinrude	Various	200 25" & 30"	2-Stroke	1993–1997	5001593
Johnson/Evinrude	Various	200 Commercial	2-Stroke	1990	5001593
Johnson/Evinrude	Various	225 20"	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	Various	225 25" & 30"	2-Stroke	1993–1997	5001593
Johnson/Evinrude	Various	235	2-Stroke	1978 & Up	5001593
Johnson/Evinrude	V4 Loop 20"	Various	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	V4 Cross 20" & 25"	Various	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	V4, V6, V8	Various	2-Stroke	1982–1994	5001593
Johnson/Evinrude	V6, V8	Various	2-Stroke	1993 & Up	5001593
Johnson/Evinrude	Sea Drives	Various	2-Stroke	1979 & Up	5001593
Evinrude	E-TEC	75-300	2-Stroke	2004 & Up	5001593

Technical Specs

Product Type: Water Pump Impeller Kit
Installation: Direct fit for lower gear case
Materials: Neoprene rubber impeller with brass hub
Dimensions: 89 mm overall diameter × 31.9 mm height (3.5" × 1.25")
Shaft Diameter: 22.4 mm (0.88")
Weight: 150 g (5.3 oz)
Number of Blades: 6

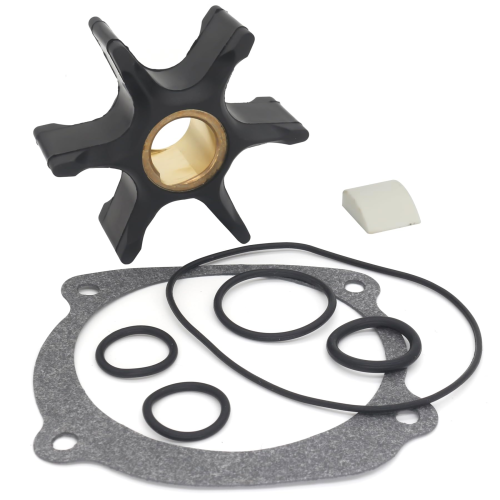

What’s in the Box

1 x Water Pump Impeller (replaces 5001593)
1 x Impeller Pin/Key (replaces 331107)
1 x O-ring (replaces 331188)
1 x O-ring (replaces 0302035)
1 x Water Pump Housing Seal (replaces 331353)
1 x Gasket (replaces 324701)

Installation Notes

Disconnect the battery and shift the outboard into neutral.
Remove the lower unit (gear case) by unbolting it from the engine's midsection. Be prepared for some gear lube to drain.
Place the lower unit on a stable workbench. Locate and unbolt the water pump housing.
Remove the old housing, impeller, and wear plate. Clean all mating surfaces thoroughly, removing any old gasket material or sealant.
Lightly lubricate the new housing interior and insert the new impeller. Turn the driveshaft clockwise to help seat the blades.
Install the new key, gaskets, and seals as provided in the kit.
Reassemble the water pump housing and torque the bolts to the manufacturer's specification.
Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned. Secure all bolts.
Reconnect the battery, start the engine using a water supply (flushing muffs), and verify water is exiting the tell-tale port.

Troubleshooting & FAQ

How often should I replace my water pump impeller?

For preventative maintenance, it's recommended to replace your impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. This can vary based on usage conditions (e.g., sandy or saltwater environments may require more frequent changes).

What are the signs of a failing impeller?

Common symptoms include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, or visible cracks and brittleness on the impeller blades during inspection.

How can I be sure this kit fits my specific engine?

Please use the detailed 'Engine & Model Compatibility' table provided on this page. Cross-reference your engine's model, horsepower, and year range. Also, visually compare the parts in the photos to your old parts before ordering.

Does this service kit include the water pump housing?

This is an impeller service kit and does not include the metal water pump housing. It contains the impeller, key, gaskets, and O-rings needed for a standard replacement. The included notes mention it may work with 5001594/5001595 Water Pump Repair Kits, which typically include the housing.

What kind of lubricant should I use during installation?

Use a marine-grade grease or a simple soap and water solution to lubricate the inside of the water pump housing before inserting the new impeller. This helps prevent damage to the blades during initial startup.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
