Trim Tab Anode – Fits Mercury/Mariner 35-300 HP Outboards & MerCruiser Alpha/Bravo Drives (Replaces 97-76214Q5, 97-76214T5)
Trim Tab Anode – Fits Mercury/Mariner 35-300 HP Outboards & MerCruiser Alpha/Bravo Drives (Replaces 97-76214Q5, 97-76214T5) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Trim Tab Anode – Fits Mercury/Mariner 35-300 HP Outboards & Mer...
Product Details

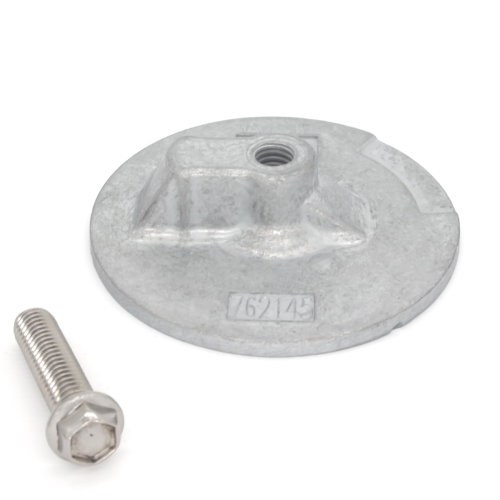

This flat plate Trim Tab Anode – Fits Mercury/Mariner 35-300 HP Outboards & MerCruiser Alpha/Bravo Drives protects your engine from galvanic corrosion in fresh and saltwater. It is designed for a wide range of Mercury/Mariner outboards (35–300 HP, 1995+), Force outboards (90 & 120 HP, 1995+), and MerCruiser Alpha One Gen 2 and Bravo series stern drives. The flat design provides extra clearance for high-rake propellers.
It serves as a direct replacement for Mercury/Mercruiser part numbers 76214Q5, 97-76214Q5, 97-76214T5, and interchanges with Sierra 18-6016, Tecnoseal 00820, and others.
- Installs directly with the included mounting bolt.
- Suitable for both freshwater and saltwater environments.
- Made from high-purity, marine-grade zinc alloy for maximum protection.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury / MerCruiser | 76214Q5 |
| Mercury | 97-76214Q5 |
| Mercury | 97-76214T5 |
| Sierra | 18-6016 / 18-6016A / 18-60161 |
| CMP | CM762145Z / CM762145A |
| Tecnoseal | 00820 / 00820AL |
| GLM | 12710 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fits various Mercury, Mariner, and Force outboards from 1995 and newer.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury / Mariner | Outboard Motors | 35–300 | 2- & 4-Stroke | 1995 and newer | 97-76214Q5, 97-76214T5 | Fits outboard trim tab cavity |
| Force | Outboard Motors | 90, 120 | 2- & 4-Stroke | 1995 and newer | 97-76214Q5, 97-76214T5 |
Also compatible with MerCruiser Alpha One and Bravo series stern drives.
| Brand | Model | OEM Part No. |
|---|---|---|
| MerCruiser | Alpha One Gen 2 | 97-76214Q5, 97-76214T5 |
| MerCruiser | Bravo I, II, III | 97-76214Q5, 97-76214T5 |
| MerCruiser | Bravo X, XR, XZ | 97-76214Q5, 97-76214T5 |
Technical Specs
- Product Type
- Trim Tab Anode
- Material
- Marine Grade Zinc Alloy (QuickMarine model); Aluminum (OEM model)
- Installation
- Direct bolt-on with included hardware
- Fitting Type
- Direct bolt-on
- Other Technical Attributes
- Flat plate design provides additional clearance for high rake propellers
- Operating Environment
- Fresh and saltwater
- Weight
- 0.45 lb (0.20 kg)
- Color
- Silver
What’s in the Box
- 1 x Zinc Trim Tab Anode (76214Q5)
- 1 x Mounting Bolt
Installation Notes
- Disconnect the battery or main power supply to the engine for safety.
- Locate the old trim tab anode on the anti-ventilation plate of your outboard or stern drive.
- Unscrew and remove the old anode and its mounting bolt. Retain the hardware if it is a different size.
- Thoroughly clean the mounting surface on the drive to ensure a good electrical connection. Remove any corrosion, paint, or buildup.
- Position the new trim tab anode and insert the included mounting bolt.
- Tighten the bolt securely according to your engine manufacturer's torque specifications. Do not over-tighten.
Troubleshooting & FAQ
How do I know if this anode fits my engine?
This anode fits a wide range of Mercury/Mariner outboards (35-300 HP, 1995+), Force outboards (90/120 HP, 1995+), and MerCruiser Alpha/Bravo drives. The best way to confirm is by matching the OEM part number (e.g., 97-76214Q5, 97-76214T5) from your service manual to the numbers in our Part Number Matrix.
What’s the difference between zinc and aluminum anodes?
Zinc anodes, like this one, are traditionally used for saltwater applications. Aluminum anodes are formulated for saltwater and brackish water, and are the standard for modern Mercury/MerCruiser engines. This zinc alloy part provides reliable protection in both fresh and salt water.
How often should I replace my trim tab anode?
Inspect your anodes at least once a year or every 100 hours of operation. You should replace them when they are 50% corroded or consumed. Replacement frequency depends on water salinity, temperature, and electrical currents in your marina.
What are the signs of a worn-out anode?
A worn-out anode will appear heavily pitted, physically smaller, and may have a chalky white coating. If the anode is gone or mostly eroded, your engine's other metal components are at risk of galvanic corrosion damage.
Why is a flat anode plate better for some setups?
This flat plate design offers increased clearance compared to standard or finned anodes. This is particularly beneficial for boats equipped with high-rake propellers, as it helps prevent the propeller blades from striking the anode during operation.
Can I install this trim tab anode myself?
Yes, this is a straightforward DIY task for most boat owners. It involves removing one bolt, cleaning the mounting surface, and securing the new anode. However, if you are unsure, professional installation is always recommended.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
