Water Pump Impeller – Fits Mercury/Mariner 6-15 HP, Force/Chrysler/...
Product Details

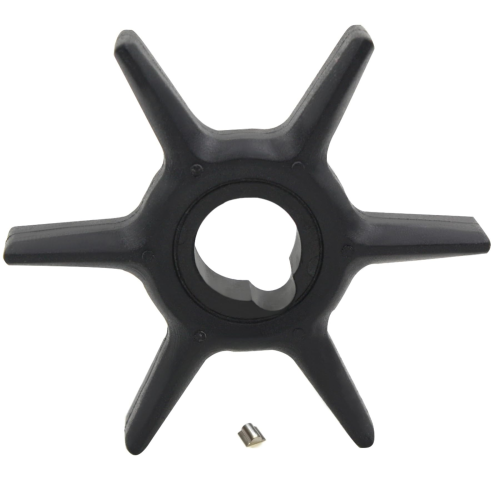

This is a direct replacement Water Pump Impeller for Mercury/Mariner 6-15 HP (Replaces 47-42038, 47-42038Q02) outboard motors. It is designed to fit a wide range of Mercury/Mariner 2-stroke and 4-stroke engines from 1986–2005, as well as select Force/Chrysler/US Marine 9.9 and 15 HP models from 1998 with a standard gearcase.
This impeller provides a reliable equivalent for Mercury 47-42038/47-42038Q02, Sierra 18-3062, Chrysler/Force/US Marine 47-42038-2, Mallory 9-45309, and HeuroFosh 18-3062, ensuring broad compatibility for your marine cooling system maintenance.
- Engineered for direct-fit installation.
- Made from durable, flexible neoprene rubber for longevity.
- Features a 6-blade design with a plastic hub for efficient water flow.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-42038 |
| Mercury | 47-42038Q02 |
| Chrysler/Force/US Marine | 47-42038-2 |
| Sierra | 18-3062 |
| Mallory | 9-45309 |
| HeuroFosh | 18-3062 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner engines, verify your model and serial number range against the tables for 2-stroke and 4-stroke outboards.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | - | 6 | 2-Stroke | 1986–1993 | 47-42038 | Serial: 0A197112-0T800749 |
| Mercury | - | 8 | 2-Stroke | 1986–1993 | 47-42038 | Serial: 0A197112 & Up |
| Mercury | - | 9.9 | 2-Stroke | 1986–1998 | 47-42038 | Serial: 0A197112 & Up |
| Mercury | XR10, Sea Pro, 10 Mag. & Marat | 10 | 2-Stroke | 1990–1998 | 47-42038 | Serial: 0D038000 & Up |
| Mercury | - | 15 | 2-Stroke | 1988–1998 | 47-42038 | Serial: 0B292414 & Up |
| Mercury | 15 Sea Pro & Marathon | 15 | 2-Stroke | 1994–1998 | 47-42038 | Serial: 0G044365 & Up |
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | - | 8 | 4-Stroke | Up to 2005 | 47-42038 | Serial: 0P086824-0P400999 |
| Mercury | - (232cc) | 8 | 4-Stroke | 1995–1998 | 47-42038 | Serial: 0G760300-0T178499 |
| Mercury | - (232cc) | 8 | 4-Stroke | - | 47-42038 | Serial: 0H017100-0H017349 |
| Mercury | - (323cc) | 9.9 | 4-Stroke | Up to 2004 | 47-42038 | Serial: 0P075166-0P400999 |
| Mercury | - (232cc) | 9.9 | 4-Stroke | 1995–1998 | 47-42038 | Serial: 0H000058-0H016909 |
| Mercury | - (323cc) | 9.9 | 4-Stroke | Up to 2005 | 47-42038 | Serial: 0G760300-1B226999 |
| Mercury | International | 13.5 | 4-Stroke | - | 47-42038 | Serial: 0P134638 & Up |
| Mercury | - | 15 | 4-Stroke | Up to 2005 | 47-42038 | Serial: 0P9973100 & Up |
| Mercury | - (323cc) | 15 | 4-Stroke | 1998 & Up | 47-42038 | Serial: 0G590000 & Up |
For Force, Chrysler, and Sears engines, this part fits 1998 models with a standard gearcase.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Force | - | 9.9 | - | 1998 | 47-42038-2 | Standard gearcase |
| Force | - | 15 | - | 1998 | 47-42038-2 | Standard gearcase |
| Sears | - | 9.9 | - | 1998 | 47-42038-2 | Standard gearcase |
| Sears | - | 15 | - | 1998 | 47-42038-2 | Standard gearcase |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct replacement
- Material
- Neoprene rubber
- Hub Type
- Plastic
- Number of Blades
- 6
- Dimensions
- External Diameter: 58.7 mm (2 5/16"), Internal Shaft Diameter: 12.7 mm (1/2"), Height: 11.5 mm (29/64")
- Weight
- 11 g (0.35 oz)
- Color
- Black
- Application
- Marine outboard cooling system
What’s in the Box
- 1 x Impeller (47-42038/47-42038Q02)
- 1 x Drive Key (28-42376A2) (Note: included in some packages, not guaranteed)
Installation Notes
- Disconnect the battery and remove the engine cover.
- Drain the gearcase oil from the lower unit.
- Unbolt and carefully lower the gearcase from the outboard's upper section.
- Locate and unbolt the water pump housing cover to expose the old impeller.
- Take note of the old impeller's blade orientation, then remove it and the drive key.
- Clean the housing and inspect it for wear, corrosion, or debris.
- Lightly lubricate the new impeller and housing interior with marine grease.
- Install the new drive key and slide the new impeller onto the driveshaft, turning the shaft clockwise to seat the blades.
- Reinstall the water pump housing, ensuring a proper seal.
- Reattach the lower unit to the engine, making sure the driveshaft and water tube align correctly.
- Refill the gearcase with the correct oil.
- Once fully assembled, start the engine in water and verify cooling water is discharging strongly from the tell-tale port.
Troubleshooting & FAQ
How do I know if this impeller fits my exact engine model?
The best way to ensure compatibility is to verify your engine's serial number against the ranges provided in the "Engine & Model Compatibility" tables. If your serial number falls within the specified range for your HP and year, this impeller should fit.
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, and reduced engine performance. Visible signs on the old impeller include cracked, brittle, or missing blades.
How often should I replace my outboard's impeller?
As a general maintenance rule, it's recommended to replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. This interval can be shorter if you frequently operate in sandy or silty water.
Does this impeller come with a drive key?
Some packages include the drive key, but it is not guaranteed. Please be prepared to reuse your existing key if it's in good condition or purchase one separately if needed.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
