Water Pump Repair Kit – Fits Mercury/Mariner 30-60 HP 4-Stroke Outboards (Replaces 46-812966A12)

$48.50 $77.00

Shipping calculated at checkout.

Water Pump Repair Kit – Fits Mercury/Mariner 30-60 HP 4-Stroke Outboards (Replaces 46-812966A12) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Repair Kit – Fits Mercury/Mariner 30-60 HP 4-Stroke Outboards (Replaces 46-812966A12) provides a complete solution for servicing the cooling system on a wide range of outboard engines. It is designed for Mercury/Mariner 30-60 HP 4-Stroke models (1999–2012+), including EFI, JET, SeaPro, and BIGFOOT variants, as well as Force 70-75 HP outboards (1991–1998).

This kit serves as a direct interchange for Mercury/Mariner part numbers 46-812966A12, 812966A11, 812966A4, 812966A5, 14334A1, 14334A2, 14334A3, and aftermarket equivalents such as Sierra 18-3324 and Quicksilver 812966A12.

Engineered for direct OEM replacement to ensure straightforward installation.
Includes the essential impeller, housing, plates, and gaskets for a comprehensive overhaul.
Designed for specific models using a 1.83:1 ratio gearcase.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Mercury/Mariner	46-812966A12	Primary OEM reference
Mercury/Mariner	812966A11	Superseded part number
Mercury/Mariner	812966A4	Superseded part number
Mercury/Mariner	812966A5	Superseded part number
Mercury/Mariner	14334A1	Superseded part number
Mercury/Mariner	14334A2	Superseded part number
Mercury/Mariner	14334A3	Housing component number
Quicksilver	812966A12	OEM-affiliated aftermarket brand
Sierra	18-3324	Aftermarket equivalent
UanofCn	812966A12	Aftermarket equivalent

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury Marine engines, this kit fits various 4-stroke models from 30 HP to 60 HP, including EFI, Jet, SeaPro, and Bigfoot versions manufactured from 1998 onwards.

For Force outboards, compatibility extends to 70 HP and 75 HP models from 1991 to 1998.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury	30 EFI	30	4-Stroke	2006–2012+	46-812966A12
Mercury	35 EFI JET	35	4-Stroke	2006–2012+	46-812966A12
Mercury	40 (4 Cyl)	40	4-Stroke	2001–2012+	46-812966A12	Standard & EFI versions
Mercury	40 EFI (3 Cyl)	40	4-Stroke	2006–2012+	46-812966A12
Mercury	40 CARB	40	4-Stroke	2006–2012+	46-812966A12
Mercury	40 JET	40–60	4-Stroke	1999–2012+	46-812966A12	Jet drive variants
Mercury	40 SEAPRO	40	4-Stroke	2006–2012+	46-812966A12	Commercial models
Mercury	45 JET	45–60	4-Stroke	1998–2004	46-812966A12
Mercury	50 (4 Cyl)	50	4-Stroke	2001–2012+	46-812966A12	Standard & EFI versions
Mercury	55 (3 Cyl)	55	4-Stroke	1999–2006	46-812966A12
Mercury	60 (3 & 4 Cyl)	60	4-Stroke	1999–2012+	46-812966A12	Standard, EFI & BIGFOOT
Mercury	60 SEAPRO	60	4-Stroke	2006–2012+	46-812966A12	Commercial models
Mercury	FORMULA 60	60	4-Stroke	2006–2012+	46-812966A12
Force	70 HP FORCE	70	4-Stroke	1991–1995	46-812966A12
Force	75 HP FORCE	75	4-Stroke	1996–1998	46-812966A12

Technical Specs

Product Type: Water Pump Repair/Impeller Kit
Installation: Direct OEM replacement
Weight: 0.63 kg (1.39 lbs)
Other Technical Attributes: Fits 1.83:1 ratio gearcase for specific models
Warranty: 30-day return (Amazon)

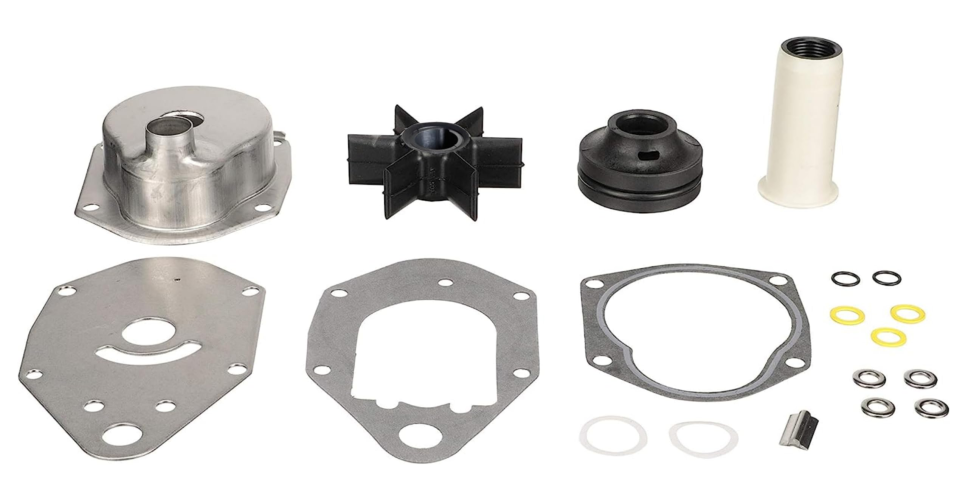

What’s in the Box

1 x Impeller (47-19453T)
1 x Faceplate (19700A2)
1 x Base (46-812966A7)
1 x Housing (14334A3)
1 x Guide Tube/Coupler (859770/8597701/893857)
1 x Gasket Upper (27-822189)
1 x Gasket Lower (27-19701)
1 x Impeller Key
1 x O-Ring
11 x Small Washers

Installation Notes

Disconnect the battery and shift the outboard into the neutral position.
Remove the lower unit (gearcase) by unbolting it from the engine's midsection.
Place the lower unit on a suitable workbench and remove the old water pump housing bolts.
Carefully lift the old housing, noting the position of all parts for reassembly.
Remove the old impeller, gaskets, face plate, and seals. Thoroughly clean all mating surfaces.
Install the new lower gasket, face plate, and impeller key onto the driveshaft.
Slide the new impeller onto the driveshaft, turning the shaft clockwise to seat the vanes correctly inside the housing.
Install the upper gasket and fit the new housing assembly over the impeller.
Tighten the housing bolts to the manufacturer's specified torque.
Reinstall the lower unit, ensuring the water tube and shift shaft are correctly aligned.
Securely tighten all lower unit mounting bolts to the correct torque specifications.
Reconnect the battery and test the engine in the water, verifying a steady water stream from the tell-tale port.

Troubleshooting & FAQ

How do I know if my water pump is failing?

Common signs include a weak or non-existent water stream from the tell-tale (pee hole), engine overheating alarms, steam from the exhaust, and reduced engine performance.

What is the recommended replacement interval for this kit?

For optimal reliability and to prevent engine damage, we recommend inspecting the impeller annually and replacing the entire water pump kit every 1-2 years or every 100-200 hours of operation, depending on usage and water conditions (e.g., sandy or saltwater).

Will this kit fit my BIGFOOT or SeaPro model?

Yes, this kit is designed to be compatible with specific Mercury 60 HP BIGFOOT and 40/60 HP SeaPro models within the specified year ranges. Always verify your exact engine model and year against the compatibility table before ordering.

My engine is still overheating after installing the new kit. What went wrong?

First, confirm the impeller vanes were installed in the correct rotational direction (typically clockwise). Second, ensure the impeller key is properly installed, locking the impeller to the driveshaft. Finally, check that all gaskets are creating a good seal and that the water tube correctly aligned with the pump outlet upon reassembly.

Why are there leftover parts after my installation?

This kit is designed to cover multiple engine variations. It's possible to have extra washers or seals that are not required for your specific model. As long as you have replaced all the parts that came off your original pump, this is normal.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, all parts are batch-inspected for consistency and reliability.

Shipping speed & cost?

We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free for most orders; expedited options will appear at checkout where available for your location.

Warranty & returns?

This product is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
