Fuel Filter Assembly – Fits Yamaha 30-115HP (Replaces 68V-24560-00,...
Product Details

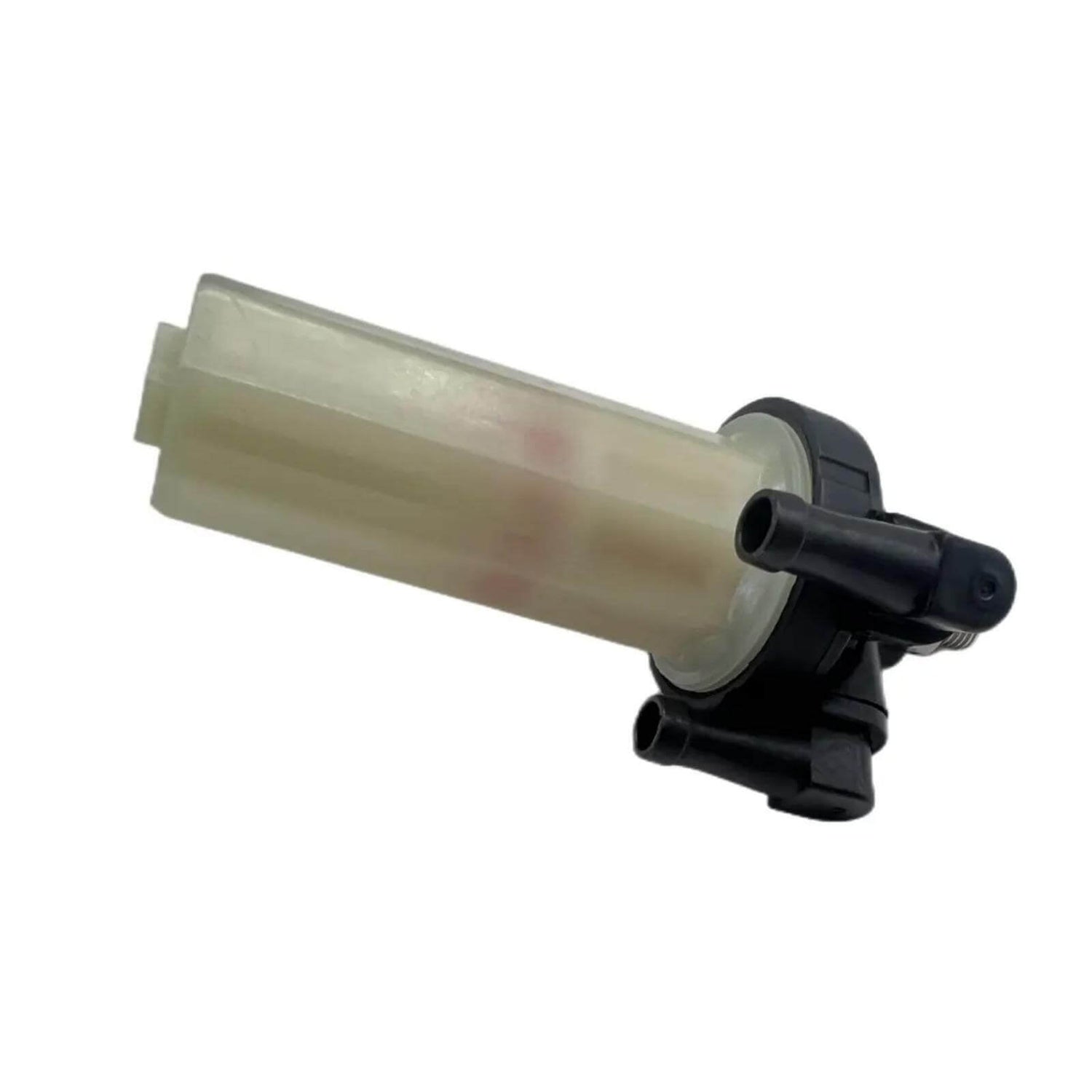

This is a complete Yamaha Outboard Fuel Filter Assembly designed for reliable performance in Yamaha 4-Stroke outboards from 30 HP to 115 HP (2005–present). It ensures clean fuel delivery by effectively filtering out contaminants, protecting your engine's sensitive fuel system components. This assembly fits standard 8mm (5/16") fuel lines.
It serves as a direct replacement for Yamaha part numbers 68V-24560-00, 68V-24560-01, 6D8-24560-08, and 6D8-24560-09, offering a precise fit and seamless integration.
- Installs in-line with your existing fuel system.
- Features a transparent filter cup for easy visual inspection of fuel quality and contaminants.
- Comes complete with the filter, cup, and O-ring for a full replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 68V-24560-00-00 | 6D8-24560-08-00 | |
| Yamaha | 68V-24560-01-00 | 6D8-24560-08-00 | |
| Yamaha | 6D8-24560-08-00 | Current part number | |
| Yamaha | 6D8-24560-09-00 | Alternative current part |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This fuel filter assembly is designed for a wide range of Yamaha 4-stroke outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | Outboard | 30 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 40 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 50 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 60 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 75 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 80 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 90 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 100 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | Outboard | 115 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
Technical Specs
- Product Type
- Fuel Filter Assembly
- Installation
- In-line
- Fuel Type
- Gasoline
- Connection
- 8mm (5/16")
- Fitting Type
- Barbed nipple
- Housing Material
- Plastic with transparent filter cup
- Housing Color
- Black with clear viewing window
- Other Technical Attributes
- Genuine OEM part
- Warranty
- Manufacturer warranty
What’s in the Box
- 1 x Filter Assembly (Replaces 6D8-24560-08-00)
- 1 x Filter Cup (Replaces 68V-24521-01-00/68V-24521-00-00)
- 1 x O-Ring (Replaces 93210-32738-00)
Installation Notes
- Shut off the fuel supply using the fuel cock or by disconnecting the line from the tank. Place a rag or container under the old filter to catch any spilled fuel.
- Loosen the hose clamps securing the inlet and outlet fuel lines to the filter.
- Carefully twist and pull the fuel lines off the old filter. Note the direction-of-flow arrow on the old filter housing for reference.
- Position the new filter assembly, making sure the arrow on the housing points in the direction of fuel flow (towards the engine).
- Connect the inlet and outlet fuel lines to the corresponding barbed fittings on the new filter and securely tighten the hose clamps.
- Prime the fuel system by squeezing the primer bulb until it feels firm. Thoroughly inspect the filter and connections for any signs of leaks.
Troubleshooting & FAQ
How do I know if this filter fits my Yamaha outboard?
This filter is designed for Yamaha 4-stroke outboards from 30 to 115 HP, generally from 2005 to present. The best way to confirm fitment is to check your engine's service manual or existing part for a number that matches one of the cross-references: 68V-24560-00, 68V-24560-01, 6D8-24560-08, or 6D8-24560-09.
What are signs of a clogged fuel filter?
Common symptoms of a restricted fuel filter include engine hesitation, sputtering, loss of power especially at high RPMs, stalling at idle, or difficulty starting. You might also notice debris or water collecting in the clear filter bowl.
How often should I replace my outboard fuel filter?
For optimal engine health and performance, it is highly recommended to replace the fuel filter annually or every 100 hours of operation, whichever occurs first. If you frequently operate in areas with questionable fuel quality, more frequent changes may be necessary.
Can I clean the filter element instead of replacing it?
No, the filter element within this assembly is not designed to be cleaned or reused. Cleaning can damage the fine filter media and may not remove all embedded contaminants, risking engine damage. Always replace the entire assembly or the appropriate filter element if applicable.
Is the O-ring included?
Yes, this is a complete assembly that includes the new filter housing, a pre-installed filter element, the transparent cup, and the necessary O-ring for a leak-free seal.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
