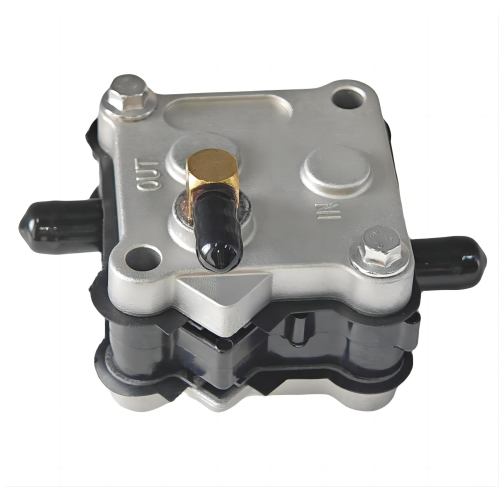

Fuel Pump Assembly – Fits Mercury/Mariner 30-300 HP 2-Stroke (Replaces 14360A78, 14360A73, 14360A43)

Product Details

This Fuel Pump Assembly – Fits Mercury/Mariner 30-300 HP 2-Stroke Outboards (Replaces 14360A78, 14360A73, 14360A43) is a mechanical, pulse-driven unit designed for a wide range of Mercury and Mariner 2-stroke outboard engines from 30 HP to 300 HP, covering models from approximately 1992 to 2009. It is engineered as a direct-fit replacement to restore reliable fuel delivery.

It serves as a direct interchange for several original equipment part numbers, including the primary 14360A78 series, along with 14360A73, 14360A71, 14360A43, and others, ensuring broad compatibility.

• Installation Method: Direct OEM-style replacement.
• Primary Application: 2-stroke outboard marine engines.
• Included Essentials: Comes with a new mounting gasket for a complete installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury and Mariner models, it is critical to verify your engine's serial number falls within the ranges specified in the 'Notes' column to ensure correct fitment.

Technical Specs

Product Type

Mechanical Fuel Pump Assembly

Installation

Direct OEM replacement

Fuel Type

Gasoline

Connection

Fuel hose barb fittings

Housing Material

Metal (cast aluminum) with rubber diaphragm

Housing Color

Silver/metallic

Dimensions

Approximately 10 × 9 × 6 cm (4 × 3.5 × 2.4 in)

Weight

227 g (0.5 lb)

Fitting Type

Barbed hose connection

Other Attributes

Pulse-driven diaphragm design for 2-stroke applications

What’s in the Box

• 1 x Fuel Pump Assembly
• 1 x Mounting Gasket (98769-1)

Installation Notes

1. Disconnect the battery and ensure the engine is cool. Relieve any pressure in the fuel system safely.
2. Place rags under the old fuel pump to catch any spilled fuel. Note the orientation of fuel lines.
3. Carefully disconnect the fuel inlet, outlet, and pulse hoses from the pump.
4. Unbolt and remove the old fuel pump assembly from the engine block.
5. Clean the mounting surface on the engine, ensuring no old gasket material remains.
6. Position the new gasket and fuel pump assembly, then securely tighten the mounting bolts to the manufacturer's specified torque.
7. Reconnect the fuel and pulse hoses to the correct fittings on the new pump. Secure all clamps.
8. Reconnect the battery. Prime the fuel system using the primer bulb until firm, and check thoroughly for any leaks before starting the engine.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
