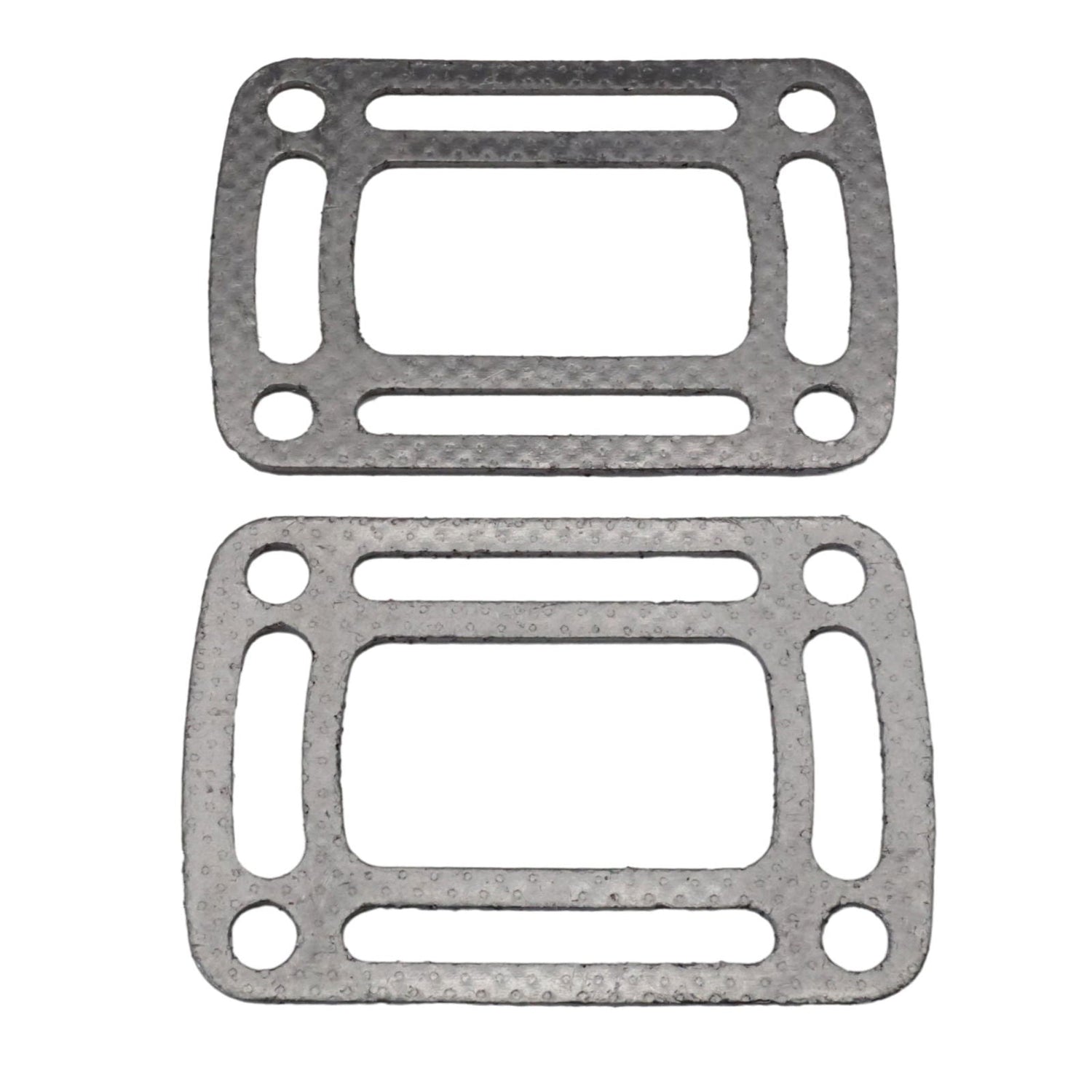

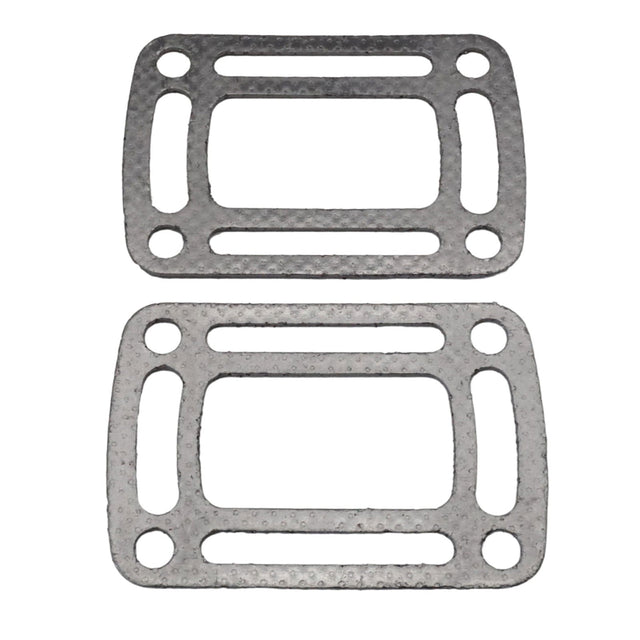

Exhaust Elbow Gasket – Fits Volvo Penta & OMC 160-454 HP (Replaces 3863191, 3850496)

Product Details

This high-quality Exhaust Elbow Gasket – Fits Volvo Penta & OMC Stern Drive/Inboard is designed to create a reliable seal in your marine exhaust system. It is compatible with a wide range of Volvo Penta V6 and V8 engines (160–430 HP) as well as various OMC stern drive (185–350 HP) and inboard (305–454 HP) models.

It serves as a direct replacement for Volvo Penta parts 3850496/3863191; OMC parts 351325/3850496/909786/913783; and aftermarket equivalents from Sierra, GLM, Mallory, Barr, and OSCO.

• Direct fit for straightforward installation.
• Made from high-temperature material to withstand harsh marine exhaust environments.
• Includes two gaskets to complete the job.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Fits a variety of V6 and V8 stern drive and inboard engines from Volvo Penta.

Fits a range of OMC stern drive models.

Fits a range of OMC inboard models.

Technical Specs

Product Type

Exhaust Elbow Gasket

Installation

Direct fit

Material

High-temperature gasket material

Application

Exhaust system sealing

Quantity

2 pieces per package

Configuration

Rectangular with rounded corners, 4-bolt pattern

Fitting Type

4-bolt pattern

Operating Temperature

Suitable for marine exhaust applications

Other Technical Attributes

Manufactured to OEM specifications in ISO9002 certified factory

What’s in the Box

• 2 x Exhaust Elbow Gasket (3850496, 3863191)

Installation Notes

1. Ensure the engine is completely cool and disconnect the battery for safety.
2. Drain coolant from the exhaust manifold if required by your service manual.
3. Carefully loosen and remove the bolts securing the exhaust elbow to the manifold.
4. Remove the old gasket. Be prepared for it to be brittle or adhered to the metal.
5. Thoroughly clean both mating surfaces. Use a plastic scraper and appropriate solvent to remove all old gasket material and corrosion.
6. Position the new gasket, ensuring all bolt holes line up perfectly.
7. Re-attach the exhaust elbow and tighten the bolts in a crossing pattern to the manufacturer's specified torque.
8. Reconnect any hoses, refill coolant if drained, and reconnect the battery.
9. Start the engine and carefully inspect for any exhaust or water leaks around the sealed joint.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
