Product Details
This complete Water Pump Impeller Kit – Fits Honda Outboard 35-50 HP (Replaces 06193-ZV5-020) provides everything needed to restore the cooling system on Honda 4-Stroke BF35A, BF40A, BF40D, BF45A, BF50A, and BF50D outboard engines from all model years. It ensures proper water circulation to prevent overheating.
It serves as a direct replacement for Honda part numbers 06193-ZV5-020, 06193-ZV5-000, 06193-ZV5-010, and the superseding part 06193-ZV5-040, as well as aftermarket equivalents like Sierra 18-3282 and Mallory 9-48702.
- Engineered for direct OEM replacement fit and function.
- Features a flexible neoprene rubber impeller and marine-grade alloy housing for durability.
- Installation requires lubrication with silicone grease, glycerin, or dish soap (do not run pump dry).
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Honda | 06193-ZV5-020 | 06193-ZV5-040 |
| Honda | 06193-ZV5-000 | |
| Honda | 06193-ZV5-010 | |
| Sierra | 18-3282 | |
| Mallory | 9-48702 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is designed exclusively for the following Honda outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Honda | BF35A | 35 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
| Honda | BF40A | 40 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
| Honda | BF40D | 40 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
| Honda | BF45A | 45 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
| Honda | BF50A | 50 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
| Honda | BF50D | 50 | 4-Stroke | All years | 06193-ZV5-020 | Superseded by 06193-ZV5-040 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct OEM replacement
- Housing Material
- Marine-grade metal alloy
- Impeller Material
- Neoprene rubber
- Dimensions
- Impeller outer diameter: 55 mm, Width: 20 mm, Inner diameter: 17.2 mm
- Number of Blades
- 6
- Operating Temperature
- Provides improved flexibility across broad temperature ranges
- Other Technical Attributes
- Do not run pump dry; lubricate with silicone grease, glycerin, or dish soap when installing

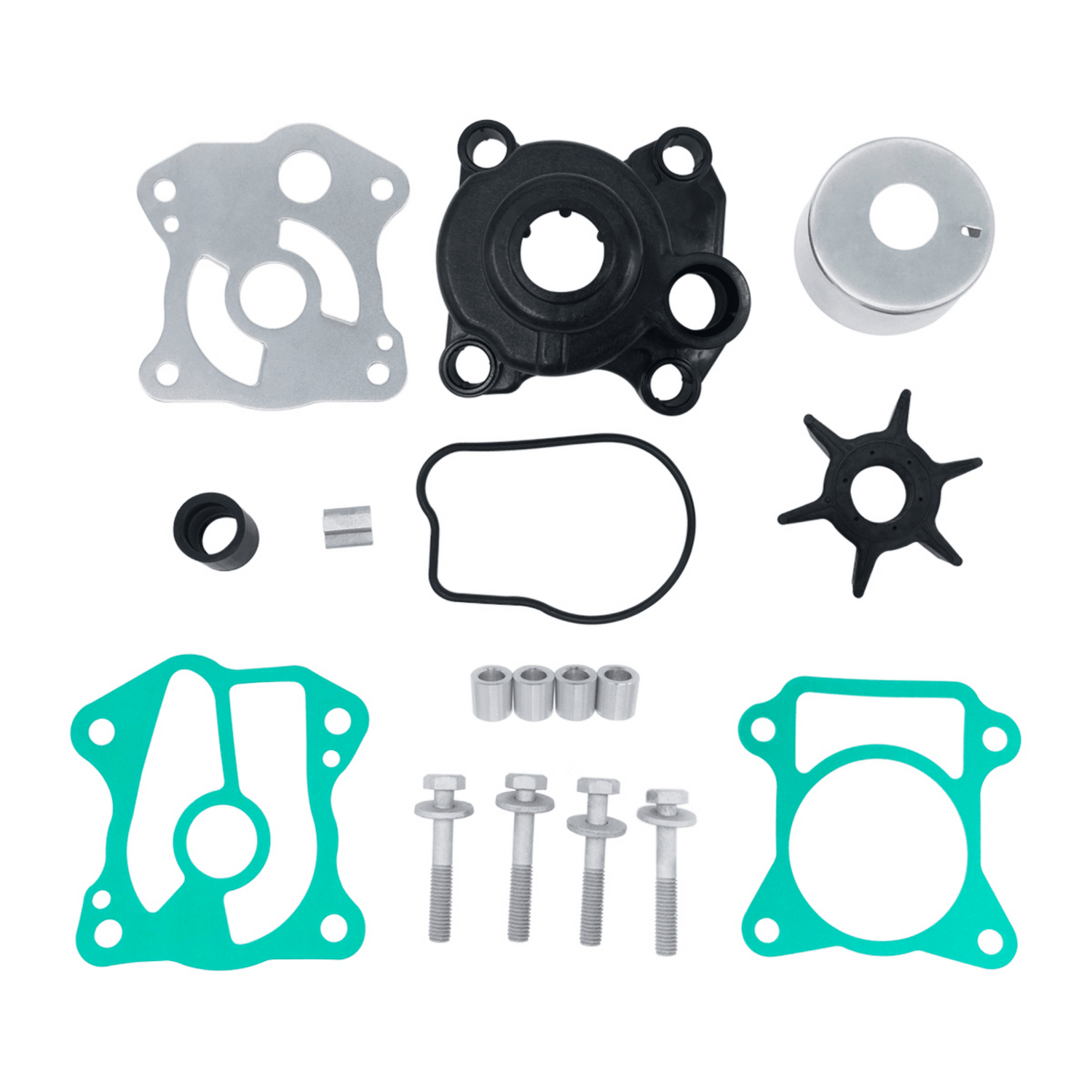

What’s in the Box
- 1 x Water Pump Impeller (19210-ZV5-003/Sierra 18-3248)
- 1 x Seal (91356-ZV5-000)
- 1 x Impeller Key, Driveshaft (90752-ZV5-003/90752-ZV5-000)
- 1 x Water Pump Gasket (19233-ZV5-000)
- 1 x Housing (19221-ZV5-000)
- 1 x Housing Insert (19223-ZV5-000)
- 1 x Impeller Cover Plate (19231-ZV5-000)
- 1 x Pump Gasket (19242-ZV5-000)
- 1 x Water Tube Seal (19253-ZV5-000)
- 1 x O-Ring (91356-ZV5-000)
- 4 x Collar (91555-ZV5-000)
- 4 x Bolt (90103-ZY1-000)
Installation Notes
- Disconnect the negative battery cable for safety.
- Place a drain pan under the lower unit and remove the drain screw to empty the gear oil.
- Remove the bolts connecting the lower unit (gearcase) to the upper driveshaft housing.
- Carefully lower the gearcase to access the water pump assembly.
- Unbolt and remove the water pump housing, noting the position of all parts.
- Remove the old impeller, gaskets, wear plate, and seals. Clean all mating surfaces thoroughly.
- Install the new gaskets, seals, and wear plate from the kit.
- Apply a light coat of silicone grease, glycerin, or dish soap to the inside of the housing and the new impeller.
- Slide the new impeller onto the driveshaft, installing the new driveshaft key. Ensure blades are oriented in the direction of driveshaft rotation.
- Reinstall the housing and tighten bolts to the manufacturer's specified torque.
- Reattach the lower unit to the upper housing, and refill with fresh gear oil using new drain-plug gaskets.
- Reconnect the battery. Before starting, ensure the engine is in water. Verify a strong, steady stream of water from the tell-tale outlet immediately after starting.
Troubleshooting & FAQ
What are the signs of a failing water pump impeller?
The most common signs include the engine overheating at idle or low speeds, or a weak, inconsistent, or non-existent water stream from the "tell-tale" outlet port.
How often should I replace the impeller?
For preventative maintenance, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of use, whichever comes first. Service interval depends heavily on operating conditions (e.g., saltwater, silty water).
Can I test the engine out of water after installing the kit?
No. Never run the engine with a new or existing impeller without a water supply. Running the pump dry for even a few seconds can generate enough heat to damage or destroy the neoprene rubber impeller.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. All parts are manufactured in an ISO 9002 facility and are batch-inspected for quality and consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options will appear at checkout where available for your location.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal use. If you experience an issue, please contact our support team with your order details. Returns are accepted within our standard window, provided the item is unused and in its original condition. See our full policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
