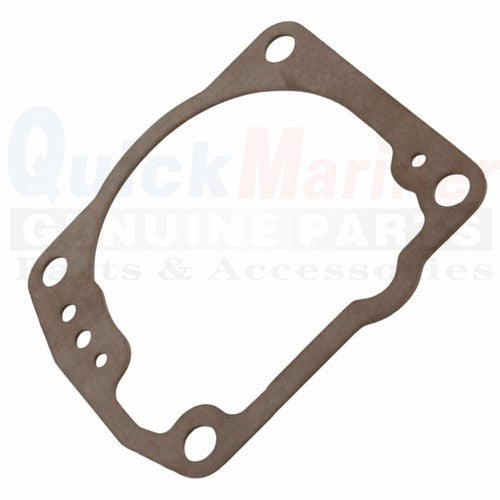

Carburetor Bowl Gasket – Fits Johnson Evinrude 90HP 100HP 112HP 115HP 130HP 140HP 150HP 175HP 60° V6 (Replaces 335070, 0335070)

Product Details

This Carburetor Bowl Gasket is designed for Johnson Evinrude 90HP 100HP 112HP 115HP 130HP 140HP 150HP 175HP 60° V6 outboard engines manufactured from 1994 onward. Engineered to create a reliable seal between the carburetor float bowl and the body, this gasket prevents fuel leaks and maintains proper carburetor function across multiple horsepower configurations.

This gasket directly replaces OEM part numbers 335070 and 0335070, offering a dependable aftermarket solution for routine carburetor maintenance and rebuilds.

• Constructed from heat-resistant and oil-resistant material for durability in marine fuel systems
• Used with 433000 float bowl assembly
• Fits most Johnson/Evinrude 60° V6 engines from 1991 to 2006

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Technical Specs

Material

Heat-resistant & oil-resistant composite

Compatible Float Bowl

433000

Engine Configuration

60° V6

Primary Fitment Years

1994 and later

Extended Compatibility

Most engines 1991–2006

What's in the Box

• 1× Float Bowl Gasket

Installation Notes

1. Disconnect the fuel supply and relieve residual pressure from the carburetor system.
2. Remove the float bowl retaining screws and carefully lower the bowl from the carburetor body.
3. Clean the mating surfaces on both the bowl and carburetor housing to remove old gasket material, fuel deposits, and debris.
4. Position the new gasket onto the float bowl or carburetor base, aligning all screw holes.
5. Reinstall the float bowl and torque the retaining screws evenly in a crisscross pattern to avoid distortion.
6. Reconnect the fuel supply, check for leaks, and run the engine briefly to confirm proper sealing.

Troubleshooting & FAQ

How do I know if my carburetor bowl gasket needs replacement?

Common signs include fuel seepage around the bowl seam, rough idling, fuel odor, or visible cracks and hardening of the existing gasket. Replace gaskets whenever disassembling the carburetor for cleaning or rebuild.

Can I reuse the old gasket if it looks intact?

No. Gaskets compress and conform to sealing surfaces during use and lose their ability to seal properly once removed. Always install a new gasket when reassembling carburetor components.

Will this gasket fit my 1993 Johnson 115HP?

Primary fitment is for 1994 and later models. Some engines from 1991–1993 may be compatible if they use the 433000 float bowl, but verify your carburetor assembly against the OEM parts diagram before ordering.

What torque specification should I use for the float bowl screws?

Consult your engine's service manual for exact torque values. Typically, carburetor bowl screws require moderate torque applied evenly in a crisscross sequence to prevent gasket distortion and leaks.

Is this gasket compatible with ethanol-blended fuels?

Yes. The heat-resistant and oil-resistant material is formulated to withstand modern ethanol-blend fuels (E10) commonly used in marine engines.

How many gaskets do I need for a V6 engine?

A 60° V6 engine typically has three carburetors, requiring three float bowl gaskets. This listing includes one gasket; order the quantity needed for your complete rebuild.

Safety & Important Info

• Verify images/specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
