Fuel Line Assembly with Primer Bulb – Fits Yamaha Outboard Motors 4–200 HP (Replaces 6Y1-24306-55, 61J-24306-04-00, 6Y2-24306-56)
Fuel Line Assembly with Primer Bulb – Fits Yamaha Outboard Motors 4–200 HP (Replaces 6Y1-24306-55, 61J-24306-04-00, 6Y2-24306-56) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Fuel Line Assembly with Primer Bulb – Fits Yamaha Outboard Motors 4...
Product Details

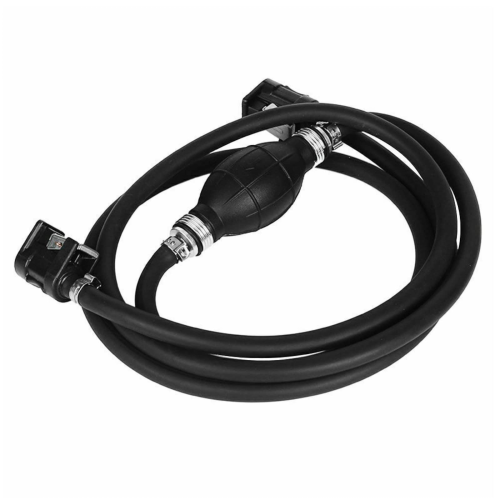

This complete Fuel Line Assembly with Primer Bulb is designed for a wide range of outboard motors, including Yamaha (4–200 HP, 2-Stroke & 4-Stroke, 1988–1998), Mercury/Mariner (4–200 HP, pre-1998), and Johnson/OMC (4–200 HP) models. It provides a reliable external connection from the fuel tank to the engine.
This assembly is a direct replacement for Yamaha part numbers 6Y1-24306-55, 61J-24306-04-00, 6Y2-24306-56, and Sierra 18-8017EP-2.
- Installs externally using quick-connect fittings for fast setup.
- Compatible with gasoline, including modern ethanol-blended fuels.
- Includes an integrated primer bulb with an internal check valve to ensure proper, unidirectional fuel flow.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6Y1-24306-55 |
| Yamaha | 6Y1-24306-55-00 |
| Yamaha | 61J-24306-04-00 |
| Yamaha | 6Y2-24306-56 |
| Yamaha | 6Y2-24306-56-00 |
| Sierra | 18-8017EP-2 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Owners: This part fits a wide array of 2-stroke and 4-stroke models from 4 HP to 200 HP, primarily manufactured between 1988 and 1998.
For Mercury/Mariner Owners: Compatibility generally covers 4 HP to 225 HP 2-stroke models, mainly pre-1998, that use standard Mercury fuel connections.
For Johnson/OMC Owners: Fits various 4 HP to 200 HP 2-stroke models equipped with standard fuel line connections.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F4 | 4 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F5 | 5 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F6 | 6 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F8 | 8 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F9.9 | 9.9 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F15 | 15 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 15EL/ES/L/ML/MS/S | 15 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 25EL/ES/L/ML/MS/S | 25 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | T25 | 25 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 30EL/ES/L/ML/MS/S | 30 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C30EL/F30TL/T30 | 30 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 40EL/ES/L/ML/MS/S/TL | 40 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C40EL/MS/TL | 40 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | F40E/M/TL | 40 | 4-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | E48ML | 48 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 50EJ/ES/EL/ET/TL | 50 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C50TL/F50TL/P50TL | 50 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | PR50L/PRO50L/T50TL | 50 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C55/CV55 | 55 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 60TL/E60/F60T/P60T/T60TL | 60 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 70ET/TL/TR | 70 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C70TL | 70 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | E75M | 75 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C85T/CV85E | 85 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | 90ET/TJ/TL | 90 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | C90TL | 90 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | |
| Yamaha | Various Models | 95-200 | 2-Stroke | 1988–1998 | 6Y1-24306-55-00 | Includes 115, 130, 140, 150, 175, 200 HP models |
| Mercury | Various Models | 4-225 | 2-Stroke | Pre-1998 | Compatible with standard Mercury fuel connections | |
| Mariner | Various Models | 4-200 | 2-Stroke | 1990 onwards | Compatible with standard Mariner fuel connections | |
| Johnson | Various Models | 4-200 | 2-Stroke | Compatible with standard Johnson fuel connections | ||
| OMC | Various Models | 4-200 | 2-Stroke | Compatible with standard OMC fuel connections |
Technical Specs
- Product Type
- Complete Fuel Line Assembly with Primer Bulb
- Installation
- External; connects fuel tank to outboard motor
- Fuel Type
- Gasoline, including ethanol blends
- Connection
- Quick-connect fittings
- Housing Material
- Rubber hose with brass fittings
- Housing Color
- Black
- Dimensions
- Length: 6.5 ft (198 cm); Inner Diameter: 5/16" (8 mm)
- Weight
- 0.78 lb (0.35 kg)
- Fitting Type
- Marine quick connect
- Other Technical Attributes
- Includes primer bulb with check valve for unidirectional fuel flow
- Warranty
- 30-day return policy (seller dependent)
What’s in the Box
- 1 x Complete Fuel Line Assembly with Primer Bulb (6Y1-24306-55-00)
- 1 x Primer Bulb (integrated)
- 2 x Marine Quick Connect Fittings (integrated)
- 2 x Stainless Steel Hose Clamps
Installation Notes
- Ensure the engine is off and the work area is well-ventilated. Disconnect the battery for safety.
- Carefully disconnect the old fuel line from both the fuel tank and the outboard motor. Have a rag ready to catch any residual fuel.
- Attach the new fuel line assembly. Connect the appropriate end to the fuel tank's outlet.
- Connect the other end of the fuel line to the motor's fuel inlet. Ensure both quick-connect fittings click securely into place.
- Squeeze the primer bulb repeatedly until it feels firm, indicating that fuel has filled the line.
- Inspect the entire line, primer bulb, and all connection points for any signs of leaks before starting the engine.
Troubleshooting & FAQ
How do I confirm this fuel line fits my engine?
Check the Part Number Matrix for cross-references and review the Engine & Model Compatibility tables. It's crucial to match your engine's brand, model, horsepower, and year range.
Is this hose compatible with modern ethanol-blended gasoline?
Yes, this fuel line assembly is constructed with materials designed to resist degradation from ethanol-blended fuels like E10.
What are the signs that my old fuel line needs to be replaced?
Common signs of failure include visible cracks, brittleness, a primer bulb that won't stay firm or is slow to return to shape, and fuel leaks or odors around the hose and fittings.
How often should a marine fuel line assembly be replaced?
There is no fixed interval, but regular inspection is key. We recommend replacing it every few years as preventative maintenance or immediately if you notice any signs of wear, damage, or leaks.
The primer bulb feels soft and won't prime the engine. What should I do?
Ensure the arrow on the primer bulb is pointing in the direction of fuel flow (from the tank to the engine). Check that all connections are airtight and that the fuel tank is properly vented. A soft bulb may indicate a leak in the line or a faulty check valve.
Can I cut this hose to a shorter length?
We do not recommend modifying the assembly. Cutting the hose would require re-installing the end fittings, which can compromise the seal and lead to dangerous fuel leaks if not done professionally.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it is batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
