Water Pump Repair Kit – Fits Johnson/Evinrude 85-300 HP V4/V6/V8 Outboards (Replaces 5001594, 390768)

$41.85

Worry-free returns

Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.


If the return is due to our error or a defective item, we’ll make it right.


Please contact us before returning any item.

Delivery and Shipping

Orders are typically processed within 1–2 business days.


U.S. orders usually arrive within 6–15 days, depending on stock location and destination.


International delivery times may vary due to customs processing.


Tracking information will be provided once your order ships.

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This comprehensive Water Pump Repair Kit - Fits Johnson/Evinrude 85-300 HP V4/V6/V8 Outboards (Replaces 5001594, 390768) fits a wide range of Johnson/Evinrude 2-Stroke 85-300 HP V4, V6, and V8 outboard engines manufactured between 1979 and 2006. Please note, it is not compatible with SL models.

It serves as a direct interchange for Johnson/Evinrude OEM part 5001594 (which supersedes 434421 and 777800) and aftermarket equivalents including Sierra 18-3392, GLM 12102, and Mallory 9-48203.

  • Designed for direct OEM replacement to ensure proper fit and function.
  • Includes all essential components for a complete overhaul: impeller, housing, key, gaskets, and o-rings.
  • Built with durable metal and composite materials for longevity in marine environments.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket brands.

Brand Part Number Notes
Johnson/Evinrude 5001594 Supersedes 434421, 777800, 390768, 391637, 392750, 393082, 395060, 395062, and 435447
Sierra 18-3392 Aftermarket Interchange
GLM 12102 Aftermarket Interchange
Mallory 9-48203 Aftermarket Interchange

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Johnson/Evinrude owners, this kit covers a broad range of V4, V6, and V8 models. Pay close attention to specific year ranges and notes regarding shaft length or model suffixes to ensure an exact match.

Brand Model Rated HP Stroke Years OEM Part No. Notes
Johnson/Evinrude V4 & V6 85-90 2-Stroke 1979–1981 5001594 Superseded 390768, 391637, 392750
Johnson/Evinrude V4 100 2-Stroke 1979–1980 5001594 Superseded 393082, 395060, 395062
Johnson/Evinrude V4 115 2-Stroke 1979–1981 5001594
Johnson/Evinrude V4 120-140 2-Stroke 1985–1992 5001594
Johnson/Evinrude V4 120-140 2-Stroke 1993 5001594 20" & 25" shaft "S" suffix models
Johnson/Evinrude V4 120-140 2-Stroke 1994–2000 5001594 20" shaft models
Johnson/Evinrude V4 135 2-Stroke 2001 5001594 20" shaft models
Johnson/Evinrude V4 140 2-Stroke 1979–1981 5001594
Johnson/Evinrude V6 150-175 2-Stroke 1979–1981 5001594
Johnson/Evinrude V6 150-175 2-Stroke 1993 5001594 20" shaft models
Johnson/Evinrude V6 150-175 2-Stroke 1996–1999 5001594 "GL" "PL" & "SPL" models
Johnson/Evinrude V6 200-235 2-Stroke 1979–1981 5001594
Johnson/Evinrude V6 200-225 2-Stroke 1986–1992 5001594
Johnson/Evinrude V6 200-225 2-Stroke 1993–1997 5001594 20" shaft models
Johnson/Evinrude V6 200-225 2-Stroke 1998 5001594 "GL" "SL" & "STL" models
Johnson/Evinrude V6 200-225 2-Stroke 1999 5001594 20" shaft models
Johnson/Evinrude V6 200-225 2-Stroke 2000 5001594 "HG" & "HGL" models
Johnson/Evinrude V6 DI 200-225 2-Stroke Direct Injection 1999 5001594 20" shaft models
Johnson/Evinrude V8 250-300 2-Stroke 1979–1981 5001594
Johnson/Evinrude V4-V8 85-300 2-Stroke 1982–1992 5001594 All V4, V6, and V8 outboards
Johnson/Evinrude V4 Crossflow 90-115 2-Stroke 1995–2006 5001594 Except SL model
Johnson/Evinrude V4 Crossflow 20"-25" 2-Stroke 1993–1998 5001594

Technical Specs

Product Type
Water Pump Repair Kit with Housing
Installation
Direct OEM replacement
Housing Material
Metal and composite materials
Housing Color
Silver/Black
Kit Contents
Includes impeller, housing, key, gaskets, and o-rings
Warranty
Varies by manufacturer (typically 12 months)

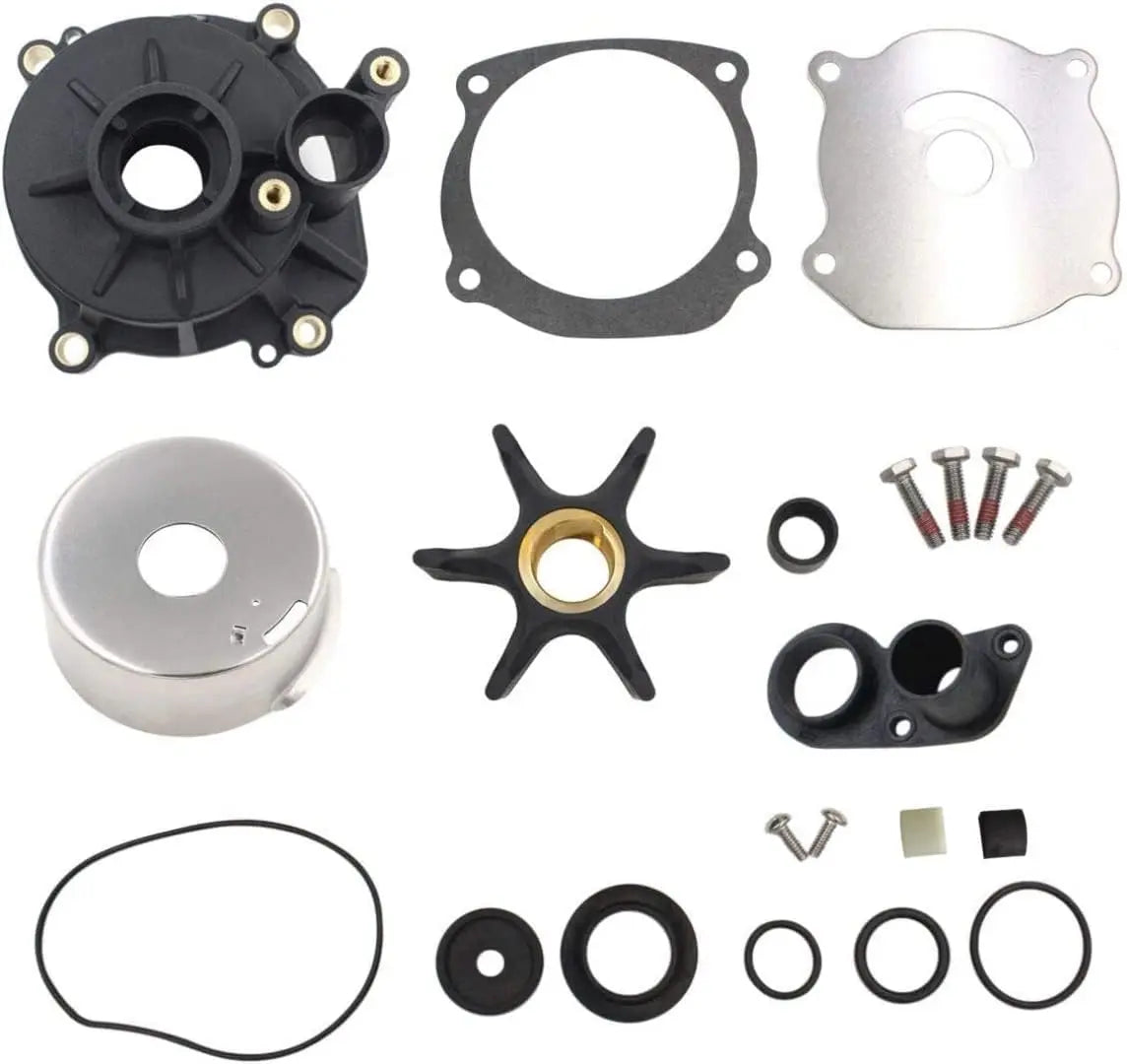

What’s in the Box

  • 1 x Impeller
  • 1 x Housing
  • 1 x Key
  • 1 x Tapered rubber seal
  • Multiple gaskets and o-rings for a complete installation

Installation Notes

  1. Ensure the engine is off and disconnect the battery cables for safety.
  2. Remove the lower unit (gearcase) bolts and carefully lower it from the outboard's midsection.
  3. Unscrew the bolts holding the old water pump housing and remove the housing, impeller, gaskets, and key.
  4. Thoroughly clean the driveshaft, base plate, and all mating surfaces of any old gasket material or debris.
  5. Install the new gaskets, plate, and key. Slide the new impeller onto the driveshaft (rotating it in the direction of engine operation can help).
  6. Position the new housing over the assembly. Lightly grease the bolts and tighten them to the manufacturer's recommended torque specifications.
  7. Re-install the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly.
  8. Once secured, reconnect the battery and test the engine in a suitable water source, confirming a steady stream from the cooling system's tell-tale outlet.

Troubleshooting & FAQ

How do I identify a failing water pump?

Common signs include a weak, intermittent, or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, or a noticeable drop in performance. Upon inspection, a worn impeller may appear brittle, cracked, have broken blades, or be permanently deformed.

What is the recommended replacement interval for this kit?

For preventative maintenance and to avoid engine damage, we recommend replacing your water pump impeller and gaskets every 1-2 years or every 100-200 hours of use. In harsh saltwater or sandy/silty conditions, annual replacement is advised.

Will this kit fit my Johnson/Evinrude "SL" model?

No. The compatibility data for this kit explicitly excludes "SL" models. Please double-check your engine's specific model number against our compatibility table before ordering.

Is the pump housing included in this repair kit?

Yes, this is a complete repair kit that includes the water pump housing, impeller, key, gaskets, seals, and o-rings necessary for a full replacement.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

  • Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
  • This is an aftermarket replacement, not an OEM component.
  • Professional installation is recommended for safety and performance.
