Water Pump Repair Kit – Fits Mercury/Mariner Outboards 75-225HP & MerCruiser Alpha One (Replaces 96148Q8, 46-96148A8)

Product Details

This Water Pump Repair Kit – Fits Mercury/Mariner Outboards 75-225HP & MerCruiser Alpha One Stern Drives provides all the necessary components to service and restore your engine's cooling system. It is designed for a broad range of Mercury/Mariner 75-225HP 2-stroke outboards (4-cylinder and V6) and MerCruiser Pre-Alpha, R, MR, and Alpha One stern drives manufactured between 1970 and 1990.

This kit serves as a direct cross-reference for multiple part numbers, including Mercury 96148Q8, 46-96148A8, 96148T8, 96148B8, 96148A5; Sierra 18-3217, 18-3316, 18-3517; Quicksilver 96148Q8; and Marinepro 96148Q8.

• Installation is a direct replacement for the original parts; follow your factory service manual for detailed instructions.
• Constructed with a marine-grade key plate, durable PA66 nylon plastic housing, and a neoprene rubber impeller for reliable performance in marine environments.
• Includes all essential seals, gaskets, and hardware for a complete water pump rebuild.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury/Mariner outboards, check that your engine's serial number falls within the specified range.

For MerCruiser stern drives, verify the model, year, and serial number range.

Technical Specs

Product Type

Water Pump Repair Kit

Installation

Direct replacement; follow factory service manual

Connection

Direct installation to water pump housing

Housing Material

Marine grade key plate and cup, nylon PA66 plastic housing

Housing Color

Black/Natural

Dimensions

Package: 152mm × 101mm × 80mm (5.98" × 3.98" × 3.15")

Weight

0.30kg (10.72 oz)

Fitting Type

Direct fit

Warranty

30-day return guarantee

Other Technical Attributes

Neoprene rubber water pump impeller, CR neoprene rubber impeller seals

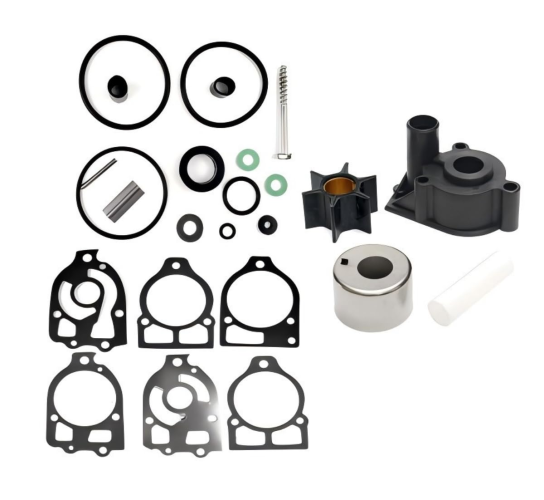

What’s in the Box

• 1 x Water Pump Impeller (46-96148A8)
• 1 x Impeller Housing
• 1 x Impeller Key
• 1 x Face Plate
• 2 x Gaskets
• 1 x Seal
• 1 x Water Tube Guide Sleeve
• 1 x O-ring
• 2 x Drain Plug Washers

Installation Notes

1. Disconnect the negative battery cable and ensure the engine is off and cool to the touch.
2. Place the lower unit in a suitable stand after removing it from the outboard or stern drive.
3. Carefully remove the bolts securing the water pump housing and lift it off to expose the old components.
4. Thoroughly clean all mating surfaces, ensuring no old gasket material, sealant, or debris remains.
5. Install the new gaskets, face plate, impeller, and key from the kit. Be sure to orient the impeller vanes in the correct rotational direction (typically by turning the driveshaft clockwise while sliding the housing down).
6. Reassemble the water pump housing and tighten the bolts to the manufacturer's specified torque.
7. Reinstall the lower unit onto the engine.
8. Reconnect the battery, start the engine in a water source (using a flusher or in the water), and immediately check for a steady water stream from the tell-tale outlet.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
