Water Pump Impeller Repair Kit with Plate for Suzuki DT20–DT40C and...
Water Pump Impeller Repair Kit with Plate for Suzuki DT20–DT40C and DF25–DF50 Outboards is backordered and will ship as soon as it is back in stock.
Product Details

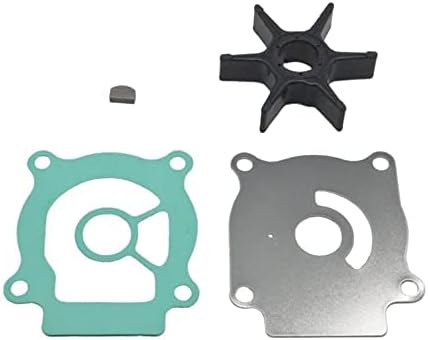

This water pump impeller repair kit with plate is designed for selected Suzuki DT and DF outboard motors. It helps restore water-pump service components and support reliable engine cooling when the original impeller or plate is worn.
The kit is an aftermarket replacement associated with Suzuki reference numbers 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, and 17400-96404. It is also cross-referenced by the aftermarket number 18-3242. Always confirm the exact engine model and year before ordering.
- Replacement water-pump service components for compatible Suzuki outboards.
- Includes a water-pump impeller and matching plate.
- Suitable for the specific two-stroke and four-stroke applications listed below.
- Designed for service installation in the outboard lower-unit water-pump assembly.
Part Number Matrix
Use the references below as cross-reference information only. Part-number presence does not replace model, year, and engine-configuration verification.
| Brand or Source | Reference Number |
|---|---|
| Suzuki | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Aftermarket cross-reference | 18-3242 |
Engine & Model Compatibility
The company fitment records identify the following Suzuki applications. Keep each model, year range, horsepower, and stroke condition together when checking compatibility.
| Brand | Model | Rated HP | Stroke | Years | Reference Numbers |
|---|---|---|---|---|---|
| Suzuki | DT20 | 20 | 2-Stroke | 1985–1988 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DT25C | 25 | 2-Stroke | 1984–2000 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DT30C | 30 | 2-Stroke | 1984–1997 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DT35 | 35 | 2-Stroke | 1983–1998 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DT40C | 40 | 2-Stroke | 1983–1998 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DF25 | 25 | 4-Stroke | 2000–2007 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DF30 | 30 | 4-Stroke | 2000–2007 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DF40 | 40 | 4-Stroke | 1999–2010 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
| Suzuki | DF50 | 50 | 4-Stroke | 1999–2010 | 17400-96350, 17400-96351, 17400-96352, 17400-96353, 17400-96354, 17400-96400, 17400-96401, 17400-96402, 17400-96403, 17400-96404 |
Technical Specs
- Product Type
- Water pump impeller repair kit with plate
- Application
- Selected Suzuki DT20–DT40C 2-stroke and DF25–DF50 4-stroke outboard motors
- Installation
- Replacement service component for the water-pump assembly
- Included Components
- Water-pump impeller and plate
- Housing
- Water-pump housing is not identified as included in the company product records
- Manufacturer Status
- Aftermarket replacement; not a Suzuki-manufactured OEM component
What’s in the Box
- 1 x Water-pump impeller
- 1 x Matching water-pump plate
No key, gasket, wear plate, housing, or other components are listed as included in the matching company product records. Confirm the contents against the product image and your original assembly before installation.
Installation Notes
- Disconnect the battery and follow the applicable Suzuki service manual safety procedures.
- Remove the lower unit according to the procedure for your exact engine model and year.
- Remove the water-pump cover and inspect the impeller, plate, cover, drive key, gaskets, and surrounding components.
- Clean the mating surfaces and remove debris before installing replacement components.
- Install the replacement plate and impeller in the same orientation as the original parts. Reuse or replace any separate hardware, key, or gasket as required by the service manual; these items are not listed as included with this kit.
- Reinstall the water-pump cover and tighten fasteners to the manufacturer’s specified torque.
- Reassemble the lower unit, reconnect all linkages, and verify proper gearcase fluid level.
- Run the engine using the correct test method and confirm a strong cooling-water discharge before returning the boat to service.
Troubleshooting & FAQ
How do I know if this kit fits my Suzuki outboard?
Check the exact model, horsepower, stroke type, and year against the compatibility table. The listed Suzuki reference numbers can provide an additional cross-check, but they should not be used alone to confirm fitment.
What are the signs of a failing water-pump impeller?
Common symptoms include overheating at idle or low speed, a weak or missing cooling-water stream, and an engine temperature warning. Cracked, brittle, distorted, or missing impeller vanes are also signs that service may be needed.
Is the plate included?
Yes. The matching company records describe this product as a water-pump impeller kit with plate, and the listed contents are one impeller and one plate.
Is the impeller key included?
The key is not listed as an included component in the matching company records. Check the existing key and the service manual for your engine before installation.
Are the gasket and water-pump housing included?
No gasket or housing is identified as included. This listing should be treated as an impeller-and-plate repair kit unless the product packaging specifically states otherwise.
Is this an OEM Suzuki part?
No. This is an aftermarket replacement intended for the listed Suzuki applications. Suzuki reference numbers are provided for identification and cross-reference purposes.
How often should the impeller be serviced?
Follow the maintenance interval in your engine’s service manual. Inspection and replacement frequency can be affected by operating hours, storage conditions, saltwater exposure, and sand or silt in the water.
Safety & Important Info
- Verify the exact engine model, year, horsepower, stroke type, and existing part number before ordering.
- Do not operate an outboard with an inadequate cooling-water stream or signs of overheating.
- Use the correct service-manual procedures and torque specifications for your engine.
- This is an aftermarket replacement and is not manufactured by Suzuki.
- Professional installation is recommended when lower-unit service or shift-linkage adjustment is required.
