Carburetor Assembly – Fits Tohatsu/Nissan 25HP & 30HP (Replaces...
Product Details

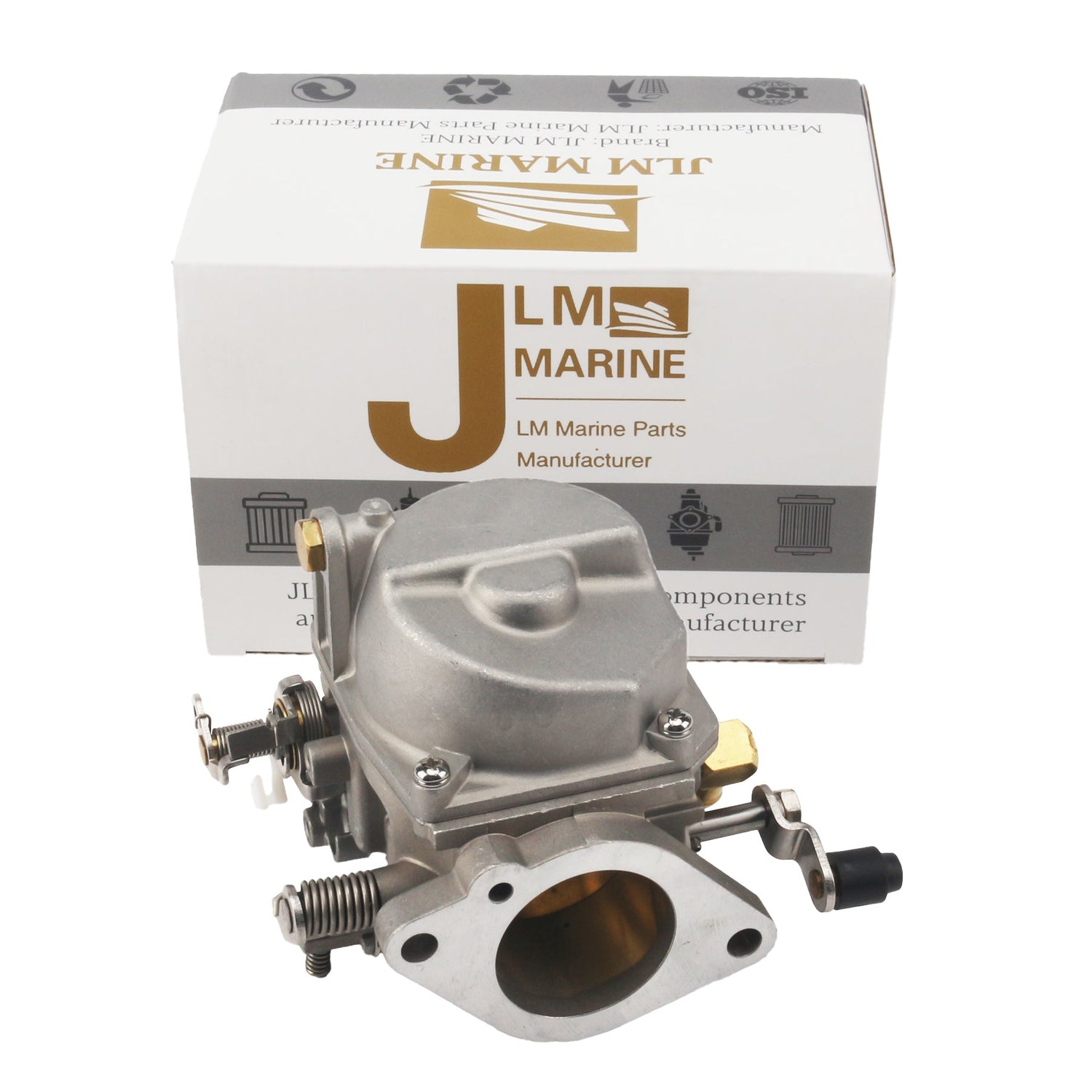

This Carburetor Assembly – Fits Tohatsu/Nissan 25HP & 30HP 2-Stroke Outboard is a complete replacement unit for Tohatsu and Nissan 25HP and 30HP 2-stroke outboard engines, specifically covering models M25C3, M30A3, M30A4, NS25C2, NS25C3, NS30A3, and NS30A4 from 2002–2005.
It serves as a direct interchange for Tohatsu part numbers including 3P0-03200-0 and 3P0032000M, as well as Nissan equivalents such as 346-03200-0 and 346032000M.
- Offers a direct bolt-on replacement for a streamlined installation process.
- Built from a durable, die-cast aluminum alloy to withstand the marine environment.
- Includes all necessary internal components for a complete carburetor replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Tohatsu | 3P0-03200-0 | OEM Reference |
| Tohatsu | 3P0032000 | OEM Reference |
| Tohatsu | 3P0032000M | OEM Reference |
| Nissan | 346-03200-0 | OEM Reference |
| Nissan | 346032000 | OEM Reference |
| Nissan | 346032000M | OEM Reference |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Tohatsu Owners: This carburetor is compatible with select M25 and M30 series 2-stroke outboards manufactured between 2002 and 2005.
For Nissan Owners: This carburetor fits specific NS25 and NS30 series 2-stroke outboards produced from 2002 to 2005.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Tohatsu | M25C3 | 25 | 2-Stroke | 2002–2005 | 3P0-03200-0 | |
| Tohatsu | M30A3 | 30 | 2-Stroke | 2002–2005 | 3P0-03200-0 | |
| Tohatsu | M30A4 | 30 | 2-Stroke | 2002–2005 | 3P0-03200-0 | |
| Nissan | NS25C2 | 25 | 2-Stroke | 2002–2005 | 346-03200-0 | |
| Nissan | NS25C3 | 25 | 2-Stroke | 2002–2005 | 346-03200-0 | |
| Nissan | NS30A3 | 30 | 2-Stroke | 2002–2005 | 346-03200-0 | |
| Nissan | NS30A4 | 30 | 2-Stroke | 2002–2005 | 346-03200-0 |
Technical Specs
- Product Type
- Carburetor Assembly
- Installation
- Direct bolt-on replacement
- Fuel Type
- Gasoline (petrol)
- Housing Material
- Die-cast aluminum alloy
- Housing Color
- Silver/metallic
- Warranty
- 1 year against manufacturing defects (JLM Marine)
- Other Technical Attributes
- Complete carburetor assembly with all necessary components for installation
What’s in the Box
- 1 x Carburetor Assembly (Replaces 3P0-03200-0/346-03200-0)
Installation Notes
- Shut off the fuel supply and disconnect the fuel line from the carburetor.
- Disconnect the negative terminal from the battery to prevent electrical shorts.
- Carefully note the position of and disconnect all throttle linkages, choke linkages, and vacuum hoses.
- Remove the mounting nuts or bolts securing the old carburetor to the intake manifold.
- Clean the manifold mounting surface, removing any old gasket material or debris to ensure a proper seal.
- Install the new gasket and mount the new carburetor assembly, tightening fasteners to the manufacturer's specified torque.
- Reconnect all linkages, hoses, and the main fuel line to their original positions.
- Reconnect the battery terminal, turn on the fuel supply, and check thoroughly for any leaks before starting the engine.
- Start the engine and allow it to warm up. If needed, adjust the idle speed and air/fuel mixture according to your engine's service manual.
Troubleshooting & FAQ
How do I know if this carburetor will fit my engine?
First, check the "Engine & Model Compatibility" table on this page. This part is designed for specific Tohatsu (M25C3, M30A3, M30A4) and Nissan (NS25C2, NS25C3, NS30A3, NS30A4) models from 2002–2005. Always cross-reference your engine's model number and year before ordering.
Does this carburetor come pre-tuned?
The carburetor is set to a standard factory baseline tune that works for most applications out of the box. However, minor adjustments to the idle speed or air/fuel mixture may be necessary depending on your specific engine condition, altitude, and local climate.
What are the signs my old carburetor is failing?
Common symptoms of a faulty carburetor include difficulty starting, rough or unstable idling, stalling at low speeds, poor acceleration, hesitation, black smoke from the exhaust (running rich), or visible fuel leaks around the unit.
Can I use ethanol-blended fuel with this part?
This carburetor is designed for standard unleaded gasoline. It can tolerate common ethanol blends like E10, but prolonged use of fuels with higher ethanol content may degrade internal seals and components over time. For storage, we recommend using a fuel stabilizer.
What maintenance is required for the new carburetor?
To ensure long-term performance, always use clean, fresh fuel and a high-quality fuel filter. Periodically inspect fuel lines for cracks and ensure all connections are secure. If storing the engine for an extended period, it's best to run the carburetor dry or use a fuel stabilizer to prevent gumming.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
