Carburetor Assembly – Fits Tohatsu & Nissan 9.9-18HP (Replaces ...
Product Details

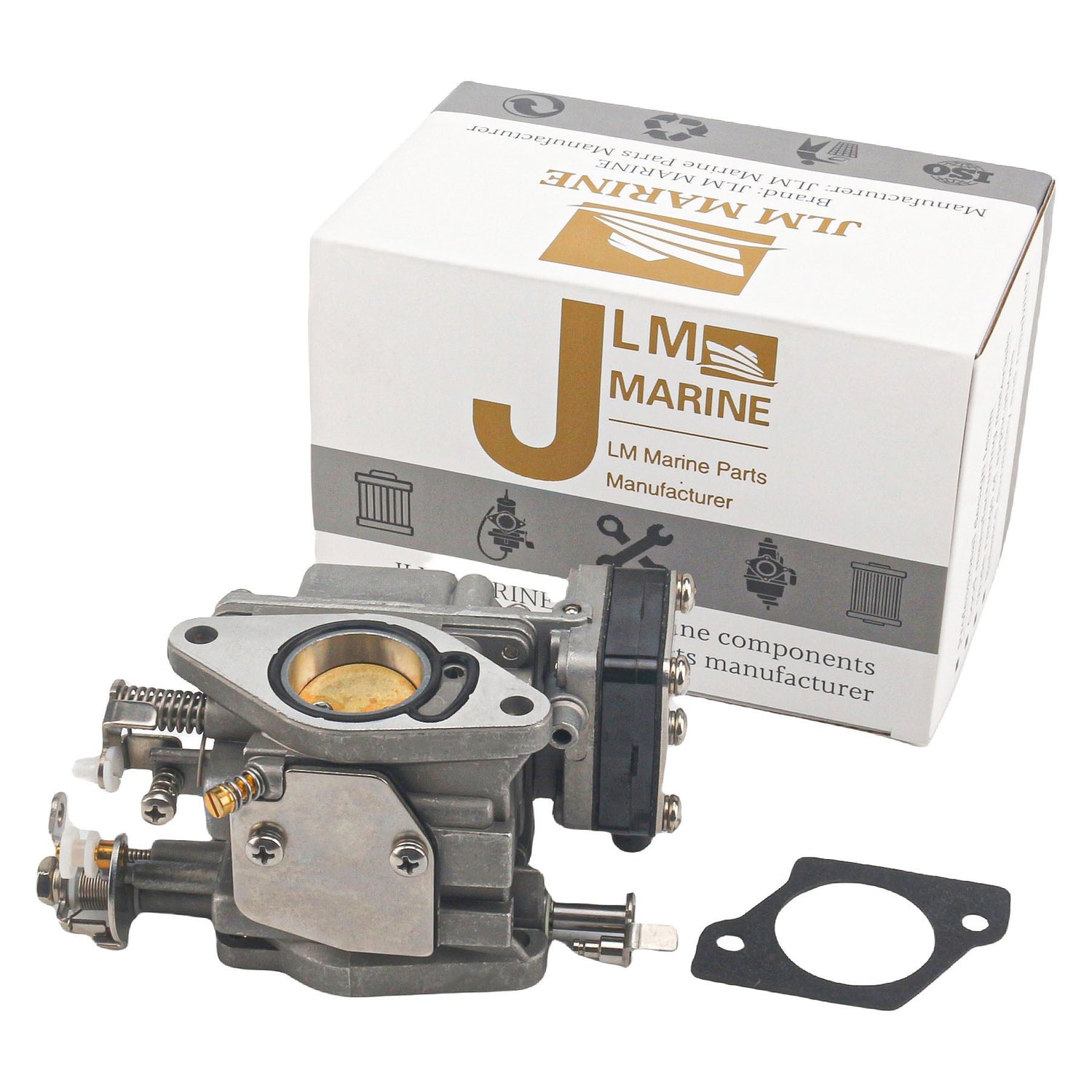

This Carburetor Assembly – Fits Tohatsu & Nissan 9.9HP/15HP/18HP Two-Stroke Outboards is designed for reliable performance in 2-stroke outboard engines, primarily covering Tohatsu M9.9D2, M15D2, and M18E2 models, along with their Nissan-branded equivalents.
It serves as a direct interchange for Tohatsu part numbers 3G2-03100-0 through 3G2-03100-5 and Nissan numbers 3G2-03100-0M through 3G2-03100-4M.
- Installation Method: Direct Replacement
- Housing Material: High-Grade Aluminum Alloy
- Includes factory-set jetting for specified engine applications
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Tohatsu | 3G2-03100-0 | |
| Tohatsu | 3G2-03100-1 | |
| Tohatsu | 3G2-03100-2 | |
| Tohatsu | 3G2-03100-3 | |
| Tohatsu | 3G2-03100-4 | |
| Tohatsu | 3G2-03100-5 | |
| Nissan | 3G2-03200-0M | Nissan-branded equivalent |
| Nissan | 3G2-03100-0M | Nissan-branded equivalent |
| Nissan | 3G2-03100-1M | Nissan-branded equivalent |
| Nissan | 3G2-03100-2M | Nissan-branded equivalent |
| Nissan | 3G2-03100-3M | Nissan-branded equivalent |
| Nissan | 3G2-03100-4M | Nissan-branded equivalent |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Tohatsu & Nissan: This carburetor fits specific D2 and E2 series two-stroke models. Verify your model number matches.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Tohatsu | M9.9D2 | 9.9 | 2-Stroke | 3G2-03100-0/1/2/3/4/5 | |
| Tohatsu | M15D2 | 15 | 2-Stroke | 3G2-03100-0/1/2/3/4/5 | |
| Tohatsu | M18E2 | 18 | 2-Stroke | 3G2-03100-0/1/2/3/4/5 | |
| Nissan | NS9.9D2 | 9.9 | 2-Stroke | 3G2-03100-0M/1M/2M/3M/4M | Nissan-branded version |
| Nissan | NS15D2 | 15 | 2-Stroke | 3G2-03100-0M/1M/2M/3M/4M | Nissan-branded version |
| Nissan | NS18E2 | 18 | 2-Stroke | 3G2-03100-0M/1M/2M/3M/4M | Nissan-branded version |
Mercury Cross-Reference: This part is known to cross-reference with certain Mercury outboards that share a Tohatsu platform. Verify serial number ranges carefully.
| Brand | Model | Rated HP | Stroke | Notes |
|---|---|---|---|---|
| Mercury | 9.9HP | 9.9 | 2-Stroke | Mercury serial range: 0N059858 and up |
| Mercury | 15HP | 15 | 2-Stroke | Mercury serial ranges: 0N001590 through 0N055284 and 0N055285 and up |
| Mercury | 18HP | 18 | 2-Stroke | Mercury serial ranges: 0N001590 through 0N055284 and 0N055285 and up |
Technical Specs
- Product Type
- Carburetor Assembly
- Installation
- Direct Replacement
- Fuel Type
- Gasoline
- Housing Material
- Aluminum Alloy
- Weight
- 0.53 kg (1.17 lb)
- Other Technical Attributes
- Includes factory-set jetting for specified engine applications
- Warranty
- 1 Year
What’s in the Box
- 1 x Carburetor Assembly (Replaces 3G2-03100-0/1/2/3/4/5)
Installation Notes
- Ensure the engine is off, cool, and disconnected from the fuel supply.
- Carefully disconnect the fuel lines, throttle linkage, and any choke or electrical connections from the old carburetor.
- Remove the mounting nuts or bolts securing the old carburetor and remove it. Be careful not to drop anything into the intake manifold.
- Clean the mounting surface and install a new gasket if required.
- Mount the new carburetor assembly, ensuring it is properly aligned. Tighten the mounting hardware to the manufacturer-specified torque.
- Reconnect the fuel lines, throttle linkage, and other connections.
- Prime the fuel system and check for leaks before starting the engine.
- Start the engine and allow it to warm up. Adjust the idle speed screw if necessary, but do not alter factory-set jetting unless you are an experienced technician.
Troubleshooting & FAQ
How do I know if this carburetor will fit my engine?
The surest way is to match your existing part number to one of the numbers listed in the "Part Number Matrix." You can also check your engine's model and serial number against the "Engine & Model Compatibility" table. When in doubt, compare our product photos with your original part.
Are any adjustments needed before installation?
This carburetor comes with factory-set jetting appropriate for the specified Tohatsu and Nissan models. In most cases, only a minor idle speed adjustment is needed after installation. Avoid changing the internal jets unless you are confident in carburetor tuning.
What are the signs of a failing carburetor?
Common symptoms include hard starting, rough idling, stalling, poor acceleration, fuel leaks, or a noticeable decrease in fuel efficiency. If you experience these issues, the carburetor may be clogged or worn and require replacement.
Can I clean my old carburetor instead of replacing it?
Cleaning can sometimes resolve issues caused by fuel deposits. However, if internal components are worn, gaskets are degraded, or the housing is corroded, replacement is the more reliable long-term solution.
Is a new gasket included?
This listing is for the carburetor assembly itself. Mounting gaskets are typically sold separately. We recommend using a new gasket during installation to ensure a proper seal.
How often should a carburetor be replaced?
There is no fixed replacement interval. Replacement is based on condition and performance. Regular use of fuel stabilizer can extend its life, while long periods of storage with old fuel can cause premature failure.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
