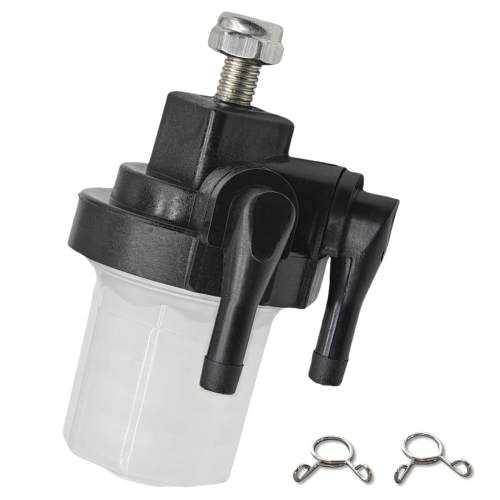

Cartridge Fuel Filter – Fits Yamaha 9.9-90 HP, Mercury/Mariner 8-60 HP, Suzuki 2-85 HP, Tohatsu 9.9-90 HP (Replaces 61N-24560-00, 35-826964T, 15410-93400, 3AC-02230-0)

Product Details

This Cartridge Fuel Filter – Fits Yamaha 9.9-90 HP, Mercury/Mariner 8-60 HP, Suzuki 2-85 HP, Tohatsu 9.9-90 HP (Replaces 61N-24560-00, 655-24560-01) is a direct replacement for various outboard motor fuel systems. It provides broad cross-compatibility for Yamaha, Mercury/Mariner, Suzuki, and Tohatsu engines, ensuring reliable filtration and engine protection.

It serves as a direct interchange for multiple OEM and aftermarket part numbers, including Yamaha 61N-24560-00-00, Mercury 35-826964T, Suzuki 15410-93400, and Tohatsu 3B7-02230-0.

• Installs easily in-line with your existing fuel system.
• Features a clear housing for visual inspection of fuel quality and debris.
• Designed for use with gasoline fuel systems.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Yamaha applications, this filter fits a wide range of 2-stroke outboards from 9.9 HP to 90 HP.

For Mercury and Mariner, it covers various 2-stroke and 4-stroke EFI models.

For Suzuki, it is compatible with most small to mid-range 2-stroke outboards.

For Tohatsu, it is used on select 2-stroke and 4-stroke models, including 25-30 HP engines from 2006 to present.

Technical Specs

Product Type

Cartridge Fuel Filter

Installation

In-line

Fuel Type

Gasoline

Housing Material

Plastic

Housing Color

Clear/Transparent with Black End Caps

Weight

0.1 kg (0.22 lbs)

Warranty

Manufacturer's standard warranty

Other Technical Attributes

Vehicle Specific Fit

What’s in the Box

• 1 x Cartridge Fuel Filter (61N-24560-00/655-24560-01)

Installation Notes

1. Ensure the engine is off and cool. Relieve any pressure in the fuel system.
2. Locate the existing fuel filter. Place rags underneath to catch any fuel spillage.
3. Use pliers to clamp the fuel lines on both sides of the filter to prevent fuel leakage.
4. Carefully remove the clips or clamps and detach the old filter, noting the direction of the fuel flow arrow.
5. Install the new filter, making sure the arrow points in the direction of fuel flow (towards the engine).
6. Secure the fuel lines to the new filter and remove the clamps.
7. Prime the fuel system according to your engine's manual and check thoroughly for any leaks before starting.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
