Fuel Pump – Fits Yamaha, Suzuki, Tohatsu Outboard Engines (Replaces...
Product Details

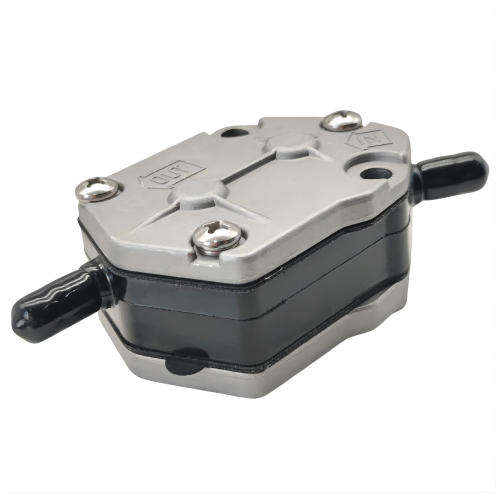

This mechanical Fuel Pump – Fits Yamaha 20-90 HP, Suzuki 8-65 HP, and Tohatsu Outboard Engines, providing reliable fuel delivery for a wide range of 2-stroke carbureted outboards. It is designed for Yamaha models from 1984–2006 (20–90 HP), Suzuki models from 1986–2004 (8–65 HP), and various Tohatsu/Nissan engines from 1988–2000 (25–115 HP).
It serves as a direct replacement for OEM part numbers including Yamaha 6A0-24410-00, Suzuki 15100-94300, Tohatsu 356-04000-1M, and aftermarket equivalents like Sierra 18-7334.
- Engineered for 2-stroke carbureted outboard engines.
- Features a front-mount design for straightforward installation.
- Constructed with a durable metal housing for longevity.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 692-24410-00 / 6A0-24410-00 / 6A0-24410-01-00 / 6A0-24410-02-00 / 6A0-24410-03-00 / 6A0-24410-04-00 / 6A0-24410-05-00 / 663-24410-00 |
| Suzuki | 15100-94312 / 15100-94311 / 15100-94303 / 15100-94302 / 15100-94301 / 15100-94300 |
| Tohatsu | 356-04000-1M / 356040001 |
| Sierra | 18-7334 |
| Mallory | 9-35300 / 9-35305 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Owners: This pump fits a wide variety of 2-stroke models from 20 HP to 90 HP, manufactured between 1984 and 2008. Check specific models like the C55, 60TLR, and 70TLR series.
For Suzuki Owners: Compatible with numerous 2-stroke DT series engines from 8 HP to 65 HP, primarily from 1986 to 2004, including popular models like the DT25, DT40, and DT65.
For Tohatsu/Nissan Owners: Fits various 2-stroke outboards from 25 HP up to 115 HP, based on part number cross-references. Please verify your specific model and year.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | C55ELRS, C55ELRT, C55ERT, C55TLRS, C55TLRT, C55TRT | 55 | 2-Stroke | 1994–1995 | 6A0-24410-00 | |
| Yamaha | 60TLR, C60ELRU, C60TLRU, C60TLRV, C60TLRW, C60TLRX, C60TLRY, C60TLRZ, E60MHY, E60MLHT, E60MLHU, E60MLHV, E60MLHW, E60MLHX, E60MLHY, P60THX, P60TLHT, P60TLHU, P60TLHV, P60TLHW, P60TLHX | 60 | 2-Stroke | 1995–2006 | 6A0-24410-00 | |
| Yamaha | 70TLR, 70TLRA, 70TLRB, 70TLRC, 70TLRD, 70TLRT, 70TLRU, 70TLRV, 70TLRW, 70TLRX, 70TLRY, 70TLRZ, C70TLRY, C70TLRZ | 70 | 2-Stroke | 1995–2006 | 6A0-24410-00 | |
| Yamaha | C75TLRT, C75TLRU, C75TLRW, C75TLRX, E75MHV, E75MLHT, E75MLHU, E75MLHV, E75MLHW, E75MLHX, E75MLHY, P75THV, P75TLHU, P75TLHV, P75TLHW, P75TLHX | 75 | 2-Stroke | 1995–2000 | 6A0-24410-00 | |
| Yamaha | C80TLRV | 80 | 2-Stroke | 1997 | 6A0-24410-00 | |
| Yamaha | C85TLRT, C85TLRU | 85 | 2-Stroke | 1995–1996 | 6A0-24410-00 | |
| Yamaha | 90TJRT, 90TJRU, 90TJRV, 90TJRW, 90TJRX, 90TJRY, 90TJRZ, 90TLR, 90TLRA, 90TLRB, 90TLRC, 90TLRD, 90TLRT, 90TLRU, 90TLRV, 90TLRW, 90TLRX, 90TLRY, 90TLRZ, 90TRU, B90TLRV, B90TLRW, B90TLRX, C90TLRV, C90TLRW, C90TLRX, C90TLRY, C90TLRZ, C90TRW | 90 | 2-Stroke | 1995–2006 | 6A0-24410-00 | |
| Yamaha | 2 Cyl 2.638 Bore | 25 | 2-Stroke | 1994 | 6A0-24410-00 | |
| Yamaha | 2 Cyl 2.638 Bore | 30 | 2-Stroke | 1994–1997 | 6A0-24410-00 | |
| Yamaha | 2 Cyl 3.228 Bore | 48 | 2-Stroke | 1995–2000 | 6A0-24410-00 | |
| Yamaha | 2 Cyl Commercial | 40 | 2-Stroke | 1995–1997 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 2.638 Bore | 40 | 2-Stroke | 1984–2006 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 2.638 Bore | 50 | 2-Stroke | 1984–2008 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 2.834 Bore | 60 | 2-Stroke | 1991–2006 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 2.834 Bore | 70 | 2-Stroke | 1986–2008 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 3.228 Bore | 75 | 2-Stroke | 1994–1999 | 6A0-24410-00 | |
| Yamaha | 3 Cyl 3.228 Bore | 85 | 2-Stroke | 6A0-24410-00 | ||
| Suzuki | DT8, DT9.9C | 8-9.9 | 2-Stroke | 1988–1999 | 15100-94300 | |
| Suzuki | DT20 | 20 | 2-Stroke | 1986–2000 | 15100-94300 | |
| Suzuki | DT25, DT25C | 25 | 2-Stroke | 1989–2002 | 15100-94300 | |
| Suzuki | DT30, DT30C, DT30G-Y | 30 | 2-Stroke | 1988–2002 | 15100-94300 | |
| Suzuki | DT35 | 35 | 2-Stroke | 1987–1989 | 15100-94300 | |
| Suzuki | DT40, DT40C-W, DT40G-X | 40 | 2-Stroke | 1986–2004 | 15100-94300 | |
| Suzuki | DT50 | 50 | 2-Stroke | 15100-94300 | ||
| Suzuki | DT55 | 55 | 2-Stroke | 1988–1997 | 15100-94300 | |
| Suzuki | DT60 | 60 | 2-Stroke | 15100-94300 | ||
| Suzuki | DT65 | 65 | 2-Stroke | 1988–1997 | 15100-94300 | |
| Suzuki | 2 Cyl 3.110 Bore | 40 | 2-Stroke | 1986–1998 | 15100-94300 | |
| Suzuki | 3 Cyl 2.440 Bore | 25 | 2-Stroke | 1989–2000 | 15100-94300 | |
| Suzuki | 3 Cyl 2.440 Bore | 30 | 2-Stroke | 1988–1997 | 15100-94300 | |
| Suzuki | 3 Cyl 2.874 Bore | 55 | 2-Stroke | 1988–1997 | 15100-94300 | |
| Suzuki | 3 Cyl 2.874 Bore | 65 | 2-Stroke | 1988–1997 | 15100-94300 | |
| Suzuki | 3 Cyl PU | 55 | 2-Stroke | 1991–1994 | 15100-94300 | |
| Suzuki | 4 Cyl PU | 40 | 2-Stroke | 1989–1990 | 15100-94300 | |
| Suzuki | 4 Cyl PU | 55 | 2-Stroke | 1989–1990 | 15100-94300 | |
| Tohatsu | M25C, M30A, M40C | 25-40 | 2-Stroke | 1988–2000 | 356-04000-1M | |
| Tohatsu | M50, M70, M90, M115 | 50-115 | 2-Stroke | 356-04000-1M | Based on part cross-reference |
Technical Specs
- Product Type
- Mechanical Fuel Pump
- Installation
- Front Mount
- Fuel Type
- Gasoline
- Connection
- Hose Barb
- Housing Material
- Metal
- Housing Color
- Silver
- Weight
- 0.18 kg (6.4 oz)
- Fitting Type
- Hose Barb
- Other Technical Attributes
- Low-pressure pump for 2-stroke carbureted outboard engines
What’s in the Box
- 1 x Fuel Pump (6A0-24410-00 / 15100-94300 / 356-04000-1M)
Installation Notes
- Disconnect the battery terminals to prevent electrical shorts.
- Carefully relieve any pressure from the fuel system. Place rags around fittings to catch any residual fuel.
- Note the orientation of the fuel lines, then disconnect them from the pump.
- Unbolt and remove the old fuel pump from the engine block.
- Clean the mounting surface and remove any old gasket material.
- Mount the new fuel pump, ensuring it is correctly aligned. Secure the mounting bolts evenly.
- Reconnect the fuel inlet and outlet lines to the correct ports on the new pump.
- Reconnect the battery terminals.
- Prime the fuel system according to your engine's manual and carefully check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I confirm this fuel pump fits my specific engine?
The best method is to match your old part number to one listed in our Part Number Matrix. Additionally, consult the detailed Engine & Model Compatibility table to find your model and year range. When in doubt, compare the photos to your existing part.
What are common signs of a failing fuel pump?
Symptoms of a bad fuel pump include difficulty starting, engine sputtering or stalling (especially at high speeds), loss of power, and poor acceleration. You may also notice the primer bulb not becoming firm.
Is a gasket included with this pump?
This listing includes the fuel pump unit only, as shown in the product images. Gaskets are not explicitly included and may need to be purchased separately depending on your engine's requirements.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
