Hydrofoil Stabilizer – Fits Yamaha, Mercury, Johnson, Evinrude, Honda, Suzuki, Tohatsu 8-40 HP (Replaces SeaSierra FO2002, StingRay Junior 2 Hydrofoil, SE Sport 200)

$59.95 $95.00

Shipping calculated at checkout.

Hydrofoil Stabilizer – Fits Yamaha, Mercury, Johnson, Evinrude, Honda, Suzuki, Tohatsu 8-40 HP (Replaces SeaSierra FO2002, StingRay Junior 2 Hydrofoil, SE Sport 200) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Whale Tail Hydrofoil Stabilizer – Fits Outboard Motors 8-40 HP (Blue) is designed for small outboard motors, improving boat handling, reducing planing time, and enhancing overall performance. It fits most Yamaha, Mercury, Johnson, Evinrude, Honda, Suzuki, and Tohatsu outboard motors from 8 to 40 HP, and is compatible with both 2-stroke and 4-stroke engines. Some outboards down to 4 HP may also be compatible.

This hydrofoil serves as a direct replacement for SeaSierra FO2002, StingRay Junior 2, and SE Sport 200 hydrofoils.

Mounts directly to the anti-cavitation plate.
Installation requires drilling; a drill bit and stainless steel hardware are included.
Constructed from durable, marine-grade nylon plastic.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
SeaSierra	FO2002
StingRay	Junior 2 Hydrofoil
SE Sport	200

Engine & Model Compatibility

Confirm your engine model and year in the table below. This hydrofoil fits most 8-40 HP outboard motors from the listed brands.

Mercury Note: This part is not compatible with Mercury 40, 50, and 60 four-stroke models.

Brand	Rated HP	Stroke	Years	Notes
Yamaha	8-40 HP	2-Stroke & 4-Stroke	All Years
Mercury	8-40 HP	2-Stroke & 4-Stroke	All Years	Not compatible with 40, 50, 60 four stroke models
Johnson/Evinrude	8-40 HP	2-Stroke & 4-Stroke	All Years
Honda	8-40 HP	4-Stroke	All Years
Suzuki	8-40 HP	2-Stroke & 4-Stroke	All Years
Tohatsu	8-40 HP	2-Stroke & 4-Stroke	All Years

Technical Specs

Product Type: Hydrofoil Stabilizer
Installation: Outboard/Sterndrive Mount
Fuel Type: Gasoline
Connection: Anti-Cavitation Plate Mount
Housing Material: Marine Grade Nylon PA66 Plastic
Housing Color: Blue
Dimensions: 13.39" × 13.7" (340mm × 348mm)
Weight: 1.33 kg (2.94 lb)
Mounting Hardware: Stainless Steel Screws and Nuts
Installation Method: Drilling Required (Drill Bit Included)
Maximum HP Rating: 40 HP
Minimum HP Rating: 8 HP (some 4 HP applications)
Engine Type: 2-Stroke, 4-Stroke
Other Technical Attributes: "Whale Tail" Design for Improved Lift and Control

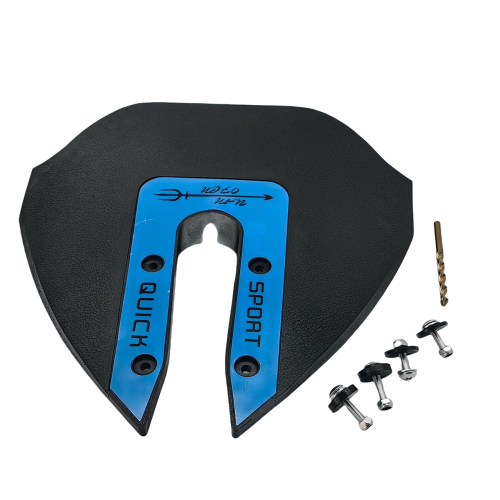

What’s in the Box

1 x Hydrofoil Stabilizer (FO2002)
4 x Sets Stainless Steel Screws and Nuts
1 x 6.5mm Drill Bit
1 x Installation Instruction

Installation Notes

Center the hydrofoil on the outboard's anti-cavitation plate. Ensure it is positioned correctly for optimal performance.
Mark the four drill hole locations on the plate using the hydrofoil as a template.
Remove the hydrofoil and carefully drill the four holes using the included 6.5mm drill bit.
Place the hydrofoil back onto the plate, aligning the holes.
Insert the stainless steel screws from the top and secure them with the nuts from the bottom. Tighten firmly but do not overtighten to avoid damaging the plate.

Troubleshooting & FAQ

Will this fit my specific boat model?

This hydrofoil's compatibility is based on the outboard motor's horsepower and brand, not the boat model itself. It is designed to fit most outboard motors from 8 to 40 HP, including major brands like Yamaha, Mercury, and Suzuki. Always check the compatibility table and notes for exceptions.

How does this improve performance?

The "Whale Tail" design adds lift at the stern, helping the boat get on plane faster, especially at lower speeds. This reduces bow rise, improves stability, and can enhance fuel efficiency by allowing the engine to operate at a more optimal RPM.

Is drilling into my motor's cavitation plate safe?

Yes, when done correctly, it is a standard and safe installation method for hydrofoils. The anti-cavitation plate is designed to handle such modifications. Use the included drill bit and follow the instructions carefully to ensure proper alignment and secure attachment.

Can this stabilizer cause any negative effects?

In some cases, a hydrofoil may slightly reduce top speed due to increased drag. However, the benefits in handling, stability, and quicker planing often outweigh this small trade-off, particularly for smaller boats or those used for watersports.

What maintenance is required?

Periodically check the tightness of the mounting hardware (screws and nuts) as part of your regular engine maintenance. Also, inspect the hydrofoil for any signs of damage or cracks, especially after operating in rough conditions.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
