Product Details

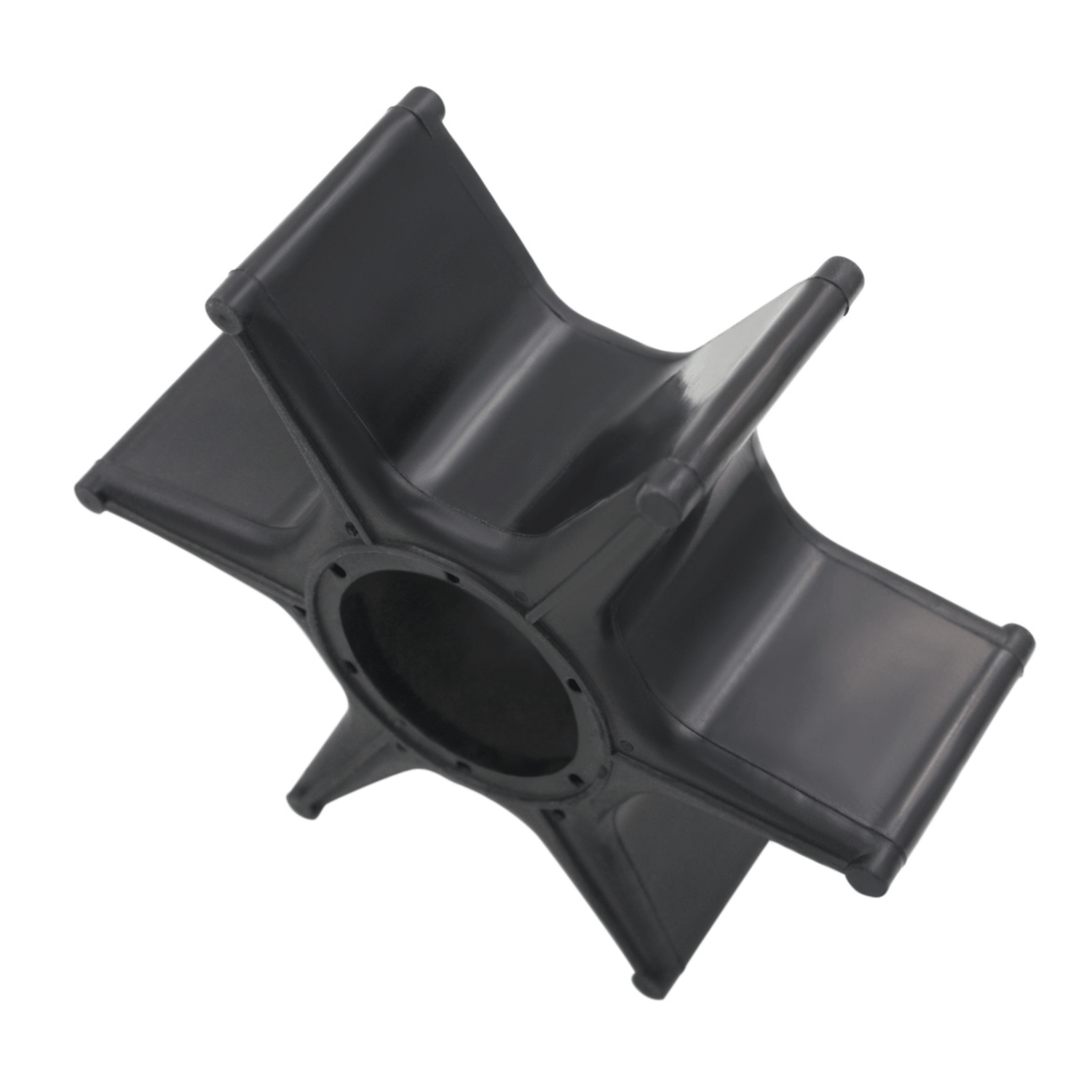

This aftermarket water pump impeller with key is designed for selected Honda Marine 4-stroke outboards, including BF175, BF200, BF225 and BF250 models. The included key is supplied with the impeller for the water-pump installation.
The impeller corresponds to Honda OEM reference 19210-ZY3-003 and is also listed with aftermarket references Sierra Marine 18-3031 and Mallory Marine 9-45106. The same impeller profile is also identified for Nissan/Tohatsu marine applications under OEM reference HZY3-19210-003.
- Water pump impeller supplied with one matching impeller key.
- Replacement component for the water-pump cooling system.
- Approximate impeller dimensions: 89.75 mm diameter × 31.30 mm height, with a 26 mm hub dimension.
- Lubricate the impeller with clean water, glycerin, liquid soap or a manufacturer-approved lubricant during installation. Do not install a dry impeller.
Part Number References
Use the following references to compare with the part being replaced. Always confirm the complete engine model and year before ordering.
| Brand or source | Reference number | Reference type |
|---|---|---|
| Honda | 19210-ZY3-003 | OEM reference |
| Sierra Marine | 18-3031 | Aftermarket reference |
| Mallory Marine | 9-45106 | Aftermarket reference |
| Nissan / Tohatsu | HZY3-19210-003 | OEM reference |
Engine & Model Compatibility
The company fitment records identify this impeller with key for the following Honda Marine models and variants. The catalog relationship for the HZY3-19210-003 reference also covers Tohatsu BFT200/BFT225 and BFT250 applications in the listed model years.
| Brand | Model | Rated HP | Stroke | Year or variant condition | Reference |
|---|---|---|---|---|---|
| Honda | BF175A | 175 | 4-Stroke | A3, A6, AK1, AK2, AK3, D | 19210-ZY3-003 |
| Honda | BF200A | 200 | 4-Stroke | A2, A3, A6, AK1, AK2, AK3, D | 19210-ZY3-003 |
| Honda | BF225A | 225 | 4-Stroke | A, A2, A3, A6, AK1, AK2, D | 19210-ZY3-003 |
| Honda | BF250A | 250 | 4-Stroke | A and D | 19210-ZY3-003 |
| Nissan / Tohatsu | BFT200A / BFT225A | 200 / 225 | 4-Stroke | Catalog-listed applications, including 2015–2019 records | HZY3-19210-003 |
| Nissan / Tohatsu | BFT250A / BFT250D | 250 | 4-Stroke | Catalog-listed applications, including 2015–2019 records | HZY3-19210-003 |
Important: Fitment varies by exact model suffix, year and production specification. Check the engine identification plate and compare the original impeller, hub and key before installation. Do not rely on horsepower alone.
Technical Specifications
- Product Type
- Water pump impeller with key
- Application
- Marine outboard cooling-system water pump
- Stroke
- 4-stroke applications listed above
- Approximate Dimensions
- 89.75 mm diameter × 31.30 mm height; 26 mm hub dimension
- Reference Impeller Profile
- Six-blade impeller profile
- Product Status
- Aftermarket replacement component
What’s in the Box
- 1 × Water pump impeller
- 1 × Matching impeller key
This listing is for the impeller and key only. It does not include a complete water-pump service kit, housing, gasket, O-ring, plate or other water-pump components unless specifically stated above.
Installation Notes
- Turn the engine off, remove the ignition key and disconnect the battery according to the engine manufacturer’s safety procedure.
- Remove the lower unit or gearcase as required for access to the water-pump housing.
- Remove the water-pump housing and take out the old impeller and key.
- Inspect the housing, wear plate, cup, seals and drive keyway for wear, scoring or damage. Replace damaged parts before reassembly.
- Install the supplied key securely in the driveshaft keyway and align the impeller hub with the key.
- Lubricate the impeller with clean water, glycerin, liquid soap or an approved lubricant. Do not use petroleum-based grease on the rubber impeller.
- Install the impeller into the housing while rotating the driveshaft in the manufacturer-specified direction so the blades seat correctly.
- Reassemble the water-pump housing and lower unit using the correct gaskets, seals and torque specifications for the engine.
- After installation, verify a strong cooling-water telltale stream and monitor the engine temperature during the first test run.
Maintenance & Troubleshooting
What symptoms indicate a worn impeller?
Common symptoms include overheating, a weak or missing telltale stream, reduced cooling-water flow, damaged or missing blades, cracks, hardening or deformation. Sand, silt and extended storage can accelerate wear.
How often should the impeller be replaced?
Inspect the impeller during regular maintenance and replace it whenever the blades are damaged, hardened or permanently set. Follow the service interval specified for your exact engine and operating conditions, especially when operating in saltwater or silty water.
Will this fit every Honda 175–250 HP outboard?
No. The listed fitment is limited to the specific BF175A, BF200A, BF225A and BF250A variants identified above. Confirm the model suffix, year and original part reference before ordering.
Does this listing include the impeller key?
Yes. The company product record identifies the item as an impeller with key, and the package contents are one impeller plus one matching impeller key.
Is this an OEM part?
This is an aftermarket replacement component. The Honda and Nissan/Tohatsu numbers shown on this page are manufacturer or catalog reference numbers used for identification and compatibility comparison; the product is not represented as a genuine Honda, Nissan or Tohatsu component.
Safety & Important Information
- Verify the exact engine model, variant, year and original part number before purchase.
- Do not operate the engine without adequate cooling-water supply.
- Inspect the water-pump housing and wear plate whenever the impeller is replaced.
- Professional installation is recommended if you are unfamiliar with outboard lower-unit or water-pump service.
