Water Pump Impeller Repair Kit – Fits Mercury/Tohatsu 2–3.5 HP (Replaces 16159A2, 8M0080264, 3AB-87322-0)
Water Pump Impeller Repair Kit – Fits Mercury/Tohatsu 2–3.5 HP (Replaces 16159A2, 8M0080264, 3AB-87322-0) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller Repair Kit – Fits Mercury/Tohatsu 2–3.5 HP (Rep...
Product Details
This Water Pump Impeller Repair Kit is designed for a range of small outboard motors, including Mercury Marine 2-stroke 3–3.3 HP (1993 and newer) and 4-stroke 2.5–3.5 HP (1999 and newer) models. It also fits various Tohatsu and Nissan 2-stroke 2.5–3.5 HP (M2.5A2, M3.5A2, M3.5B2) and 4-stroke 2.5–3.5 HP (MFS2.5B, MFS3.5B) outboards.
This kit serves as a direct interchange for multiple OEM part numbers, including Mercury 16159A2, 8M0080264, and 889246A16, as well as Tohatsu 3AB-87322-0 and 3F0-87322-1.
- Direct replacement design for straightforward installation.
- Made with a durable marine-grade CR-Neoprene impeller and SS316 stainless steel wear plate and liner.
- Includes a 6-blade impeller with a robust nylon hub for reliable performance.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 16159A2 |
| Mercury | 8M0080264 |
| Mercury | 889246A16 |
| Tohatsu | 3AB-87322-0 |
| Tohatsu | 3AB873220M |
| Tohatsu | 3F0-87322-1 |
| Tohatsu | 3F0873221M |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury Marine: Fits select outboard models from 2.5 HP to 3.5 HP manufactured from 1993 onwards. Verify your serial number for an exact match.
For Tohatsu/Nissan: This kit is compatible with various 2.5 HP and 3.5 HP models, including the M2.5A2, M3.5A2, M3.5B2, MFS2.5B, and MFS3.5B series. Please verify fitment using the part number cross-references, as detailed year ranges are not available.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | Outboard | 3 HP | 2-Stroke | 1993 & UP (S/N 0D901217 & UP) | 16159A2 | With shift |
| Mercury | Outboard | 3.3 HP | 2-Stroke | 1993 & UP (S/N 0D901217 & UP) | 16159A2 | With shift |
| Mercury | Outboard | 2.5 HP | 4-Stroke | 1999 & UP (S/N 0R411838 & UP) | 16159A2 | |
| Mercury | Outboard | 3.5 HP | 4-Stroke | 1999 & UP (S/N 0R411838 & UP) | 16159A2 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct Replacement
- Materials
- Marine Grade CR-Neoprene Impeller, Marine Grade SS316 Wear Plate & Liner
- Impeller Dimensions
- Height: 14.35 mm (0.56 in), Overall Diameter: 33.6 mm (1.32 in), Hub Shaft Diameter: 10.4 mm (0.41 in)
- Weight
- 57 g (2.01 ounces)
- Impeller Design
- 6-blade with a nylon hub

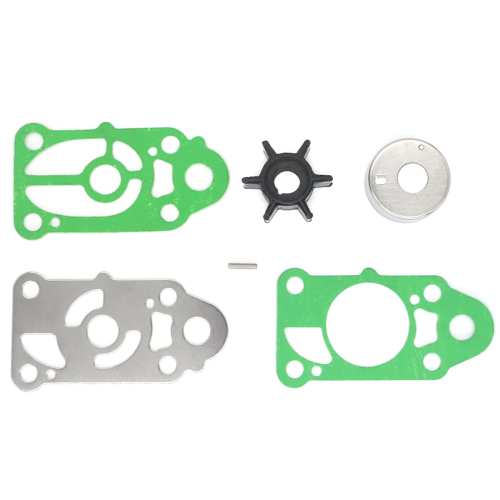

What’s in the Box
- 1 x Water Pump Impeller (47-161543)
- 1 x Impeller Pin (28-16155)
- 1 x Housing Gasket (27-898101331)
- 1 x Wear Plate Gasket (27-898101332)
- 1 x Wear Plate (898101371)
- 1 x Insert Cup (161571)
Installation Notes
- Before starting, disconnect the engine's battery and ensure all components are cool to the touch.
- Remove the gearcase (lower unit) from the outboard's driveshaft housing. Consult your owner's manual for specific instructions.
- Unbolt and carefully lift the water pump housing to access the old impeller. Note the rotational direction of the old impeller vanes.
- Remove the old impeller, key, wear plate, and gaskets. Thoroughly clean all surfaces of debris and old gasket material.
- Install the new wear plate and gaskets from the kit.
- Slide the new impeller onto the driveshaft, aligning the keyway, and install the new key. Rotate the driveshaft in its normal operating direction while lowering the housing to correctly seat the impeller blades.
- Securely fasten the water pump housing with the original bolts.
- Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned.
- Reconnect the battery. Start the engine in water and verify that a steady stream of water is exiting the cooling system's tell-tale port.
Troubleshooting & FAQ
How can I be sure this kit fits my motor?
This kit fits specific Mercury, Tohatsu, and Nissan models. Please review the "Engine & Model Compatibility" and "Part Number Matrix" sections. Cross-reference the OEM part numbers listed with your engine's service manual or existing parts to guarantee fitment.
What are common signs that I need to replace my water pump impeller?
Key indicators include a weak or intermittent water stream from the tell-tale port, rising engine temperatures at idle or low speeds, or a complete lack of water output. A brittle, cracked, or deformed impeller found during inspection also warrants immediate replacement.
How often should the water pump impeller be replaced?
As a general maintenance rule, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).
My engine model is listed, but the serial number range is different. Will it fit?
Serial numbers often denote mid-year manufacturing changes. If your serial number falls outside the specified range, this kit may not be compatible. We strongly recommend verifying the required part number with your dealer or a qualified marine mechanic before purchasing.
Is this an OEM part?
This is an aftermarket replacement part, not OEM. It is engineered to meet or exceed OEM specifications for fit, form, and function and is produced in an ISO 9001 certified facility to ensure quality and performance.
What are the shipping options?
We ship worldwide, with typical transit times of 5–15 days for standard delivery. Standard shipping is free to most locations. Expedited shipping options, if available for your region, will be presented at checkout.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. Should you encounter a problem, please contact our support team with your order details. Returns of unused items in their original packaging are accepted within our standard return period.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
