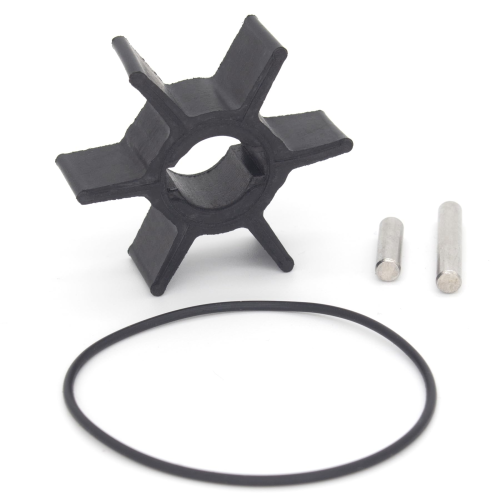

Water Pump Impeller Service Kit – Fits Mercury, Tohatsu, Nissan 2.2–3.3 HP (Replaces 47-952892, 309-65021-1)

Product Details

This Water Pump Impeller Service Kit is a high-quality aftermarket solution for various Mercury, Tohatsu, Nissan, Johnson, and Evinrude 2-stroke outboards. It is designed to restore cooling performance for a range of 2 HP to 3.5 HP engines manufactured between 1991 and 2006.

The kit serves as a direct cross-reference for multiple part numbers, including Mercury 47-952892, Nissan/Tohatsu 309-65021-1, Sierra 18-45312, and Johnson/Evinrude 0114812.

• Installs as a direct replacement for the original factory part.
• Engineered with a durable neoprene impeller and a hardened nylon hub for longevity.
• Includes the essential impeller, O-ring, and pins for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket brands.

Engine & Model Compatibility

Confirm your engine model and year in the table below to ensure correct fitment.

For Mercury/Mariner owners: Please verify your engine's serial number (S/N) to ensure an exact match, as fitment can vary within the same model year.

For Tohatsu/Nissan owners: This part fits specific 2-stroke models from 2002–2005. Check your model designation (e.g., M2.5A2, NS3.5A) against the list.

For Johnson/Evinrude owners: Compatibility covers select small outboards from the 1990s and early 2000s. Verify your horsepower and year range.

Technical Specs

Product Type

Water Pump Impeller Service Kit

Installation

Direct replacement

Material

Neoprene impeller with hardened nylon hub

Blades

6

Overall Diameter

43 mm (1.69 in)

Height

14.3 mm (0.56 in)

Shaft Diameter

12 mm (0.47 in)

Weight

Approx. 9 g (0.32 oz)

Warranty

1 Year

What’s in the Box

• 1 x Water Pump Impeller
• 1 x O-ring
• 2 x Impeller Pin

Installation Notes

1. Disconnect the battery and remove the engine cover.
2. Locate and unbolt the lower unit (gearcase) from the upper engine housing.
3. Carefully lower the gearcase to access the water pump assembly.
4. Remove the water pump housing bolts and lift the housing to expose the old impeller.
5. Remove the old impeller, key, O-ring, and any gaskets. Clean all mating surfaces thoroughly.
6. Install the new components from the kit. Lightly lubricate the impeller and housing interior.
7. Reinstall the pump housing, ensuring a proper seal. Tighten bolts to the manufacturer's torque specs.
8. Re-install the lower unit, making sure the water tube, driveshaft, and shift shaft are correctly aligned.
9. Once assembled, test the engine in water to confirm a strong, steady stream from the tell-tale port.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
