Raw Sea Water Pump Rebuild Kit – Fits Volvo Penta 3.0-8.1L (Replace...
Product Details
This Raw Sea Water Pump Rebuild Kit is designed for Volvo Penta 3.0L, 4.3L, 5.0L, 5.7L, and 8.1L inboard/outboard engines from 1999–2005 that are equipped with crankshaft-mounted raw water pumps.
It serves as a direct replacement for Volvo Penta part numbers 21214595, 21214596, 21214599, 21214601, and Johnson 09-5000.
- Direct replacement for crankshaft-mounted raw water pumps.
- Features corrosion-resistant stainless steel for seals, bearing, and retaining ring.
- Includes all essential components for a standard rebuild.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 21214595 |
| Volvo Penta | 21214596 |
| Volvo Penta | 21214599 |
| Volvo Penta | 21214601 |
| Johnson | 09-5000 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Designed for a range of Volvo Penta gas engines from approximately 1999 to 2005 with crankshaft-mounted pumps.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Volvo Penta | 5.0GiPWTR | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.0GL | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.0GLPEFS | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.0GLPWTR | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.0GXi | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.0OSi | 5.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7Gi | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GL | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GSiPEFS | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GSiPWTR | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GSPEFS | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GSPWTR | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7GXi | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7OSi | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 5.7OSXi | 5.7L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 3.0L Series | 3.0L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 4.3L Series | 4.3L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
| Volvo Penta | 8.1L Series | 8.1L | 4-Stroke | 1999–2005 | 21214595/21214596/21214599/21214601 | Crankshaft-mounted sea water pump |
Technical Specs
- Product Type
- Raw Sea Water Pump Rebuild Kit
- Installation
- Direct replacement for crankshaft-mounted raw water pumps
- Impeller Width
- 1-1/4"
- Screw Length
- 1/2" (12mm)
- Materials
- Features corrosion-resistant 316 stainless steel frame and spring for seals; stainless steel bearing, retaining ring, and screws.
- Warranty
- 1 Year (from some suppliers)

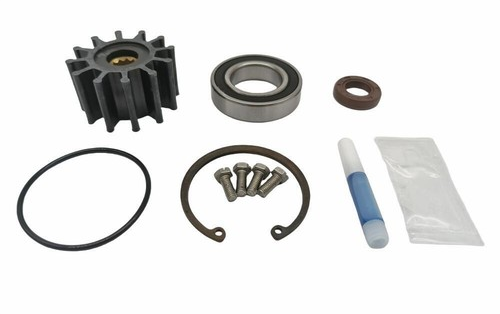

What’s in the Box
- 1 x Bearing with retaining compound
- 1 x Retaining Ring
- 1 x Set of Stainless Steel Screws
- 1 x Double Lip Seal with 316 Stainless Steel Spring
- 1 x Impeller
- 1 x O-ring
Installation Notes
- Disconnect the battery and close the raw water intake seacock.
- Remove the existing pump cover and impeller. Note the direction of the old impeller vanes.
- Carefully extract the old seals and bearing from the pump housing using an appropriate puller.
- Clean the housing thoroughly, ensuring all surfaces are free of debris or old material.
- Gently press the new bearing and seals into place using a press or socket of the correct size. Ensure seals are oriented correctly.
- Lightly lubricate the new impeller and housing interior with a suitable marine lubricant.
- Install the new impeller with the vanes twisted in the correct rotational direction.
- Fit the new O-ring and secure the cover with the provided stainless steel screws.
- Reconnect hoses, open the seacock, and reconnect the battery.
- Start the engine and immediately check for any water leaks around the pump housing.
Troubleshooting & FAQ
How do I know if this kit fits my pump?
This kit fits Volvo Penta engines from 1999–2005 (3.0L to 8.1L) with a crankshaft-mounted raw water pump. Verify your pump matches the part numbers 21214595, 21214596, 21214599, or 21214601. Visually comparing your old parts to our product images is also recommended.
What are the signs my raw water pump needs a rebuild?
Common signs include water leaks from the pump body (especially from the weep hole), engine overheating at idle or low speeds, a decrease in water flow from the exhaust, and a visibly worn, cracked, or deformed impeller.
How often should the pump be serviced?
Impeller life varies based on usage, water conditions (sandy/silty water causes faster wear), and winterization procedures. It is best practice to inspect the impeller annually and replace it every 1-2 years as preventive maintenance, even if it looks okay.
Is this kit difficult to install?
Installation requires moderate mechanical skills. While replacing the impeller is straightforward, removing and pressing in the new bearing and seals can be challenging without the correct tools (like a bearing press or puller). Professional installation is recommended if you are not experienced with these tasks.
My engine is still overheating after installing the kit. What's next?
If overheating persists, verify the impeller was installed with vanes pointing in the correct rotational direction. Check for blockages in the intake hose, heat exchanger, or exhaust manifolds. Ensure there are no air leaks on the suction side of the pump.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
