Trim Tab Anode – Fits Yamaha Outboard 60-90 HP (Replaces 67F-45371-...
Product Details

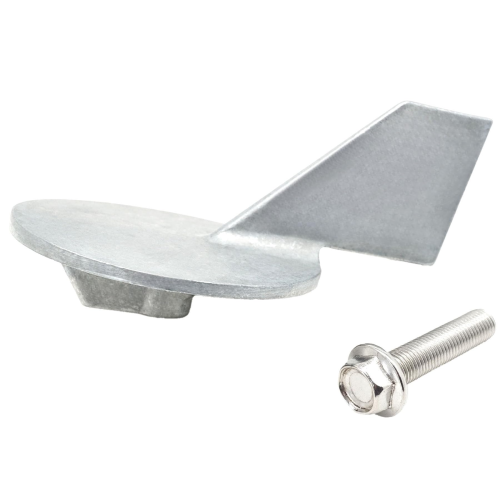

This Yamaha Trim Tab Anode is a direct-fit replacement designed to protect your engine from galvanic corrosion. It is compatible with a wide range of Yamaha outboards, including 2-stroke models from 60 to 90 HP (1984–2004) and 4-stroke models from T50 to F100 HP (1996–Current). Made from a high-quality zinc alloy, it serves as a sacrificial anode, corroding in place of your engine's vital metal components.
This part is a direct replacement for Yamaha OEM parts 67F-45371-00-00, 688-45371-01-00, and 688-45371-02-00. It also cross-references with Sierra 18-6070, CMP CM6884537102Z, and Tecnoseal 01104.
- Installs easily with a single M10 x 1.25mm bolt.
- Formulated for use in saltwater, freshwater, and brackish environments.
- Provides essential cathodic protection to prevent costly lower unit damage.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Yamaha | 67F-45371-00-00 | 688-45371-01-00 |
| Yamaha | 688-45371-01-00 | 688-45371-02-00 |
| Yamaha | 688-45371-02-00 | |
| Sierra | 18-6070 | |
| CMP | CM6884537102Z | |
| Tecnoseal | 01104 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This anode fits the following Yamaha 2-Stroke outboards:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 60 | 60 | 2-Stroke | 1984–2004 | 67F-45371-00-00 | |
| Yamaha | C60 | 60 | 2-Stroke | 1994–2001 | 67F-45371-00-00 | Commercial model |
| Yamaha | E60 | 60 | 2-Stroke | 1995–2000 | 67F-45371-00-00 | Enduro model |
| Yamaha | P60 | 60 | 2-Stroke | 1991–1999 | 67F-45371-00-00 | Pro series |
| Yamaha | 70 | 70 | 2-Stroke | 1984–2004 | 67F-45371-00-00 | |
| Yamaha | 75 | 75 | 2-Stroke | 1984–2004 | 67F-45371-00-00 | |
| Yamaha | C75, C85 | 75/85 | 2-Stroke | 1994–2001 | 67F-45371-00-00 | Commercial models |
| Yamaha | E75 | 75 | 2-Stroke | 1995–2000 | 67F-45371-00-00 | Enduro model |
| Yamaha | P75 | 75 | 2-Stroke | 1991–1999 | 67F-45371-00-00 | Pro series |
| Yamaha | 90 | 90 | 2-Stroke | 1984–2004 | 67F-45371-00-00 | |
| Yamaha | B90 | 90 | 2-Stroke | 1989–2004 | 67F-45371-00-00 | |
| Yamaha | C90 | 90 | 2-Stroke | 1994–2001 | 67F-45371-00-00 | Commercial model |
This anode fits the following Yamaha 4-Stroke outboards:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | T50 | 50 | 4-Stroke | 1996–2000 | 67F-45371-00-00 | High thrust model |
| Yamaha | T50 | 50 | 4-Stroke | 2001–Current | 67F-45371-00-00 | High thrust model |
| Yamaha | T60 | 60 | 4-Stroke | 2001–Current | 67F-45371-00-00 | High thrust model |
| Yamaha | F70 | 70 | 4-Stroke | 2010–Current | 67F-45371-00-00 | |
| Yamaha | F75 | 75 | 4-Stroke | 2003–2017 | 67F-45371-00-00 | |
| Yamaha | F80 | 80 | 4-Stroke | 1999–2003 | 67F-45371-00-00 | |
| Yamaha | F90 | 90 | 4-Stroke | 2003–2015 | 67F-45371-00-00 | |
| Yamaha | F90A | 90 | 4-Stroke | 2006–2017 | 67F-45371-00-00 | |
| Yamaha | F100 | 100 | 4-Stroke | 1999–2003 | 67F-45371-00-00 |
Technical Specs
- Product Type
- Trim Tab Anode
- Installation
- Direct bolt-on, M10 x 1.25mm threads
- Material
- Zinc Alloy
- Housing Color
- Silver/Gray (natural zinc)
- Dimensions
- Diameter: 3-1/2 inches (88.9 mm)
- Weight
- 0.9 lbs (0.41 kg)
- Fitting Type
- Single bolt mount
- Thread Size
- M10 x 1.25 mm
- Environment
- Saltwater, freshwater, brackish water
- Warranty
- 1 Year (varies by manufacturer)
- Other Technical Attributes
- Sacrificial anode for cathodic protection
What’s in the Box
- 1 x Trim Tab Anode (67F-45371-00-00/688-45371-01-00/688-45371-02-00)
Installation Notes
- Tilt the outboard engine to the full "up" position to access the lower unit.
- Locate the existing trim tab anode, typically found on the underside of the anti-cavitation plate.
- Use a socket wrench to remove the mounting bolt securing the old anode. The bolt may be tight due to corrosion.
- Clean the mounting surface on the engine thoroughly, removing any corrosion, salt, or marine growth to ensure a good electrical connection.
- Position the new trim tab anode and align the bolt hole.
- Insert and securely tighten the mounting bolt to the manufacturer's recommended torque specification. Do not overtighten.
- Lower the engine and check that the anode does not interfere with steering or trimming operations.
Troubleshooting & FAQ
How do I know if this anode will fit my engine?
The surest way is to check your OEM part number against the references in the Part Number Matrix. You can also review the Engine & Model Compatibility tables to find your specific engine model and year range.
What are signs that my trim tab anode needs replacing?
Inspect your anode regularly. You should replace it when it appears visually pitted, crumbly, or has eroded to 50% of its original size. A heavily worn anode can no longer provide adequate protection for your engine.
Does this anode include the mounting bolt?
Inclusion of the M10 mounting bolt can vary between aftermarket manufacturers. Please verify with the seller at the time of purchase to confirm if hardware is included.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility and batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options will appear at checkout where available.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window for unused items in original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
