Flexible Impeller Kit – Fits Volvo Penta, Yanmar, John Deere Engines (Replaces 877061, 875593, 3841697)

$17.99 $28.00

Shipping calculated at checkout.

Flexible Impeller Kit – Fits Volvo Penta, Yanmar, John Deere Engines (Replaces 877061, 875593, 3841697) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This marine Flexible Impeller Kit is a direct-fit replacement for the raw water pump on a wide range of Volvo Penta, Yanmar, and John Deere diesel engines. Compatible models include Volvo Penta AD/TAMD/KAD/KAMD/D series, Yanmar 4LH/4LHA/4BY/6BY series, and John Deere 4045/6068 series engines, ensuring reliable cooling performance.

It serves as a direct interchange for numerous OEM and aftermarket part numbers, including Volvo Penta 877061, Yanmar 127610-42200, JMP 7400-01, Jabsco 920-0001, and Johnson 09-1028B.

Installs directly into the existing seawater pump housing.
Engineered with a durable neoprene compound and a brass insert for longevity.
The kit includes the impeller and a set of common gaskets and O-rings for installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
JMP	7400-01, 7400-01K
Jabsco	920-0001
Johnson	09-1028B, 09-1028B-1, 09-1028BT-1
Sherwood	18200, 18200K
Volvo Penta	877061, 875593, 801277, 21951356, 825941, 3841697
Yanmar	123325-42020, 123325-42021, 127610-42200, 127610-42270, 120650-42310
John Deere	RE526661, RE49490
Doosan	65.06804-0003

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller is widely used in many Volvo Penta marine diesel engines, from the AD31/41 series to modern D4 and D7 units.

Brand	Model	Rated HP	Stroke	OEM Part No.
Volvo Penta	AD31/41/43 series	Various	4-Stroke	877061, 875593, 3841697
Volvo Penta	TAMD31/41/42 series	Various	4-Stroke	877061, 875593, 3841697
Volvo Penta	KAD32/42/44 series	Various	4-Stroke	877061, 875593, 3841697
Volvo Penta	KAMD42/43/44 series	Various	4-Stroke	877061, 875593, 3841697
Volvo Penta	D4-225A-E, D4-260A-E, D4-260D-E, D4-300A-E, D4-300D-E	225-300	4-Stroke	21951356
Volvo Penta	D5A-A T/TA, D7A-A T/TA, D7C-A TA, D7A-B TA, D7C-B TA	Various	4-Stroke	877061, 875593, 3841697

Fits several popular Yanmar marine engine families, including the 4LH, 4LHA, and BY series.

Brand	Model	Rated HP	Stroke	OEM Part No.
Yanmar	4BY150, 4BY150Z, 4BY180, 4BY180Z	150-180	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4BY2-150, 4BY2-150Z, 4BY2-180, 4BY2-180Z	150-180	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4BY3-150, 4BY3-180	150-180	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4LH-DTE, 4LH-HTE, 4LH-STE, 4LH-TE	Various	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4LHA-DTE(P), 4LHA-DTP, 4LHA-DTZE(P)	Various	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4LHA-HTE(P), 4LHA-HTP, 4LHA-HTZE(P)	Various	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	4LHA-STE(P), 4LHA-STP, 4LHA-STZE(P)	Various	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	6BY2-220, 6BY2-220Z, 6BY2-260, 6BY2-260Z	220-260	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	6BY220, 6BY220Z, 6BY260, 6BY260Z	220-260	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	6BY3-220, 6BY3-260	220-260	4-Stroke	123325-42020, 127610-42200, 120650-42310
Yanmar	6PH-HTE, 6PH-PHE, 6PH-PHME, 6PH-TE, 6PHM-HTE	Various	4-Stroke	123325-42020, 127610-42200, 120650-42310

Also compatible with select John Deere marine engines.

Brand	Model	Rated HP	Stroke	OEM Part No.	Notes
John Deere	4045DFM50, 4045DFM70, 4045TFM50, 4045TFM75	Various	4-Stroke	RE526661, RE49490
John Deere	6068SFM50, 6068TFM50, 6068TFM75, 6068TFM76	Various	4-Stroke	RE526661, RE49490

Technical Specs

Product Type: Marine Flexible Impeller Kit
Installation: Replaces existing impeller in compatible raw water/seawater pumps
Connection: Direct shaft mount (spline drive)
Dimensions: A (Impeller Diameter): 65 mm (2.56"), B (Width): 50 mm (1.98"), C (Shaft Diameter): 16 mm (0.625")
Weight: Approximately 0.2 kg (0.45 lbs)
Fitting Type: 12-spline drive / 7-spline drive (sources differ)
Material: 8 blades, neoprene construction, brass insert

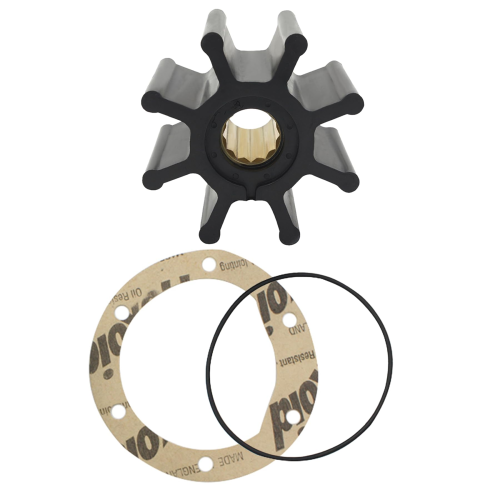

What’s in the Box

1 x JMP Marine Flexible Impeller (#7400-01)
1 x Gasket (GAK0016)
1 x Gasket (GAK0062)
1 x O-Ring (ORG0013)
1 x O-Ring (ORG0022)
1 x O-Ring (ORG0067)

Note: Some applications do not require all items in kit.

Installation Notes

Close the water inlet seacock.
Remove the end-cover screws from the raw water pump.
Pry off the cover plate and remove the old gasket.
Using pliers or an impeller puller, remove the old impeller. Note the blade orientation.
Clean the inside of the pump housing and inspect for scoring or wear.
Lubricate the new impeller with a small amount of glycerin or dish soap. Do not use petroleum-based lubricants.
Install the new impeller with a twisting motion in the same rotational direction as the old one was removed.
Place the new gasket or O-ring on the cover plate.
Re-install the cover plate and tighten the screws evenly.
Open the seacock and start the engine, checking immediately for leaks.

Troubleshooting & FAQ

How do I know if my impeller needs replacement?

Common signs of a failing impeller include engine overheating at idle or low speeds, a reduced flow of water from the exhaust outlet, and visible cracks or missing blades on the impeller itself. It is recommended to inspect the impeller annually and replace it every 1-2 seasons, regardless of appearance, as preventative maintenance.

What is the correct spline count for this impeller?

There is conflicting information from suppliers regarding the drive type. Some state it is a 7-spline drive, while others list it as a 12-spline drive. It is critical to inspect your existing pump and impeller shaft to confirm the spline count before ordering to ensure compatibility.

Can I run the engine without water after installing?

No. Never run the raw water pump dry. The impeller requires water for lubrication. Running it dry for even a few seconds can cause significant damage to the neoprene blades, leading to premature failure and potential engine overheating.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
