Water Pump Impeller Kit – Fits Jabsco/Johnson, Volvo Penta, Yanmar (Replaces 920-0003, 09-1028B-9, 3841697)

Product Details

This is a replacement Water Pump Impeller Kit – Fits Jabsco/Johnson Raw Water Marine Cooling Pumps (Replaces 920-0003, 09-1028B-9) designed for raw sea water marine cooling systems. It is compatible with a wide range of inboard marine engines manufactured by Volvo Penta, Yanmar, Johnson, Jabsco, and others.

This kit serves as a direct interchange for Jabsco 920-0003/17937-0003, Johnson 09-1028B/09-1028B-9, Sierra 18-3038, Volvo Penta 3841697/877061-2/21951356, and Yanmar 127610-42200/127610-42270.

• Made from durable nitrile for reliable performance in saltwater environments.
• Features a 12-spline drive for a secure fit on the pump shaft.

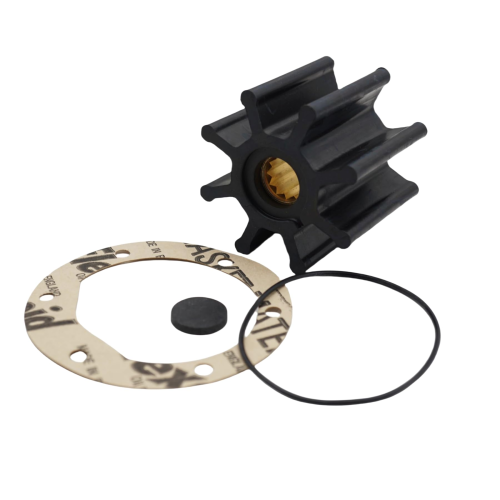

• Includes the impeller, cover gasket, O-ring, and plug for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below. This impeller is widely used in engines from Volvo Penta, Yanmar, Detroit Diesel, and more.

For Volvo Penta engines, this impeller replaces OEM parts 3841697, 877061-2, and 21951356 across many models.

For Yanmar engines, it serves as an equivalent to parts 127610-42200, 127610-42270, and 123325-42020.

This impeller kit fits the following raw water cooling pump models.

Technical Specs

Product Type

Marine Water Pump Impeller Kit

Material

Nitrile

Shaft Size

5/8" (16mm)

Diameter

2.56" (65mm)

Width

1.98" (50.2mm)

Number of Blades

8

Drive Type

12 Spline

Package Contents

4 pieces (Impeller, Cover Gasket, O-ring, Plug)

Color

Black

Application

Marine Engine Raw Water Cooling

What’s in the Box

• 1 x Water Pump Impeller
• 1 x Pump Cover Gasket
• 1 x Pump O-ring
• 1 x Plug

Installation Notes

1. Shut off the engine and close the raw water intake valve (seacock).
2. Access the raw water pump and remove the screws holding the cover plate.
3. Gently pry off the cover. Note the direction the old impeller's blades are bent.
4. Remove the old impeller using needle-nose pliers or a dedicated impeller puller tool.
5. Clean any debris or old gasket material from the pump housing and the cover plate's inner surface.
6. Install the new gasket or O-ring onto the pump body.
7. Lightly lubricate the new impeller with glycerin or dish soap (do not use petroleum grease).
8. Insert the new impeller into the housing, twisting in the direction of engine rotation to correctly bend the blades.
9. Reinstall the pump cover plate and tighten the screws evenly.
10. Open the raw water seacock before starting the engine.
11. Start the engine and immediately check for proper water flow and for any leaks around the pump cover.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
