Water Pump Impeller Kit – Fits Jabsco, Johnson, Yanmar, Volvo Penta...
Product Details
This high-performance Water Pump Impeller Kit – Fits Jabsco, Johnson, Yanmar, Volvo Penta, Westerbeke (Replaces Jabsco 653-0001-P) is an essential component for marine engine cooling systems. It serves as a reliable direct replacement for numerous OEM water pump impellers, ensuring your engine maintains optimal temperature in both fresh and saltwater environments.
It provides a direct interchange for Jabsco 653-0001-P, Johnson 09-810B-1, Volvo Penta 876097, Westerbeke 34440, and Yanmar 128990-42200 series parts.
- Engineered for easy installation with a slotted shaft pin drive.
- Built with a durable neoprene impeller and brass insert for longevity.
- Kit includes the impeller, O-ring, and two gaskets for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Jabsco | 653-0001-P, 653-0001, 18653-0001-P, 18653-0001B |
| Johnson | 09-810B-1, 09-810B |
| Volvo Penta | 876097 |
| Westerbeke | 33636, 37413, 34440 |
| Yanmar | 128990-42200, 128377-42500, 128397-42500 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fits various pumps from Jabsco and Johnson, along with a wide range of engines from Westerbeke and Yanmar.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Jabsco | 29440-1001 | 653-0001-P | ||
| Jabsco | 29460-1041 | 653-0001-P | ||
| Jabsco | 29460-1051 | 653-0001-P | ||
| Jabsco | 29460-1261 | 653-0001-P | ||
| Jabsco | 29470-2231C | 653-0001-P | ||
| Jabsco | 51520-2001 | 653-0001-P | ||
| Johnson | F4B | 09-810B-1 | ||
| Johnson | 10-24509-01 | 09-810B-1 | ||
| Johnson | 10-24509-02 | 09-810B-1 | ||
| Johnson | 10-13337-01 | 09-810B-1 | ||
| Johnson | 10-13492-01 | 09-810B-1 | ||
| Westerbeke | 4.0BCD | 4-Stroke | 34440 | |
| Westerbeke | 4.4BCD | 4-Stroke | 34440 | |
| Westerbeke | 4.4WMD | 4-Stroke | 34440 | |
| Westerbeke | 5.0BCDA/BCDB | 4-Stroke | 34440 | |
| Westerbeke | 6.0BCD | 4-Stroke | 34440 | |
| Westerbeke | 7.6BTD | 4-Stroke | 34440 | |
| Westerbeke | 7.7WMD | 4-Stroke | 34440 | |
| Westerbeke | 8.0BTD/BTDA | 4-Stroke | 34440 | |
| Westerbeke | 8.0WMD | 4-Stroke | 34440 | |
| Westerbeke | 10.0BTD/BTDA | 4-Stroke | 34440 | |
| Westerbeke | 11.0BTD | 4-Stroke | 34440 | |
| Westerbeke | 11.0WMD | 4-Stroke | 34440 | |
| Westerbeke | 12.5BTD/BTDA/BTDB | 4-Stroke | 34440 | |
| Westerbeke | 12.5WMD | 4-Stroke | 34440 | |
| Yanmar | 2GMF | 4-Stroke | 128990-42200 | |
| Yanmar | 3GMF | 4-Stroke | 128990-42200 | |
| Yanmar | 2GM | 4-Stroke | 128990-42200 | |
| Yanmar | 3GM | 4-Stroke | 128990-42200 | |
| Yanmar | 2YM | 4-Stroke | 128990-42200 | |
| Yanmar | 3YM | 4-Stroke | 128990-42200 | |
| Yanmar | 2GM20-YEU | 20 | 4-Stroke | 128990-42200 |
| Yanmar | 2GM20C-YEU | 20 | 4-Stroke | 128990-42200 |
| Yanmar | 2GM20F-YEU | 20 | 4-Stroke | 128990-42200 |
| Yanmar | 2GM20FC-YEU | 20 | 4-Stroke | 128990-42200 |
| Yanmar | 2YM15 | 15 | 4-Stroke | 128990-42200 |
| Yanmar | 3GM30-YEU | 30 | 4-Stroke | 128990-42200 |
| Yanmar | 3GM30C-YEU | 30 | 4-Stroke | 128990-42200 |
| Yanmar | 3GM30F-YEU | 30 | 4-Stroke | 128990-42200 |
| Yanmar | 3GM30FC-YEU | 30 | 4-Stroke | 128990-42200 |
| Yanmar | 3YM20 | 20 | 4-Stroke | 128990-42200 |
| Yanmar | 3YM27A | 27 | 4-Stroke | 128990-42200 |
| Yanmar | 3YM30 | 30 | 4-Stroke | 128990-42200 |
| Yanmar | 3YM30R | 30 | 4-Stroke | 128990-42200 |
Technical Specs
- Product Type
- Flexible Water Pump Impeller Kit
- Application
- Marine engine cooling systems (fresh or sea water)
- Material
- Neoprene with brass insert
- Impeller Design
- 6 blade, slotted shaft pin drive
- Drive Type
- Slotted shaft pin drive
- Dimensions
- Diameter: 51mm (2"), Width: 22mm (7/8"), Shaft: 12mm (15/32")
- Pin Outside Diameter
- 4.9mm
- Weight
- 0.07 kg (0.15 lbs) approx.

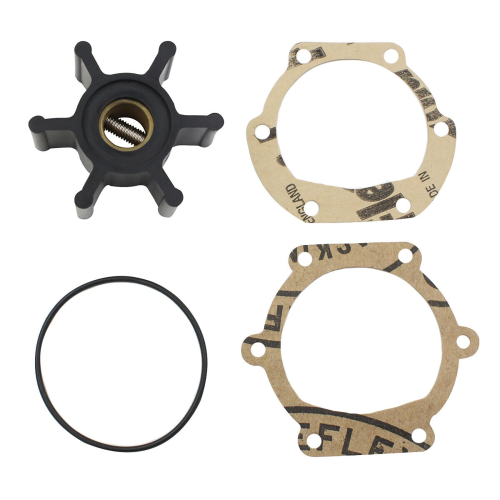

What’s in the Box
- 1 x Flexible Impeller (653-0001-P)
- 1 x O-Ring (ORG0052)
- 2 x Gasket (GAK0051, GAK0052)
Installation Notes
- Shut off the engine and close the raw water intake seacock.
- Place an absorbent towel under the pump to catch any spilled coolant.
- Remove the water pump cover plate and gasket.
- Gently remove the old impeller using needle-nose pliers or impeller puller tools. Avoid damaging the pump housing.
- Clean the inside of the pump housing and inspect for scoring or wear.
- Lubricate the new impeller and the inside of the pump housing with a suitable lubricant (e.g., glycerin or dish soap).
- Insert the new impeller, rotating the shaft in the direction of engine operation to bend the blades correctly.
- Install the new gasket and O-ring as required, then reinstall the cover plate.
- Open the seacock, start the engine, and immediately check for leaks and proper water flow.
Troubleshooting & FAQ
How do I know if this impeller fits my engine?
This impeller fits a wide range of models. The best way to confirm is to check your engine's service manual for the OEM part number and compare it against our Part Number Matrix. You can also match the dimensions (Diameter: 51mm, Width: 22mm, Shaft: 12mm) to your old part.
What are the signs of a failing impeller?
Common signs include engine overheating, reduced water flow from the exhaust, visible cracks or missing blades on the impeller, or a stiff and brittle feel to the rubber. Regular inspection is recommended.
How often should I replace my impeller?
As a general rule, replace your water pump impeller every year or every 100-200 hours of engine operation, whichever comes first. This interval can be shorter in water with high levels of sand or sediment.
My engine is still overheating after replacing the impeller. What's next?
If overheating persists, check for other blockages in the cooling system. Common issues include clogged intake strainers, heat exchangers, exhaust manifolds, or worn pump housing (cam). Ensure the seacock is fully open.
The new impeller seems difficult to install. Is this normal?
Yes, a new impeller should fit snugly. Proper lubrication is key. Applying a water-based lubricant like glycerin or dish soap to the housing and impeller will make installation much easier. Bend the blades in the direction of the pump's rotation as you insert it.
What kind of lubricant should I use?
Use a water-soluble lubricant such as glycerin or a light-viscosity dish soap. Do not use petroleum-based grease or oils, as they can cause the neoprene material to break down prematurely.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
