Water Pump Impeller Kit – Fits Jabsco, Volvo Penta, Yanmar (Replace...
Water Pump Impeller Kit – Fits Jabsco, Volvo Penta, Yanmar (Replaces Jabsco 1210-0001-P, Johnson 09-1027B-1) is backordered and will ship as soon as it is back in stock.
Product Details

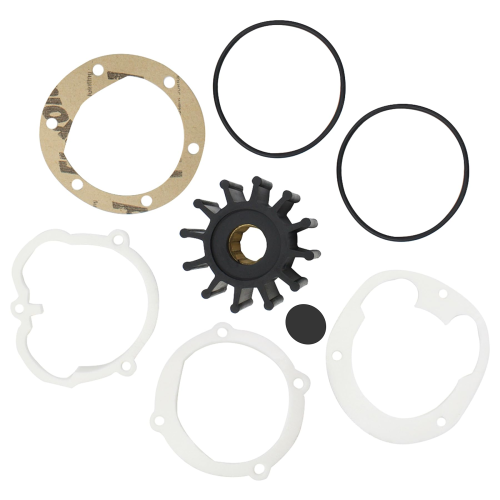

This Water Pump Impeller Kit – Fits Jabsco, Volvo Penta, Yanmar, Johnson Pumps is a flexible impeller kit designed for a wide range of marine water cooling pumps. It is compatible with many Jabsco, Johnson, Volvo Penta, Yanmar, and other inboard engines, serving as a direct replacement for Jabsco 1210-0001-P with a 12-blade, spline drive configuration.
This component provides a direct replacement for Jabsco 1210-0001/1210-0001-P, Johnson 09-1027B-1, Volvo Penta 3858256/860203/875811/21951346, Yanmar 129470-42530/129470-42531/129470-42532, and others listed in the Part Number Matrix.
- Direct replacement installation for seamless service.
- Designed for use in both fresh water and sea water environments.
- Includes impeller, o-ring, and gaskets for a complete installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Jabsco | 1210-0001, 1210-0001-P, 3085-0001 |
| Johnson | 09-1027B-1 |
| Volvo Penta | 3858256, 860203, 875811, 21951346 |
| Yanmar | 129470-42530, 129470-42531, 129470-42532 |
| Northern Lights | 1210-0001, 25-12057 |
| Onan | 132-0162 |
| Perkins | 0460038 |
| Sierra | 18-3081 |
| Ford Lehman | 1210 |
| Ancor | J050007 |
| Detroit Diesel | 5194205 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller is used in various Volvo Penta gasoline (V6, V8) and diesel engines.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Volvo Penta | 120S-A, 120S-B, 120S-C, 120S-D, 120S-E | 860203, 3858256 | |
| Volvo Penta | 275, 275A, 280B, 285A, 290A, 290DP | 860203, 3858256 | |
| Volvo Penta | 430A, 430B, 431A, 431B, 432A, 434A | 860203, 3858256 | |
| Volvo Penta | 500A, 500B, 501A, 501B, 570A, 571A, 572A | 860203, 3858256 | |
| Volvo Penta | 2001, 2001AG, 2001B, 2001BG | 860203, 3858256 | |
| Volvo Penta | 2002, 2002AG, 2002B, 2002BG, 2002D | 860203, 3858256 | |
| Volvo Penta | 2003, 2003AG, 2003B, 2003BG, 2003D, 2003T, 2003TB, 2003TB-SOLAS | 860203, 3858256 | |
| Volvo Penta | 3.0, 4.3, 5.0, 5.7 | 3862281, 21951346 | Used in gasoline engines |
Commonly found in Yanmar 4LHA series marine diesel engines.
| Brand | Model | Stroke | OEM Part No. |
|---|---|---|---|
| Yanmar | 4LHA-DTE, 4LHA-DTP, 4LHA-STE, 4LHA-STP, 4LHA-DTZE, 4LHA-DTZP | 4-Stroke | 129470-42530, 129470-42531, 129470-42532 |
Fits a wide array of Jabsco engine cooling and multi-purpose pumps.
| Brand | Model | OEM Part No. |
|---|---|---|
| Jabsco | 1673-1001, 1673-1051, 1673-2001, 1673-7001, 1673-9001, 1673-0001 | 1210-0001-P |
| Jabsco | 3270-0001, 3270-200, 10550-200, 10950-2401, 10970, 1097-21 | 1210-0001-P |
| Jabsco | 29500-1001, 29500-1201, 295001501, 29500-1101 | 1210-0001-P |
| Jabsco | 11850-0701, 11850-0711, 11850-0801, 18830-0000, 18830-0010 | 1210-0001-P |
| Jabsco | 18840-0010, 18400-0050, 22860-2001, 3890-9011, 52040-2001 | 1210-0001-P |
| Jabsco | 5660-0001, 5850-0001, 5560-0001, 3380-0001, 7320-9001, 7320F | 1210-0001-P |
| Jabsco | 7120-9001, 7120F, 9970-200, 9990-41, 9990-21, 9970-241, 30410-9001, 4180 | 1210-0001-P |
Compatible with select Northern Lights generator sets.
| Brand | Model | OEM Part No. |
|---|---|---|
| Northern Lights | 25-12057, 25-15405 | 25-12057 |
Technical Specs
- Product Type
- Flexible Water Pump Impeller Kit
- Installation
- Direct replacement
- Impeller Material
- Neoprene Rubber
- Application
- Marine engine cooling/water pumping
- Connection
- Spline Drive (Type 7)
- Insert Material
- Brass
- Housing Color
- Black
- Dimensions
- Diameter: 57mm (2-1/4"), Width: 31.5mm (1-1/4"), Shaft: 16mm (5/8")
- Weight
- Approx. 0.18 kg (0.40 lb)
- Number of Blades
- 12
- Silhouette
- K Profile
- Operating Environment
- Fresh water or sea water
- Maintenance
- Recommended replacement yearly or sooner depending on engine duty
What’s in the Box
- 1 x Impeller (Replaces Jabsco 1210-0001)
- 1 x O-Ring
- 4 x Gaskets
Installation Notes
- Shut off the engine and close the raw water intake valve (seacock).
- Remove the screws from the water pump's end cover plate.
- Carefully remove the old impeller, using pliers if necessary. Note the orientation of the blades.
- Clean the inside of the pump housing and the cover plate, removing any old gasket material or debris.
- Position the new gasket against the housing.
- Lubricate the new impeller with a small amount of water-resistant grease or dish soap, then install it with a twisting motion, ensuring the blades bend in the same direction as the old one.
- Reinstall the end cover plate, tighten the screws evenly, and reopen the seacock.
- Start the engine and check for proper water flow and for any leaks around the pump cover.
Troubleshooting & FAQ
How do I know if my impeller needs replacing?
Common signs of a failing impeller include engine overheating, a noticeable reduction in water flow from the exhaust, visible cracks or missing blades, or inflexible, stiffened blade material.
How often should I replace my impeller?
For preventative maintenance, we recommend replacing your impeller annually or every 100-200 hours of engine use, whichever comes first. Replacement may be needed sooner in environments with high levels of sand or silt.
Will this fit my specific engine if it's not on the list?
While this impeller fits a wide variety of models, we can only guarantee compatibility for the engines and pumps explicitly listed. Always check your OEM part number and the impeller dimensions (Diameter: 57mm, Width: 31.5mm) against your old part before ordering.
What is the difference between a neoprene and nitrile impeller?
This impeller is made of neoprene, which is the standard material for raw water engine cooling applications in both fresh and salt water. Nitrile impellers are typically used for pumping oily or diesel-fuel-contaminated water, not for primary engine cooling.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. It was manufactured in an ISO 9002 facility and is batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window provided the item is unused and in its original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
