Water Pump Impeller Kit – Fits Johnson, Yamaha, Jabsco, Yanmar Inboards (Replaces 09-812B-1, 6TA-12457-00, 13554-0001-P, 119773-42600)

$16.69 $26.00

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Johnson, Yamaha, Jabsco, Yanmar Inboards (Replaces 09-812B-1, 6TA-12457-00, 13554-0001-P, 119773-42600) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit provides a reliable replacement solution for a wide range of inboard marine engines. It is specifically designed to fit Johnson F6B-9 V8 pumps, Indmar Monsoon 320–350HP engines, and various Volvo Penta, Yanmar, and Yamaha applications.

This kit directly interchanges with multiple OEM and aftermarket part numbers, including Johnson 09-812B-1, Jabsco 13554-0001-P, Yanmar 119773-42600, Yamaha 6TA-12457-00, and Sierra 18-3306.

Simple direct-replacement installation.
Made from durable, high-performance neoprene.
Features a 12-spline brass hub for secure engagement.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Johnson	09-812B
Johnson	09-812B-1
Jabsco	13554-0001
Jabsco	13554-0001-P
Yanmar	119773-42600
Yamaha	6TA-12457-00
Sierra	18-3306
Volvo Penta	21951354
Volvo Penta	3842786
Volvo Penta	21213664
Volvo Penta	21951352
CEF	500124
JMP	7136
DJ Pump	09-105-1201
Indmar	S685007

Technical Specs

Product Type: Water Pump Impeller Kit
Installation: Direct replacement
Impeller Material: Neoprene
Drive Type: Spline Drive (12-spline)
Blades: 12
Hub Material: Brass
Diameter: 57.1 mm (2.25")
Width: 48.2 mm (1.90")
Shaft Diameter: 16 mm (5/8")
Silhouette: 12 Blade

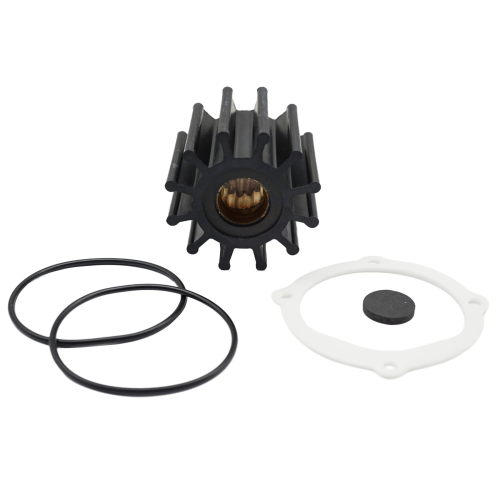

What’s in the Box

1 x Impeller (18-3066)
2 x O-Rings
1 x Gasket
1 x Plug

Installation Notes

Disconnect the boat's battery to prevent accidental starts.
Close the raw water intake seacock to stop water flow.
Place absorbent pads under the pump to catch any spills.
Remove the screws from the water pump's cover plate.
Note the rotational direction of the old impeller blades before carefully removing it.
Clean and inspect the pump housing's interior for any scoring or damage.
Lightly lubricate the new impeller and housing interior with a suitable marine lubricant.
Insert the new impeller with a twisting motion, ensuring blades bend in the correct direction of pump rotation.
Install the new gasket or O-ring on a clean sealing surface.
Re-install the cover plate and tighten screws evenly in a star pattern.
Open the seacock and reconnect the battery.
Start the engine and immediately check for adequate water flow and any leaks around the pump.

Troubleshooting & FAQ

How do I know if this impeller fits my engine?

The best way is to match your existing part number to the equivalents listed in our Part Number Matrix. If you cannot find your part number, verify the technical specifications (Diameter, Width, Shaft Diameter, Drive Type) against your old impeller.

What are common signs of a failing impeller?

Key indicators include engine temperatures rising above normal, a noticeable reduction in water flow from the exhaust outlet, and visible cracks or missing blades on the old impeller upon inspection.

How often should I replace my impeller?

For preventative maintenance, it is recommended to replace your impeller every one to two years, or every 100-200 hours of engine use. The interval can vary based on usage (e.g., in sandy or silty water).

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
