Product Details

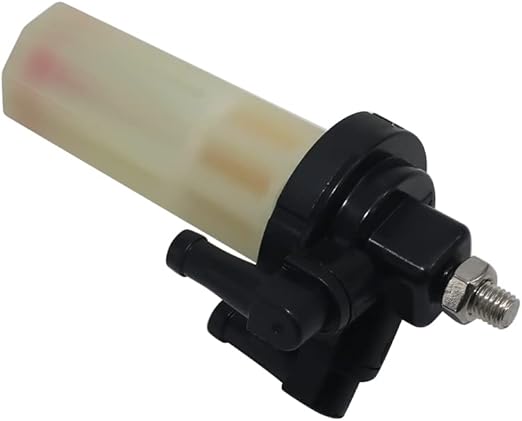

This is a complete Fuel Filter Assembly – Fits Yamaha Outboard 30–115 HP 4-Stroke (Replaces 6D8-24560-08-00, 68V-24560-00-00), designed for reliable performance in marine environments. It is compatible with a wide range of Yamaha 4-stroke outboard engines from 30 HP to 115 HP manufactured from 2005 to the present, including the F30, F40, F50, F60, F70, F75, F80, F90, F100, F115, T50, and T60 series.
This assembly provides a direct interchange for Yamaha part numbers 68V-24560-00-00, 68V-24560-01-00, 6D8-24560-08-00, and 6D8-24560-09-00, ensuring a precise fit and restoring original fuel system efficiency.
- Installs in-line with standard fuel hoses for straightforward setup.
- Features 8mm (5/16") barbed nipple fittings for secure connections.
- Includes an integrated water detection sensor to protect your engine.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 68V-24560-00-00 | 6D8-24560-08-00 | |
| Yamaha | 68V-24560-01-00 | 6D8-24560-08-00 | |
| Yamaha | 6D8-24560-09-00 | 6D8-24560-08-00 | |
| Yamaha | 6D8-24560-08-00 | Current active part number |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is designed exclusively for the following Yamaha engine models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F30 | 30 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F40 | 40 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F50 | 50 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | T50 | 50 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F60 | 60 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | T60 | 60 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F70 | 70 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F75 | 75 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F80 | 80 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F90 | 90 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F100 | 100 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F115 | 115 | 4-Stroke | 2005–present | 68V-24560-01-00 | Superseded by 6D8-24560-08-00 |
| Yamaha | F115TLR | 115 | 4-Stroke | 2005–present | 6D8-24560-08-00 | Current active part number |
| Yamaha | F50TLR | 50 | 4-Stroke | 2005–present | 6D8-24560-08-00 | Current active part number |
| Yamaha | F75TLR | 75 | 4-Stroke | 2005–present | 6D8-24560-08-00 | Current active part number |
| Yamaha | F90TXR | 90 | 4-Stroke | 2005–present | 6D8-24560-08-00 | Current active part number |
Technical Specs
- Product Type
- Fuel Filter Assembly
- Installation
- In-line
- Fuel Type
- Gasoline
- Connection
- 8mm (5/16")
- Housing Material
- Plastic with transparent filter cup
- Housing Color
- Black with clear viewing window
- Dimensions
- 17.0cm L x 8.0cm W x 7.5cm H
- Fitting Type
- Barbed nipple
- Other Technical Attributes
- Includes water detection sensor
- Warranty
- Manufacturer warranty (varies by seller)
What’s in the Box
- 1 x Filter Assembly (equivalent to 6D8-24560-08-00)
- 1 x Filter Cup (equivalent to 68V-24521-01-00/68V-24521-00-00)
- 1 x O-Ring (equivalent to 93210-32738-00)
Installation Notes
- Shut off the engine and allow it to cool completely. Turn off the fuel supply valve.
- Place an absorbent rag under the filter to catch any spilled fuel.
- Loosen the clamps and carefully disconnect the fuel lines. Note the direction-of-flow arrow on the filter housing.
- Disconnect the water sensor wiring harness, if equipped.
- Remove the old filter assembly from its mounting bracket.
- Install the new assembly, ensuring the flow arrow points towards the engine.
- Reconnect fuel lines and secure clamps. Reconnect the water sensor.
- Turn the fuel supply on and prime the system per your engine's manual.
- Start the engine and carefully inspect for any leaks.
Troubleshooting & FAQ
How do I know if this filter fits my specific engine model?
This filter assembly fits a wide range of Yamaha 30–115 HP 4-stroke outboards from 2005 to present. The best way to confirm is to check your existing part number against the cross-references in our Part Number Matrix or find your exact engine model in the compatibility table.
What is the correct installation orientation?
The filter housing has an arrow indicating the direction of fuel flow. This arrow must point towards the engine for correct installation and function.
How often should I replace my fuel filter?
For optimal engine protection, it is recommended to replace the fuel filter annually or every 100 hours of operation, whichever comes first. Refer to your engine's service manual for specific maintenance intervals.
What are the signs of a failing or clogged fuel filter?
Common symptoms include difficulty starting, rough idling, stalling at low speeds, reduced engine power, and hesitation during acceleration. You may also see visible debris or water in the transparent filter cup.
What does the water detection sensor do?
The integrated sensor detects water that has separated from the fuel and collected in the filter cup. When water is detected, it typically triggers an alert on your console, allowing you to drain the cup before water can reach and damage the engine.
Is this a direct replacement for the Yamaha 68V-24560-01-00?
Yes, this is a direct aftermarket replacement. The OEM part 68V-24560-01-00 was superseded by 6D8-24560-08-00, which this assembly cross-references.
What is the difference between OEM and aftermarket parts?
This listing is for an aftermarket replacement, not an OEM part. It is built to the same specifications with comparable materials in an ISO 9002 certified facility and is batch-inspected to ensure quality and performance.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free. Expedited options, where available, will be presented at checkout.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or contact us for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model is listed as compatible—do not order.
- This is an aftermarket replacement component, not an original equipment manufacturer (OEM) part.
- Professional installation is highly recommended for safety and optimal performance.
