Impeller Kit – Fits Sherwood Pumps & Onan Generators (Replaces ...
Impeller Kit – Fits Sherwood Pumps & Onan Generators (Replaces Sherwood 10077K-SHW, Onan 0132-0375, 0132-0498) is backordered and will ship as soon as it is back in stock.
Product Details
This Impeller Kit – Fits Sherwood 10077K Pumps and Onan Generators is a direct replacement for Sherwood water pumps found in various inboard engines and Onan generators. The durable neoprene impeller ensures reliable performance for marine cooling systems.
It provides a direct interchange for Sherwood 10077K/10077K-SHW, Onan 0132-0375/0132-0498, CEF 500166, JMP 7110, Sierra 23-2000/23-3302/23-3310, and more.
- Designed for inboard engine water pump applications.
- Features a 12-blade neoprene impeller for efficient water flow.

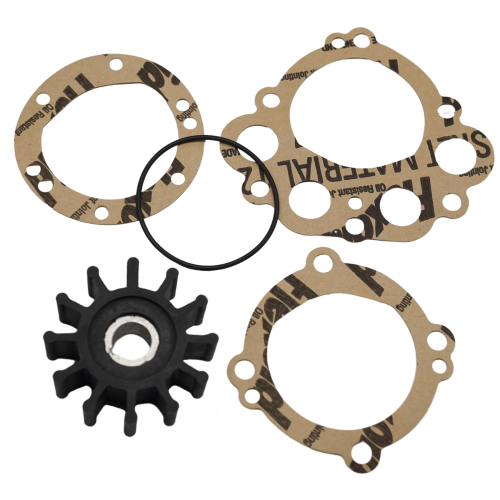

- The kit includes the impeller, gaskets, and an O-ring for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Sherwood | 10077K / 10077K-SHW |
| Onan | 0132-0375 / 0132-0498 |
| CEF | 500166 |
| JMP | 7110 |
| Sierra | 23-2000 / 23-3302 / 23-3310 |
| Westerbeke | 11764 / 33100 / 33112 |
| Crusader | 727103 |
| Chris Craft | 16.80-90047 |
| Mallory | 9-45716 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller fits various Sherwood raw water pumps used in Chris Craft, Palmer, Westerbeke, and Onan engines.
| Brand | Model | Application | Notes |
|---|---|---|---|
| Sherwood | A20 | Used in Westerbeke Pilot 10-20 engines | - |
| Sherwood | E05 | Used in Light Plants engines | - |
| Sherwood | E20 | Used in Palmer I.H.60 engines | - |
| Sherwood | G701-01 | Used in Onan 6.5-10 KW engines | - |
| Sherwood | H70 | Used in Westerbeke Gov Life Boat engines | - |
| Sherwood | M10095G | Used in Chris Craft Model 283 engines | - |
| Sherwood | M10261G | Used in Chris Craft Model B engines | - |
| Sherwood | N10360GX | Used in Chris Craft Model 283 engines | - |
| Sherwood | Q10805G | Used in Medalist Model OK-OL engines | - |
| Sherwood | Q10840 | Used in Gray Marine Gov engines | - |
| Sherwood | R30G | Used in inboard engines | - |
| Sherwood | R30G-1-01 | Used in Westerbeke diesel 6 cylinder engines | - |
Also compatible with the following Onan marine generator models.
| Brand | Model | Notes |
|---|---|---|
| Onan | MDKAA | - |
| Onan | MDKAB | - |
| Onan | MDKAL | - |
| Onan | MDKAV | - |
| Onan | MDKAW | - |
| Onan | MDKAZ | - |
| Onan | MDKBG | - |
| Onan | MDKBK | - |
| Onan | MDKBL | - |
| Onan | MDKBM | - |
| Onan | MDKBN | - |
| Onan | MDKDK | - |
| Onan | MDKDL | - |
| Onan | MDKDM | - |
| Onan | MDKDN | - |
Technical Specs
- Product Type
- Impeller Repair Kit
- Installation
- Inboard Water Pump
- Impeller Material
- Neoprene
- Impeller Dimensions
- Width: 25/32" (19.8mm), Diameter: 2-1/4" (57.1mm)
- Shaft Size
- 1/2" (12.7mm)
- Drive Type
- 3/32" key drive
- Silhouette
- 12 blades
- Weight
- Approx. 0.30 lbs (0.136 kg)
What’s in the Box
- 1 x Impeller
- 3 x Gaskets
- 1 x O-ring
Installation Notes
- Close the water intake seacock.
- Loosen the screws and remove the water pump cover plate.
- Use pliers or a suitable tool to grip the old impeller hub and pull it straight out. Note the direction of the old blades.
- Clean the inside of the pump housing, removing any debris or old gasket material.
- Lightly lubricate the new impeller and the housing interior with a marine-safe lubricant.
- Insert the new impeller, bending the blades in the same direction as the old ones, and align it with the keyway.
- Place the new gasket and O-ring in position.
- Reinstall the cover plate and tighten the screws evenly.
- Open the seacock and start the engine, checking immediately for leaks.
Troubleshooting & FAQ
How do I know if this impeller fits my pump?
Verify that your pump model is listed in the compatibility tables. The surest way to confirm fitment is by matching your existing part number to one of the cross-references in the Part Number Matrix.
What are signs of a failing impeller?
Common signs include engine overheating at idle or low speeds, reduced water flow from the exhaust, and visible cracks or missing blades on the old impeller upon inspection. Small bits of black rubber in your sea strainer are also a key indicator.
How often should I replace my water pump impeller?
For most marine engines, it is recommended to inspect the impeller annually and replace it every 1–2 years or every 200 hours of operation, whichever comes first. Refer to your engine's service manual for specific intervals.
Can I run the engine without water after installing?
No. Never run a raw water pump dry. Impellers rely on water for lubrication, and even a few seconds of dry operation can cause immediate damage to the neoprene blades.
What's the difference between neoprene and nitrile impellers?
Neoprene impellers (like this one) are designed for engine cooling systems that only pump water. Nitrile impellers are used for bilge pumps or transfer pumps where oil or fuel may be present in the water, as nitrile is more resistant to petroleum products.
The kit came with multiple gaskets. Which one do I use?
This kit includes several gaskets to fit different pump variations. Compare the gaskets to your pump's cover plate and use the one that provides a perfect match and seal. Discard the unused ones.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
