Impeller Repair Kit – Fits Sherwood, GM, Crusader, Volvo Penta (Replaces Sierra 18-3047, Crusader 20300, Oberdorfer 8922)

Product Details

This Marine Impeller Repair Kit – Fits Sherwood 10615K-SHW (Replaces Sierra 18-3047, Crusader 20300, Oberdorfer 8922) is a critical service component for a wide variety of inboard marine engine raw water pumps. It is compatible with pumps used in many GM, Crusader, Pleasurecraft, Volvo Penta, Ilmor, and other marine engines from the 1970s to the present day.

It directly replaces dozens of OEM and aftermarket part numbers, including Sherwood 10615K-SHW, Sierra 18-3047, Crusader 20300, and many others listed in the matrix below.

• Engineered with a durable neoprene compound for reliable performance in raw water environments.
• The kit includes one impeller, an O-ring, and various gaskets required for a complete service.
• Installs via a 5/8" shaft with a 3/16" keyway drive.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket brands.

Engine & Model Compatibility

Confirm your pump or engine model in the tables below. Due to the wide range of applications, verifying fitment using your part number or model is essential.

For Sherwood pumps: Widely used in G-series, P-series, and various other Sherwood raw water pumps. Check your pump model number against the list below.

For Crusader and Pleasurecraft (PCM) engines: Commonly found in V8 models, including the 220, 350, and 454.

Technical Specs

Product Type

Raw Water Pump Impeller Kit

Material

Neoprene

Blade Configuration

12 Blades

Diameter

2-9/16" (65mm)

Width

1-5/8" (41.2mm)

Shaft Size

5/8" (16mm)

Drive Type

3/16" Key Drive

Application

Engine Cooling Water Pumps

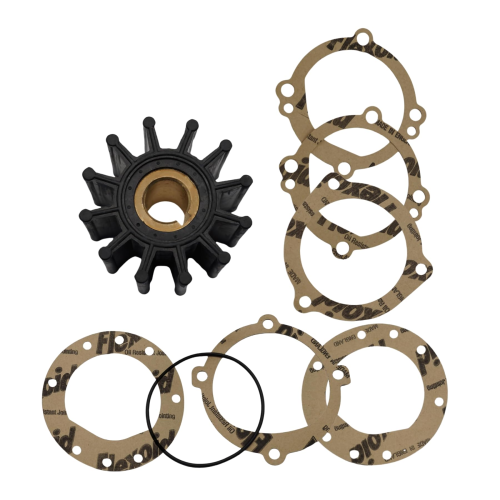

What’s in the Box

• 1 x Impeller (10615K)
• 6 x Gaskets (Various)
• 1 x O-ring

Installation Notes

1. Ensure the engine is off and the raw water intake seacock is closed.
2. Remove the cover plate from the raw water pump housing.
3. Use pliers or an impeller puller to carefully remove the old impeller.
4. Clean any debris or old gasket material from the pump housing and cover plate.
5. Lightly lubricate the new impeller and the inside of the pump housing with a water-based lubricant or dish soap.
6. Install the new impeller by pushing it into the housing while turning the driveshaft in its normal direction of rotation to bend the blades correctly. Do not force it in dry.
7. Install the new O-ring or gasket, ensuring it is seated properly without being pinched.
8. Reinstall the pump cover plate and tighten the screws evenly in a star pattern.
9. Open the intake seacock, start the engine, and immediately check for leaks and proper water flow from the exhaust.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
