Water Pump Impeller – Fits Mercury Mariner & Yamaha 20-30 HP (R...
Product Details

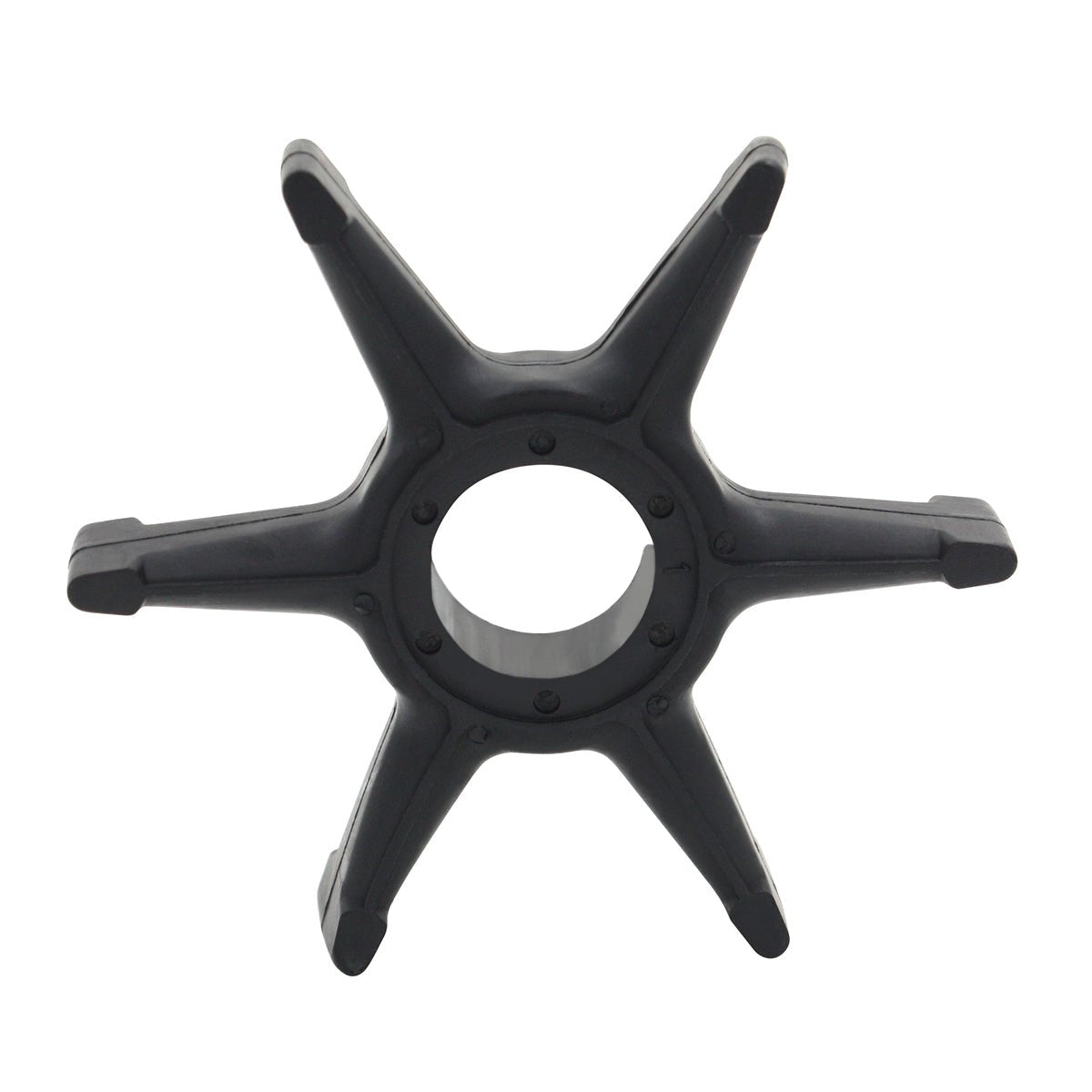

This Water Pump Impeller – Fits Mercury Mariner 20-30 HP & Yamaha 25-30 HP (Replaces 47-84797M, 689-44352-02) is a crucial component for maintaining your engine's cooling system. It is designed for specific Mercury/Mariner 20–30 HP 2-Stroke engines (1984–1997) and Yamaha 25–30 HP 2-Stroke engines (1984–1997), ensuring reliable performance and fitment.
This part serves as a direct interchange for Mercury/Mariner part numbers 47-84797M/47-97793M; Yamaha 689-44352-02/689-44352-03/689-44352-00-00; Sierra 18-3067; CEF 500326; and Mallory 9-45600.
- Engineered as a direct replacement part for straightforward installation.
- Constructed with a durable plastic hub and robust neoprene blades.
- Package includes one water pump impeller.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury/Mariner | 47-84797M |
| Mercury/Mariner | 47-97793M |
| Yamaha | 689-44352-02 |
| Yamaha | 689-44352-03 |
| Yamaha | 689-44352-00-00 |
| Sierra | 18-3067 |
| CEF | 500326 |
| Mallory | 9-45600 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller fits select Mercury and Mariner 2-stroke outboard models from 20 to 30 HP. Please verify your model code or exhaust type as noted.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Mercury/Mariner | 20C (Mode Code 6A9) | 20 | 2-Stroke | 47-84797M | |
| Mercury/Mariner | 25C (through propeller exhaust) | 25 | 2-Stroke | 47-84797M | |
| Mercury/Mariner | 25D | 25 | 2-Stroke | 47-84797M | |
| Mercury/Mariner | 28 HP (Mode Code 664) | 28 | 2-Stroke | 47-84797M | |
| Mercury/Mariner | 30A W30 (W-MARATHON) | 30 | 2-Stroke | 47-84797M |
Fits various Yamaha 2-stroke outboards from 25 to 30 HP manufactured between 1984 and 1997, including C and CV series.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | 25 HP | 25 | 2-Stroke | 1984–1987 | 689-44352-02 |
| Yamaha | 30 HP | 30 | 2-Stroke | 1984–1987 | 689-44352-02 |
| Yamaha | CV25 | 25 | 2-Stroke | 1989–1990 | 689-44352-02 |
| Yamaha | CV30 | 30 | 2-Stroke | 1989–1990 | 689-44352-02 |
| Yamaha | C25 | 25 | 2-Stroke | 1991–1997 | 689-44352-02 |
| Yamaha | C30 | 30 | 2-Stroke | 1991–1997 | 689-44352-02 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct replacement
- Housing Material
- Plastic hub with neoprene blades
- Dimensions
- Outer Diameter: 68.52 mm (2.7 in)
Height: 13.02 mm (0.51 in)
Internal Shaft Insert Diameter: 16.03 mm (0.63 in) - Weight
- 19 g (0.67 oz)
- Blade Count
- 6
What’s in the Box
- 1 × Water Pump Impeller
Installation Notes
- Disconnect the battery and ignition system for safety.
- Position the outboard vertically and drain the lower unit gear oil.
- Remove the mounting bolts securing the lower unit (gearcase) to the upper leg.
- Carefully lower the gearcase to expose the driveshaft and water pump assembly.
- Unbolt and remove the water pump housing cover.
- Slide the old impeller off the driveshaft, noting the original orientation of the blades.
- Clean the housing and wear plate surfaces, inspecting for grooves or damage.
- Lightly lubricate the new impeller and housing interior with a marine-safe soap or grease.
- Slide the new impeller onto the driveshaft while turning the shaft clockwise to set the blades correctly.
- Reinstall the water pump housing, ensuring all seals and gaskets are properly seated.
- Reassemble the lower unit to the engine, aligning the driveshaft and shift shaft.
- Refill the gearcase with fresh oil and reconnect the battery before testing.
Troubleshooting & FAQ
How do I know if my impeller needs replacing?
Common signs of a failing impeller include a weak or non-existent water stream from the "telltale" outlet, engine overheating alerts, or visible damage like cracked, brittle, or missing blades upon inspection.
How often should I replace my impeller?
As a preventative maintenance best practice, most manufacturers recommend replacing the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent changes.
Will this fit my specific engine model?
This impeller is designed for the specific models and years listed in the compatibility tables. Always double-check your engine's model number and original part number against our lists. Do not purchase if your model is not explicitly listed.
What is the difference between this impeller and the OEM part?
This is an aftermarket part designed to meet or exceed original equipment manufacturer (OEM) specifications for fit, form, and function. It offers a cost-effective solution without compromising on the quality of materials, using a durable plastic hub and neoprene blades suitable for marine environments.
Is the impeller hub plastic or metal?
This impeller features a durable, corrosion-resistant plastic hub, as specified in the technical details. This is a common and effective design for this engine class.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
