Water Pump Impeller Kit with Housing – Fits Johnson/Evinrude V4 & V6 Outboards (Replaces 395073, 388644, 389158, 777813)

Product Details

This comprehensive Water Pump Impeller Kit with Housing is engineered for Johnson/Evinrude 85–235 HP V4 and V6 hydraulic shift outboard engines manufactured between 1976 and 1978. It provides all necessary components for a complete water pump overhaul, ensuring your engine maintains optimal cooling and performance.

It serves as a direct replacement for multiple OEM and aftermarket parts, including Johnson/Evinrude 395073, 388644, 389158, and 777813, as well as Sierra 18-3393, GLM 12101, and Mallory 9-48208.

• Installs in the outboard's lower unit to restore the cooling system.
• The kit includes a durable pump housing and a high-efficiency impeller.
• Utilizes the half-moon style impeller key for proper driveshaft engagement.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Engine & Model Compatibility

Confirm your engine model and year in the table below.

For Johnson/Evinrude Owners: This kit specifically fits V4 and V6 models with hydraulic shift systems from 1976 to 1978. Please verify your model number and year to ensure correct fitment.

Technical Specs

Product Type

Water Pump Kit with Housing

Installation

Outboard Lower Unit

Housing Color

Silver, Black (components)

Other Technical Attributes

Uses half-moon impeller key

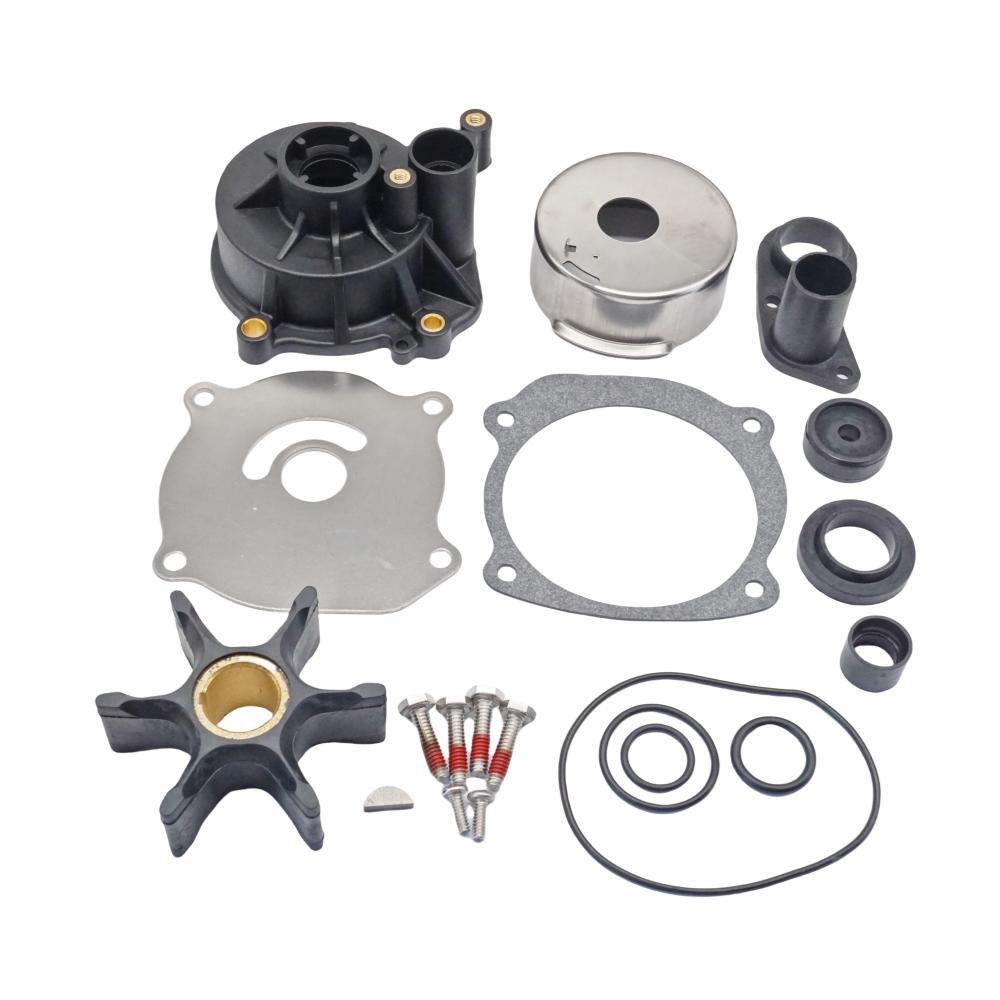

What’s in the Box

• 1 x Cup & Plate Assembly
• 1 x Impeller (Replaces 395289)
• 1 x Impeller Gasket (Replaces 325537)
• 1 x Pump Housing (Replaces 393632)
• 1 x Wear Plate
• 4 x Install Bolts
• 1 x Key (Half-moon style)
• 1 x Seal
• 3 x O-Rings
• 3 x Gaskets

Installation Notes

1. Disconnect the battery and remove the engine cover.
2. Drain the gearcase oil from the lower unit.
3. Unbolt and carefully remove the lower unit (gearcase) from the outboard's midsection.
4. Remove the bolts securing the old water pump housing.
5. Slide the old housing, impeller, and wear plate off the driveshaft. Note the component order.
6. Thoroughly clean the driveshaft and mating surfaces, removing any old gasket material or sealant.
7. Install the new lower gasket, wear plate, and impeller key on the driveshaft.
8. Slide the new impeller onto the driveshaft, rotating it clockwise to seat the blades correctly.
9. Align and install the new pump housing and cup assembly, securing it with the provided bolts. Torque to manufacturer specifications.
10. Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
11. Refill the gearcase with fresh marine gear lube.
12. With the motor in water or connected to a flusher, start the engine and verify a steady stream of water from the tell-tale port.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
