Valve Body Gasket – Fits OMC Evinrude/Johnson V4 Cross Flow 140 (Replaces 332369, 0332369)
Valve Body Gasket – Fits OMC Evinrude/Johnson V4 Cross Flow 140 (Replaces 332369, 0332369) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Valve Body Gasket – Fits OMC Evinrude/Johnson V4 Cross Flow 140 (Re...
Product Details

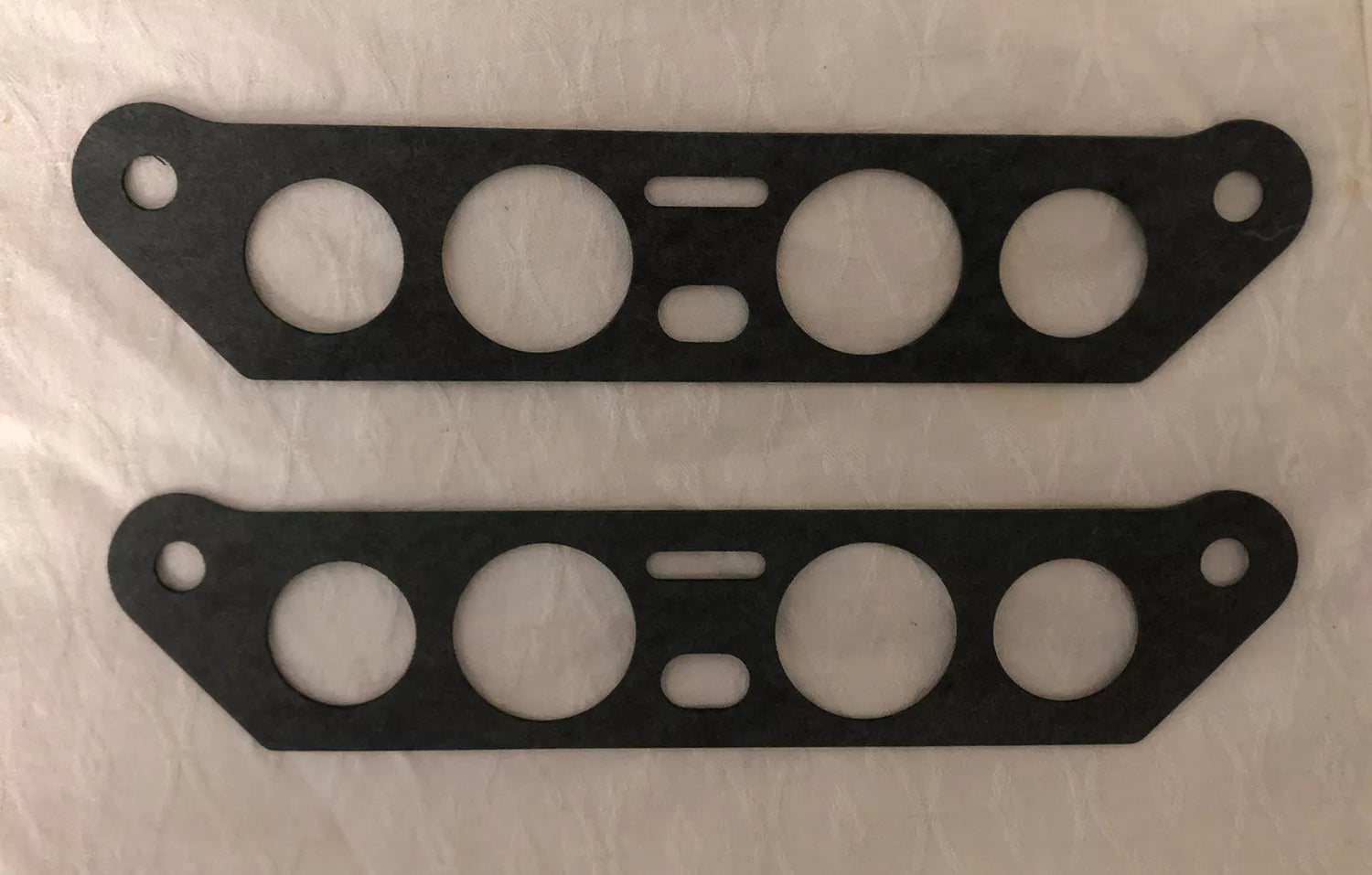

This high-quality Valve Body Gasket – Fits OMC Evinrude/Johnson V4 Cross Flow 140 provides a reliable seal for the thermostat housing on OMC, Evinrude, and Johnson 140 HP V4 Cross Flow 2-stroke outboard engines manufactured between 1978 and 1984.
It serves as a direct replacement for OEM part numbers 332369 and 0332369, ensuring a precise fit and restoring original performance.
- Engineered for direct-replacement installation.
- Designed for use in gasoline-powered marine outboard engines.
- Specifically functions as a thermostat housing gasket.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| OMC | 332369 |
| OMC | 0332369 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
OMC / Johnson / Evinrude: The following table details compatibility for V4 Cross Flow series engines.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Johnson/Evinrude | V4 Cross Flow | 140 | 2-Stroke | 1978–1984 | 332369/0332369 | Used on thermostat housing |
Technical Specs
- Product Type
- Valve Body Gasket
- Installation
- Direct replacement
- Fuel Type
- Compatible with gasoline outboard engines
- Housing Material
- Gasket material (paper/fiber composite)
- Housing Color
- Brown/tan
- Dimensions
- 7.13" L x 6.0" W x 1.06" H
- Other Technical Attributes
- Thermostat housing gasket for V4 Cross Flow engines
What’s in the Box
- 1 x Valve Body Gasket (332369/0332369)
Installation Notes
- Ensure the engine is off and cool. Disconnect the negative battery terminal and drain the cooling system as per your engine's service manual.
- Locate the thermostat housing and carefully remove the mounting bolts. Note their positions if they vary in length.
- Gently detach the housing cover. If it is stuck, avoid prying with sharp tools that could damage the sealing surfaces.
- Remove the old gasket completely. Clean both the engine block and housing cover mating surfaces thoroughly, removing all old gasket material and corrosion.
- Position the new gasket onto the engine block, aligning it with the bolt holes and coolant passages.
- Reinstall the thermostat housing cover and tighten the bolts in a crisscross pattern to the manufacturer's recommended torque specification. Do not overtighten.
- Reconnect the battery, refill the cooling system, and run the engine while checking for any leaks around the housing.
Troubleshooting & FAQ
How do I confirm this gasket fits my specific engine model?
This gasket is designed for OMC, Johnson, and Evinrude 140 HP V4 Cross Flow engines made from 1978 to 1984. Always cross-reference your engine's original part number with the replacements listed (332369, 0332369) and consult your service manual to be certain.
What are common signs of a failed thermostat housing gasket?
Symptoms of a bad gasket include visible coolant leaks around the thermostat housing, engine overheating, or white steam/smoke from the engine cowling. An unexplained drop in coolant level can also indicate a leak.
Can I reuse my old gasket or this new one in the future?
No. Gaskets like this are single-use components designed to crush and seal. Once compressed, they will not provide a reliable seal if removed and reinstalled. Always use a new gasket when servicing the thermostat.
Is any sealant required with this gasket?
Most paper or composite gaskets are designed to be installed dry. Applying sealant can sometimes interfere with proper sealing unless explicitly recommended by the engine manufacturer. For best results, follow your service manual's instructions.
What is the difference between an OEM part and an aftermarket part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials and manufactured in an ISO 9002 facility, with batch inspections for consistency.
How fast is shipping and what does it cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free, with expedited options available at checkout where applicable.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. Please see our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchasing. If anything differs—even if your model is listed as compatible—do not proceed with the purchase.
- This is an aftermarket replacement component, not an original equipment manufacturer (OEM) part.
- Professional installation is highly recommended for safety and optimal performance.
