Water Pump Gasket – Fits Yamaha 25-30HP Outboards (Replaces 689-443...
Product Details

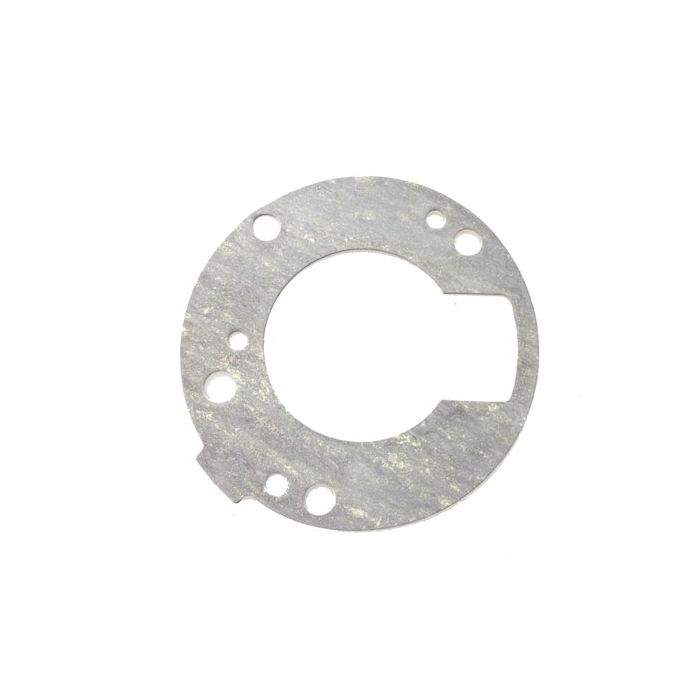

This high-quality Water Pump Gasket – Fits Yamaha 25-30HP Outboards (Replaces 689-44315-A0-00) provides a reliable seal for Yamaha 2-stroke outboard motors manufactured between 1984 and 1996. It is engineered to meet OEM specifications for fit and performance.
This part directly interchanges with Yamaha part numbers 689-44315-A0-00 and 689-44315-01-00, as well as GLM Marine 38009.
- Installs between the water pump housing and the lower unit.
- Constructed from durable gasket material to ensure a proper seal and prevent leaks.
- Designed as a direct OEM-equivalent replacement component.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 689-44315-A0-00 | Current Part |
| Yamaha | 689-44315-01-00 | Superseded by 689-44315-A0-00 |
| GLM Marine | 38009 | Aftermarket Interchange |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Outboards: Please verify your specific model and year against this list. Note that some international models are included.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 25ELN, 25ESN, 25LN, 25SN | 25 | 2-Stroke | 1984 | 689-44315-A0-00 | |
| Yamaha | 25ELK, 25ESK, 25LK, 25SK | 25 | 2-Stroke | 1985 | 689-44315-A0-00 | |
| Yamaha | 25ELJ, 25ESJ, 25LJ, 25SJ | 25 | 2-Stroke | 1986 | 689-44315-A0-00 | |
| Yamaha | 25ELH, 25ESH, 25LH, 25SH | 25 | 2-Stroke | 1987 | 689-44315-A0-00 | |
| Yamaha | CV25ELD, CV25EMLD | 25 | 2-Stroke | 1990 | 689-44315-A0-00 | |
| Yamaha | C25ELHP, C25ELRP | 25 | 2-Stroke | 1991 | 689-44315-A0-00 | |
| Yamaha | C25ELRQ, C25MSHQ | 25 | 2-Stroke | 1992 | 689-44315-A0-00 | |
| Yamaha | C25ELHR, C25ELRR, C25MLHR, C25MSHR | 25 | 2-Stroke | 1993 | 689-44315-A0-00 | |
| Yamaha | 25D (695) | 25 | 2-Stroke | 1985–1990, 1993 | 689-44315-A0-00 | International Model |
| Yamaha | 25HK (6J0) | 25 | 2-Stroke | 1993 | 689-44315-A0-00 | International Model |
| Yamaha | 30ELN, 30ESN | 30 | 2-Stroke | 1984 | 689-44315-A0-00 | |
| Yamaha | 30ELK, 30ESK | 30 | 2-Stroke | 1985 | 689-44315-A0-00 | |
| Yamaha | 30ELJ, 30ESJ | 30 | 2-Stroke | 1986 | 689-44315-A0-00 | |
| Yamaha | CV30ELF | 30 | 2-Stroke | 1989 | 689-44315-A0-00 | |
| Yamaha | CV30ELD | 30 | 2-Stroke | 1990 | 689-44315-A0-00 | |
| Yamaha | C30ELRP | 30 | 2-Stroke | 1991 | 689-44315-A0-00 | |
| Yamaha | 30A (689) | 30 | 2-Stroke | 1985, 1990–1991 | 689-44315-A0-00 | International Model |
| Yamaha | 20C (6A9), 20C (6A90) | 20 | 2-Stroke | 1985–1986, 1990–1991, 1996 | 689-44315-A0-00 | International Model |
Technical Specs
- Product Type
- Water Pump Gasket
- Installation
- Between water pump housing and lower unit
- Material
- Paper/Gasket Material
- Dimensions
- 10.0" L x 11.0" W x 0.2" H
- Other Technical Attributes
- OEM Replacement Part
What’s in the Box
- 1 x Gasket, Water Pump (689-44315-A0-00)
Installation Notes
- Disconnect the battery and ensure the engine is safely secured.
- Drain the gearcase oil from the lower unit.
- Remove the bolts securing the lower unit and carefully detach it from the engine's upper section.
- Unbolt and remove the water pump housing to expose the old gasket and impeller.
- Carefully scrape off the old gasket, ensuring both mating surfaces are completely clean and free of residue.
- Position the new water pump gasket on the lower unit mounting surface.
- Reinstall the water pump housing, impeller, and any related components.
- Tighten the housing bolts to the manufacturer's specified torque in a crisscross pattern.
- Reattach the lower unit to the engine and refill the gearcase with fresh oil.
- Reconnect the battery and test engine operation in water, checking for leaks and proper water flow.
Troubleshooting & FAQ
How do I know if this gasket fits my Yamaha outboard?
This gasket is for specific Yamaha 20, 25, and 30 HP 2-stroke models from 1984–1996. Review the "Engine & Model Compatibility" table and cross-reference your engine's model and year to confirm fitment. Do not rely on horsepower alone.
What are the symptoms of a failed water pump gasket?
Common signs include an engine that overheats at idle or low speeds, a weak or non-existent water stream from the "tell-tale" outlet, or visible water leaking from the seam between the lower unit and the upper casing.
How often should this gasket be replaced?
It is best practice to replace the water pump gasket whenever you service the impeller, typically every 100 hours of use or at least once per season, regardless of hours.
Can I reuse my old water pump gasket?
No. Gaskets are designed for a single use. They compress to create a seal and will not provide a reliable, leak-free seal if reused.
Is this an OEM part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Our parts are manufactured in an ISO 9002 facility and batch-inspected for consistency and quality.
How fast is shipping?
We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free for most orders, with expedited options available at checkout.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter an issue, contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. Please see our full policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
