Sherwood 15000K Impeller Kit – Fits Cummins, Mercruiser, StarPower (Replaces 15000 & G1503-01)

$56.75 $90.00

Shipping calculated at checkout.

Sherwood 15000K Impeller Kit – Fits Cummins, Mercruiser, StarPower (Replaces 15000 & G1503-01) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

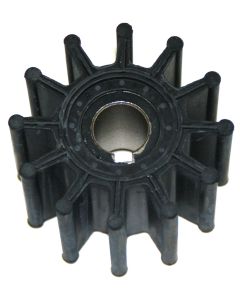

This genuine Sherwood 15000K Impeller Kit is designed for marine raw water pumps on various Cummins, Mercruiser, and StarPower engines. It is commonly found in Cummins 4B/6B series, Mercruiser 7.3L diesel, and StarPower inboard/stern drive models.

It provides a direct interchange for Sherwood 15000K, Jabsco 18327-0001-P, Johnson Pump 09-707B-1, and StayCoolPumps SCP-15000K.

Installation: Features a key drive for a secure shaft fit.
Material: Made of durable neoprene compound for reliable performance in raw water.
Complete Kit: Includes the impeller, o-ring, and gaskets needed for a standard replacement.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Sherwood	15000	Superseded by 15000K
Sherwood	G1503-01	Pump model part number
Sherwood	15000K	Primary replacement kit
Jabsco	18327-0001-P	Aftermarket cross-reference
Johnson Pump	09-707B-1	Aftermarket cross-reference
StayCoolPumps	SCP-15000K	Aftermarket cross-reference

Engine & Model Compatibility

Confirm your engine model and pump number in the tables below.

This impeller fits the following Sherwood pump models, which are often installed on the engine brands listed further below.

Brand	Model	Rated HP	Stroke	OEM Part No.	Notes
Sherwood	G151	Various	4-Stroke	15000K	Used in StarPower inboard engines
Sherwood	G155	Various	4-Stroke	15000K	Used in Mercruiser 7.3L diesel engines and StarPower stern drives
Sherwood	G157	Various	4-Stroke	15000K	Used in Marine Power engines
Sherwood	G1503-01	250	4-Stroke	15000K	Used in Cummins 4B Series
Sherwood	GC1-01	250	4-Stroke	15000K	Used in Cummins 6B Series
Sherwood	GC4	250	4-Stroke	15000K	Used in Cummins 6B 250HP/4B CEPC engines
Sherwood	GC5-01	250	4-Stroke	15000K	Used in Cummins 6B 250HP/4B CEPC engines
Sherwood	P1505	Various	4-Stroke	15000K	Engine cooling pump
Sherwood	P1505-01	Various	4-Stroke	15000K	Engine cooling pump

Compatible with these Cummins engine models. Verify your pump model to ensure correct fitment.

Brand	Model	Rated HP	Stroke	OEM Part No.	Notes
Cummins	4B Series	250	4-Stroke	3349340	Uses Sherwood G1503-01 pump
Cummins	6B Series	250	4-Stroke	3912962	Uses Sherwood GC1-01 pump
Cummins	6B/4B CEPC	250	4-Stroke	3920298/3927684	Uses Sherwood GC4 & GC5-01 pumps

Technical Specs

Product Type: Marine Cooling Impeller Kit
Material: Neoprene
Number of Blades: 12
Drive Type: Key Drive
Impeller Diameter: 65mm (2-9/16")
Impeller Width: 51mm (2")
Shaft Diameter: 15.9mm (5/8")
Keyway: 4.8mm (3/16") Through Key
Maximum Temperature: 54°C (130°F)
Color: Black
Box Dimensions: 6.5" L x 5.0" W x 6.5" H

What’s in the Box

1 x 15000 Impeller
1 x 12231 O-Ring
1 x Gasket Set
1 x Technical Guide

Installation Notes

Close the raw water intake seacock before starting.
Loosen and remove the screws from the raw water pump cover plate.
Take off the cover plate and old gasket/O-ring. Note their orientation.
Carefully slide or pry the old impeller out of the pump housing. Impeller pullers are recommended.
Clean the interior of the pump housing and the cover plate sealing surface.
Inspect the housing for scoring or cracks. Significant wear may require pump replacement.
Lightly lubricate the new impeller and housing interior with a water-based lubricant or glycerine.
Install the new impeller by squeezing the blades together and rotating it into the housing until the key aligns with the shaft keyway.
Place the new gasket or O-ring onto the pump body.
Re-install the cover plate and tighten the screws evenly in a crisscross pattern. Do not overtighten.
Open the raw water seacock.
Start the engine and immediately check for water flow at the exhaust and for any leaks at the pump cover.

Troubleshooting & FAQ

How do I confirm this impeller fits my specific engine?

This impeller kit fits a range of Cummins, Mercruiser, and StarPower models. The most reliable method is to check our compatibility tables and cross-reference your Sherwood pump model number (e.g., G151, G155, GC4). Always verify against your old part's dimensions and drive type before installation.

What are the signs of a worn or failing impeller?

Common signs include a rise in engine operating temperature, reduced water flow from the exhaust, visible cracks or missing blades on the impeller itself, and a stiff or brittle texture when flexed.

How often should this impeller be replaced?

For preventative maintenance and engine protection, we recommend inspecting your impeller annually and replacing it every 1-2 years or every 100-200 running hours, whichever occurs first. Service interval may vary based on operating conditions like water quality (sandy/silty) and average running temperatures.

Can I run the pump dry with this impeller?

No. Neoprene impellers require water for lubrication. Running the pump dry for even a few seconds can cause the impeller to overheat and disintegrate, potentially leading to pump damage and engine overheating.

Is this an OEM part?

This listing is for a high-quality aftermarket replacement, not an OEM component. It is engineered to meet or exceed OEM specifications for fit, material, and performance and is produced in an ISO 9002 certified facility with rigorous quality control.

How much is shipping and how long does it take?

We offer fast worldwide shipping, with most orders arriving in 5–15 days. Standard shipping is free. If available for your location, expedited shipping options will be presented at checkout.

What is the warranty and return policy?

This product is covered by a 1-year warranty against manufacturing defects under normal operating conditions. If you encounter an issue, contact our support team with your order details. Returns are accepted for unused items in their original condition within our standard return window. See our full policy page or contact us for instructions.

Safety & Important Info

Verify images and specifications against your original part before purchase. If anything differs—even if your model is listed as compatible—do not purchase.
This is an aftermarket replacement part, not an original equipment manufacturer (OEM) component.
Professional installation is recommended for safety and optimal performance.
