Water Pump Impeller – Fits Mercury/Mariner 3.5-6 HP Outboards (Repl...
Product Details

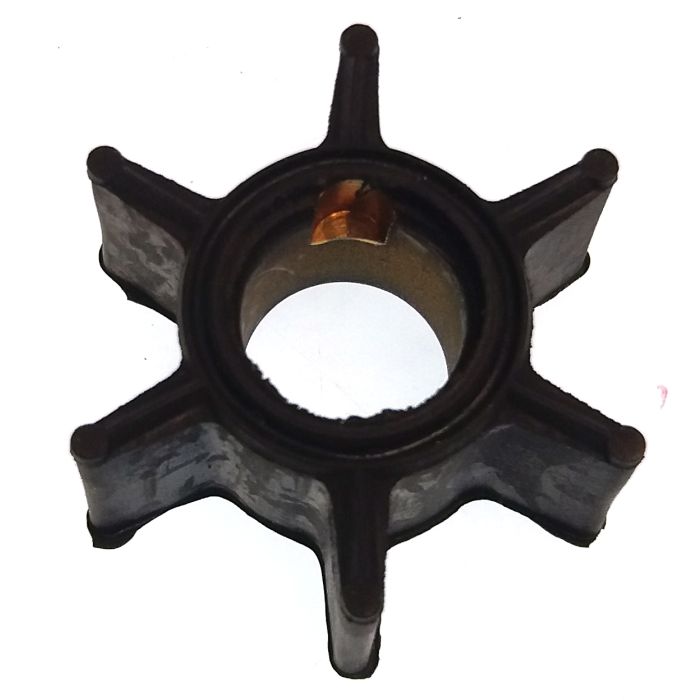

This Water Pump Impeller – Fits Mercury/Mariner 3.5-6 HP Outboards (Replaces 47-22748, 18-3012) is an aftermarket replacement part for a range of Mercury 2-stroke outboards from the 1950s to the 1980s, including 3.5, 3.9, 5, and 6 HP models, as well as vintage "Mark" series motors. It ensures your engine’s cooling system functions correctly, preventing overheating.
It serves as a direct interchange for Mercury/Quicksilver 47-22748, Sierra 18-3012, Mallory 9-45308, and Johnson/Evinrude/OMC 508388/775465.
- Engineered as a direct OEM-style replacement for simple installation.
- Constructed from durable neoprene with a brass hub for reliable service.
- Includes a 1-year factory warranty against manufacturing defects.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury/Quicksilver | 47-22748 |
| Sierra | 18-3012 |
| Mallory | 9-45308 |
| Johnson/Evinrude/OMC | 508388/775465 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part primarily fits vintage Mercury and Mariner outboards. Please check your serial number range carefully.
Cross-references indicate this part may also fit certain Johnson/Evinrude models, but specific application data is not available. Verify by part number.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | 3.5 HP | 3.5 | 2-Stroke | 358136-6202172 | 47-22748 | |
| Mercury | 3.9 HP | 3.9 | 2-Stroke | 1655013-2498135 | 47-22748 | |
| Mercury | 5 HP | 5 | 2-Stroke | 338136-574128 | 47-22748 | |
| Mercury | 6 HP | 6 | 2-Stroke | 888005-1916138 | 47-22748 | |
| Mercury | Mark 5, KF5, KF3 | 2-Stroke | All | 47-22748 | Vintage series | |
| Mercury | Mark 6, 6A | 2-Stroke | All | 47-22748 | Vintage series | |
| Mercury | 110 | 2-Stroke | 1470349-1865778 | 47-22748 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM replacement
- Fuel Type
- Gasoline
- Housing Material
- Neoprene with brass hub
- Product Dimensions
- Height: 4.0; Width: 5.13; Length: 0.5
- Weight
- 13 g (0.81 oz)
- Number of Blades
- 6
What’s in the Box
- 1 x Water Pump Impeller (Replaces 47-22748)
Installation Notes
- Disconnect the spark plug wire(s) for safety.
- Unbolt and remove the lower unit (gearcase) from the outboard.
- Locate and unbolt the water pump housing.
- Remove the old impeller, noting the direction of the vanes.
- Clean the inside of the pump housing and inspect it for wear or damage.
- Apply a lubricant (silicone grease, glycerine, or dish soap) to the inside of the housing and to the new impeller.
- Install the new impeller, rotating the driveshaft in the normal direction of rotation to bend the vanes correctly.
- Reassemble the water pump housing, ensuring a proper seal.
- Reinstall the lower unit and test the engine in water, confirming a steady stream from the tell-tale outlet.
Troubleshooting & FAQ
Which engines does this impeller fit?
This impeller is designed for a range of vintage Mercury and Mariner 2-stroke outboards, including 3.5, 3.9, 5, and 6 HP models, as well as Mark 5, Mark 6, and 110 series engines. Always confirm fitment using the serial number ranges provided in the compatibility list.
How do I know if my water pump impeller is failing?
Common signs of a worn or failed impeller include a weak or non-existent stream of water from the "tell-tale" outlet, an engine temperature alarm, or the engine overheating. Reduced engine performance can also be a symptom.
How often should I replace my impeller?
For preventative maintenance, it is recommended to inspect your impeller annually and replace it every 1-2 years, depending on usage (hours) and water conditions (saltwater, sandy, or silty water may require more frequent changes).
What lubricant should I use for installation?
Lubricate the impeller and pump housing with silicone grease, glycerine, or a small amount of dish soap. This prevents damage to the impeller during the initial dry start-up.
Is this an OEM part?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
About Sea Sierra
- Pro-Grade Standards — We supply marine parts engineered to OEM-level tolerances and tested for real-world conditions.
- Fast Global Fulfillment — Free standard delivery to most regions in 5–15 days.
- Manufacturer-Direct Value — Fair pricing without compromising on materials or QC.
